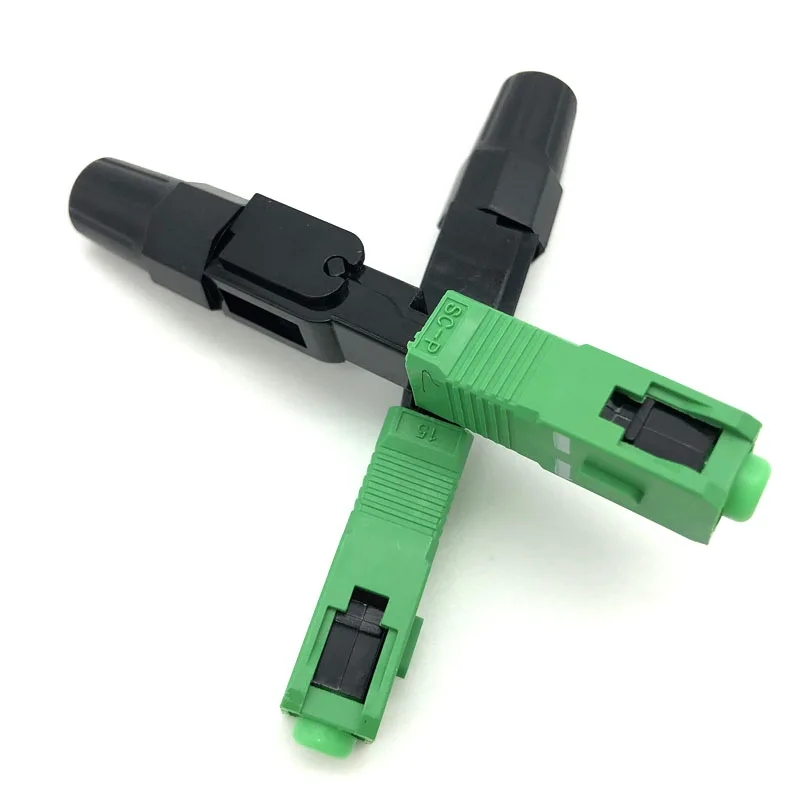

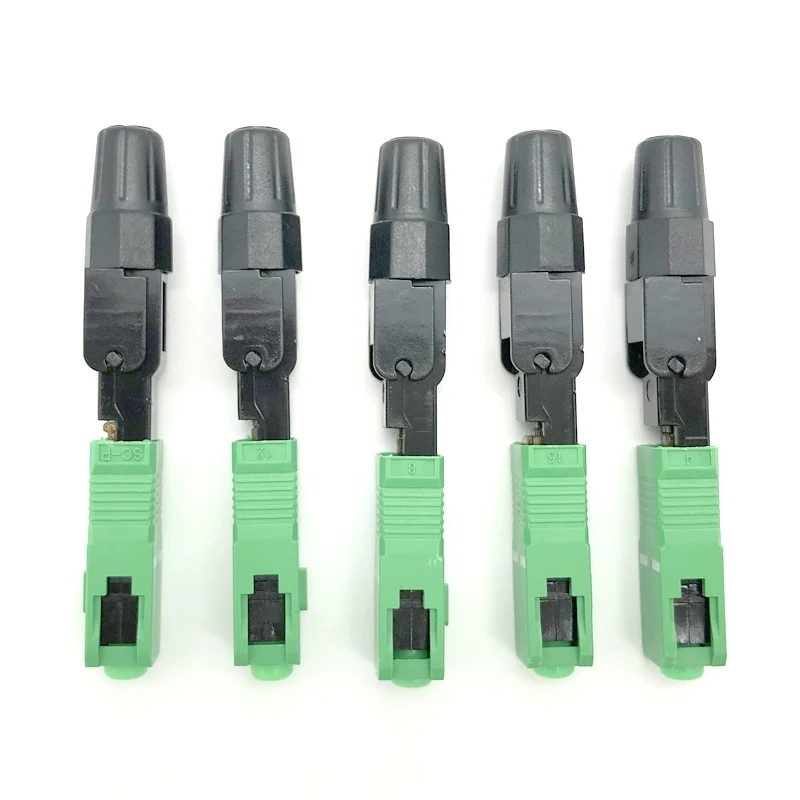

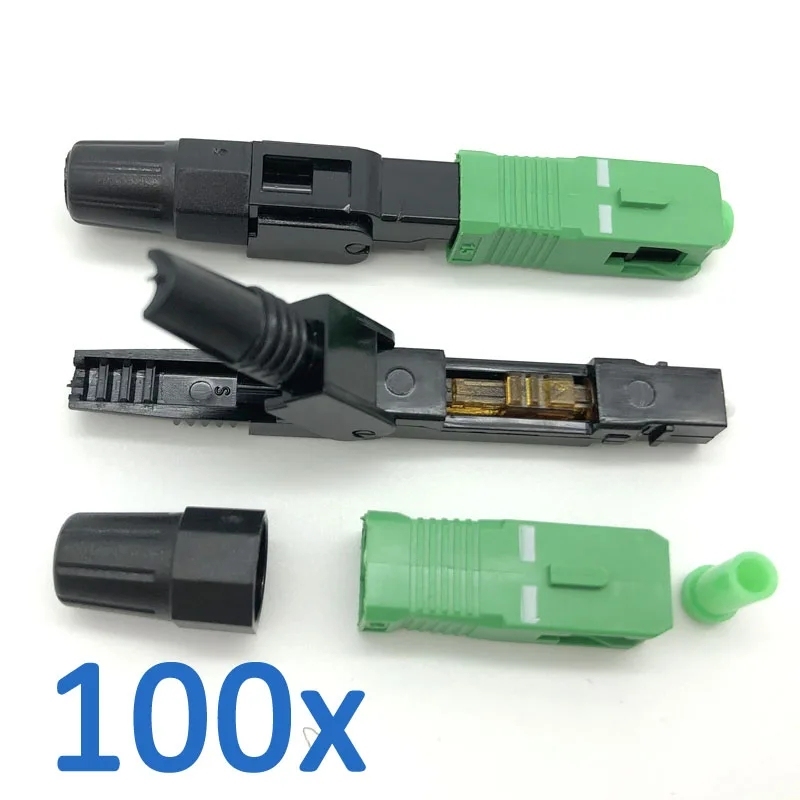

100 pieces Optical Fiber SC APC Fast Connector Quick Connect Cold Connection Field Assembly Single Mode
SC/APC Field Fast Connector
for 2x3mm Drop Cable
Quantity 100 pieces
The optical fiber field fast assembly connector is used to connect 2x3mm flat drop cable to ONU/ONT easily and quickly. It also can be used in distribution box to lead a drop cable from splitter or adapters panel.
|
Fiber Type |
ITU G657A, G657B, G652D |
|
Fiber Cladding |
125um |
|
Fiber Coating |
250um |
|
Fiber Cable |
2x3mm Flat Drop Cable |
|
Reuse |
5 times |
|
APC Angle |
8 ±0.3 |
|
Insertion Loss |
≤0.5dBm |
|
Typical Insertion Loss |
0.3dBm |
|
Tension |
40N |
|
Mechanical Durability |
≤0.3dB |
|
Tension Strength |
≤0.3dB(20N) |
|
Working Temperature |
-40 to +85 oC |
Standard
|
Apperance |
GR-326-4.2.3 |
|
Insertion Loss |
GR-326-4.2.1 |
|
Return Loss |
GR-326-4.2.1 |
|
Thermal Age |
GR-326-4.4.2.1 |
|
Thermal Cycle |
GR-326-4.4.2.2 |
|
Humidity Agent |
GR-326-4.4.2.3 |
|
Impact |
GR-326-4.4.3.3 |
|
Vibration |
GR-326-4.4.3.1 |
|
Durability |
GR-326-4.4.3.8 |
