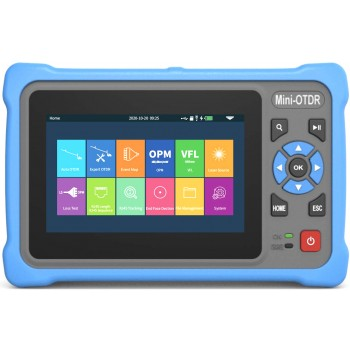

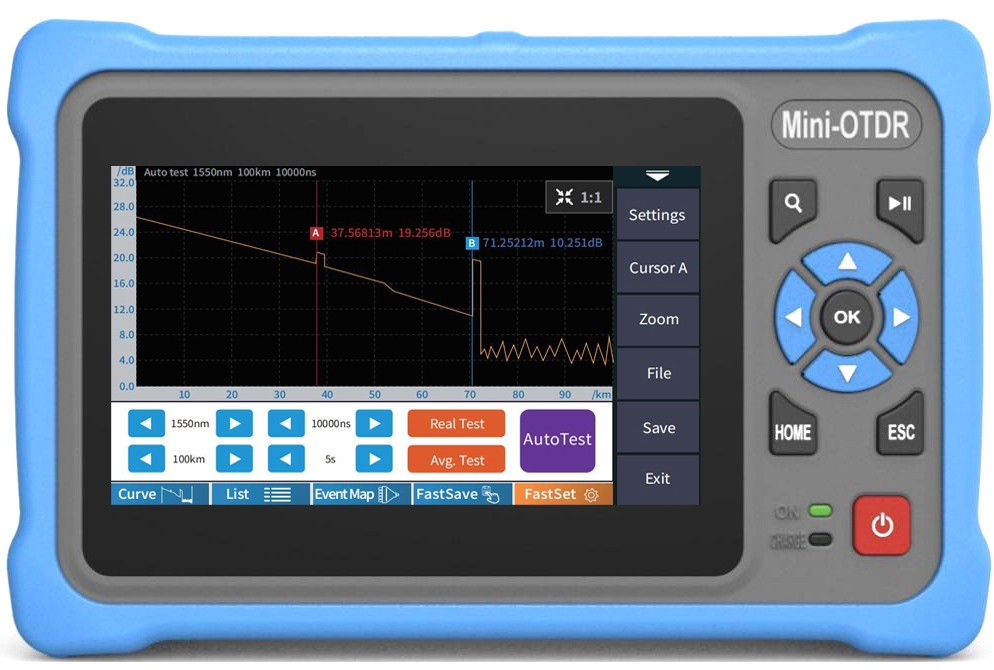

1) Auto OTDR 2) Expert OTDR 3) Event Map 4) Optical Power Meter 5) Optical Light Source 6) Insertion Loss 7) Visual Fault Locator 8) Rj45 Cable Tracking 9) Rj45 Cable Sequence 10) Rj45 Cable Length 11) Endface Inspector 12) LED Light
Features

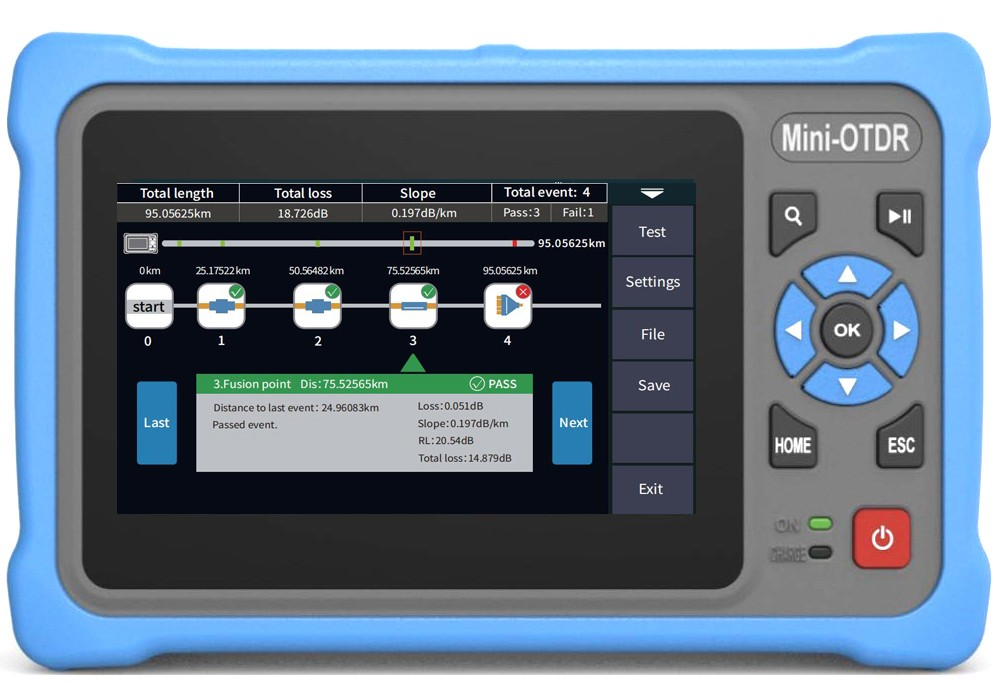

1) Useful light-weight OTDR 2) Combines all essential fiber tests in one handheld with OPM, OLS, VFL, etc 3) Easy to understand OTDR analysis with event list 4) PON network verification or troubleshooting 5) Upgrades easily in the field 6) All-day battery life

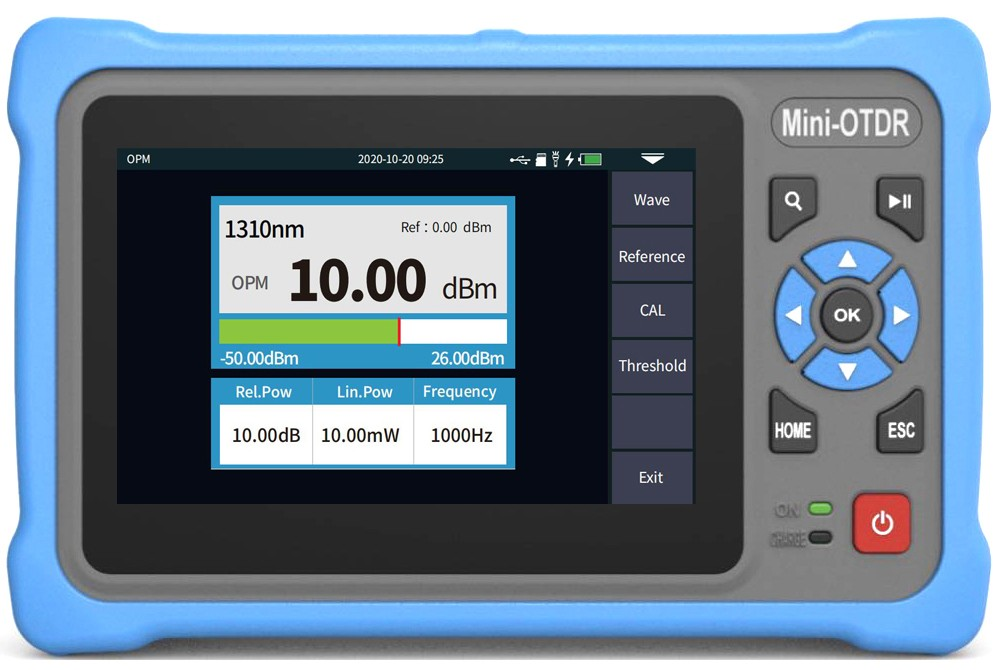

Model#
980MAS-S0
980MAS-S1
980MAS-S2
980MAS-P1

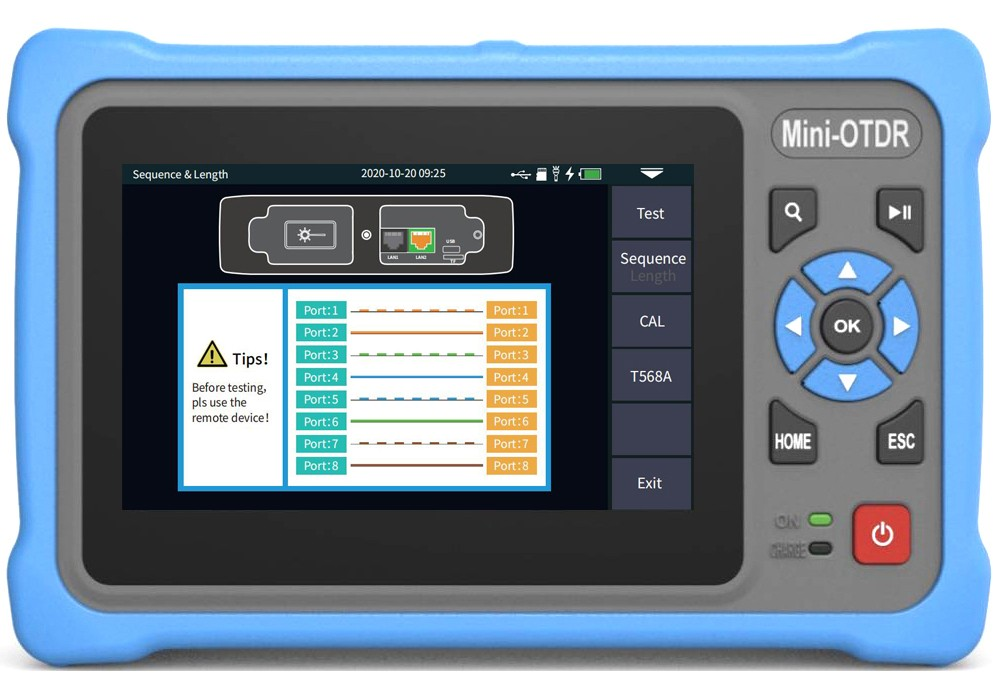

980MAS-P2
Wavelength
1550nm
1310nm & 1550nm
1310nm & 1550nm
1310nm
1610nm
Dynamic Range
24dB
24/22dB
26/24dB
26dB
22dB
Testing Range
3m to 80km
3m to 80km
3m to 100km
3m to 100km
3m to 60km
OTDR
√
√
√
√
√
Power Meter
√
√
√
√
√
Light Source
√
√
√
√
√
Visual Fault Locator
√
√
√
√
√
Insertion Loss Testing
√
√
√
√
√
Event Map
√
√
√
√
√
RJ45 Sequence
√
√
√
√
√
RJ45 Length
√
√
√
√
√
Rj45 Digital Tracker
√
√
√
√
√
In-service Testing
x
x
x
√
√
980MAS-P1 & 980MAS-P2 are both with Wavelength Filter. In-service signal power <-5dBm @ 980MAS-P1, <0dBm@980MAS-P2
The Menu Languages - English - Russian - Korean - French - Spanish - Vietnam
The kit includes, - OTDR - FC/SC Connector - User Manual - PC Software - Charging Adapter - RJ45 Cable Tracker - RJ45 Remote Unit - USB Cable - Carrying Bag - Certificate of Calibrate
