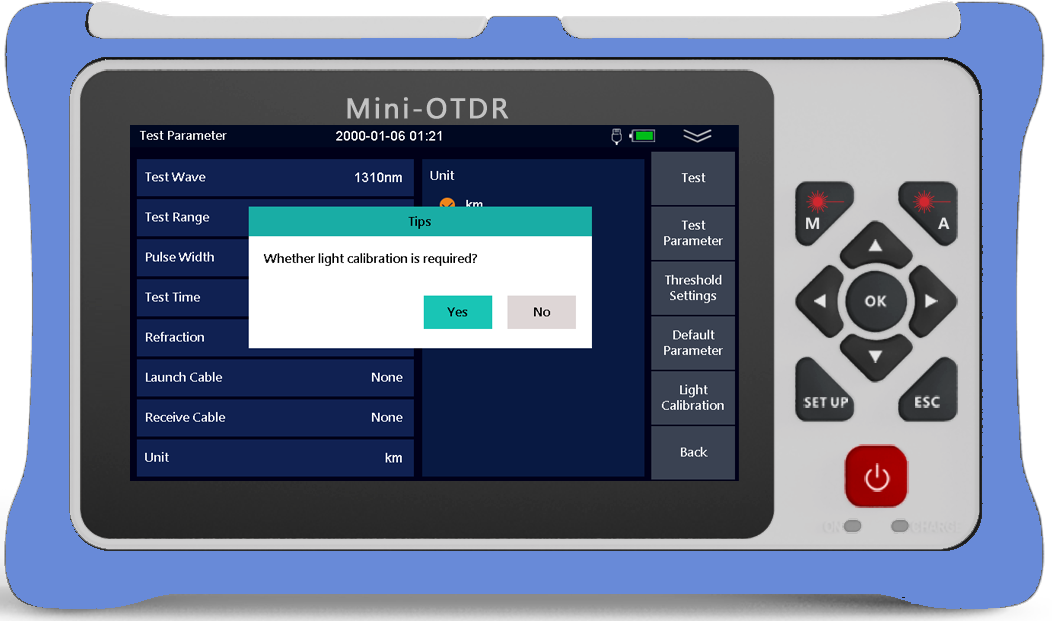

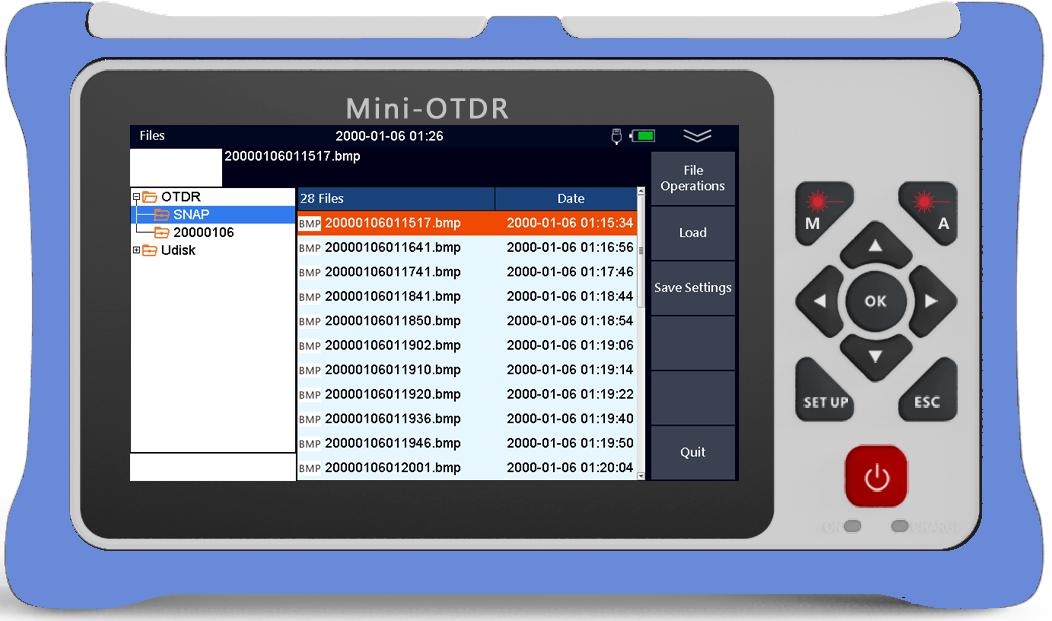

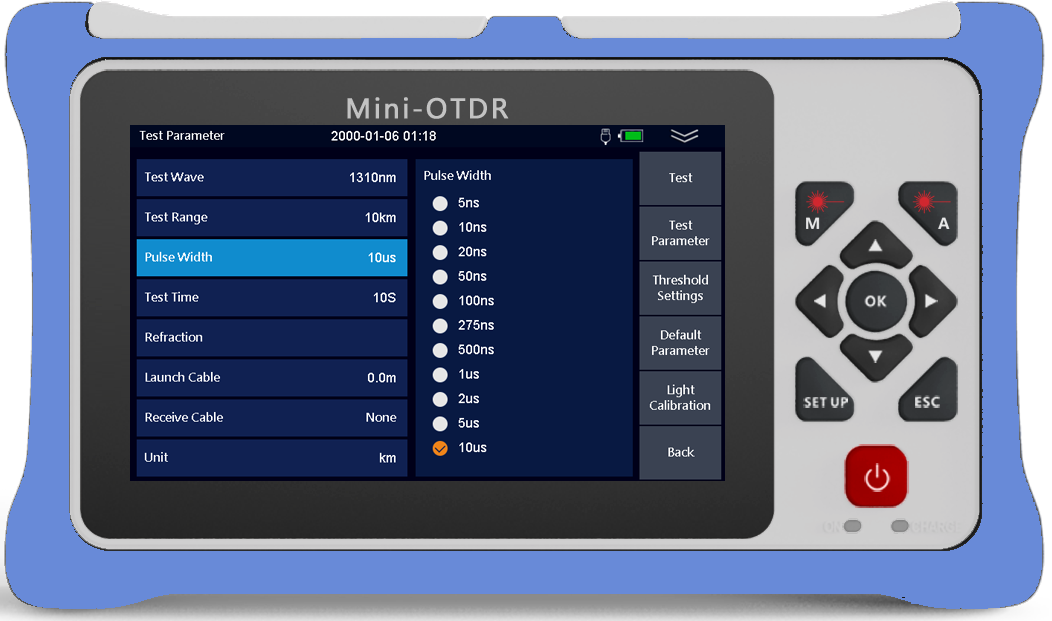

980RTC HANDY MINI OTDR Reflectometer with VFL OPM OLS
$239.00 USD
$269.00 USD
Save $30.00 USD
Shipping calculated at checkout.
Quantity
Inventory: 239 remaining available
980RTC HANDY MINI OTDR
All in 1 Device, Pocket-sized, Multi Functions, Easy-to-use,
and Affordable for Technicians at Any Level
Features
- Single, dual, and triple wavelength light weight OTDR
- Combines all essential fiber tests in one handheld with OPM, OLS, VFL, etc

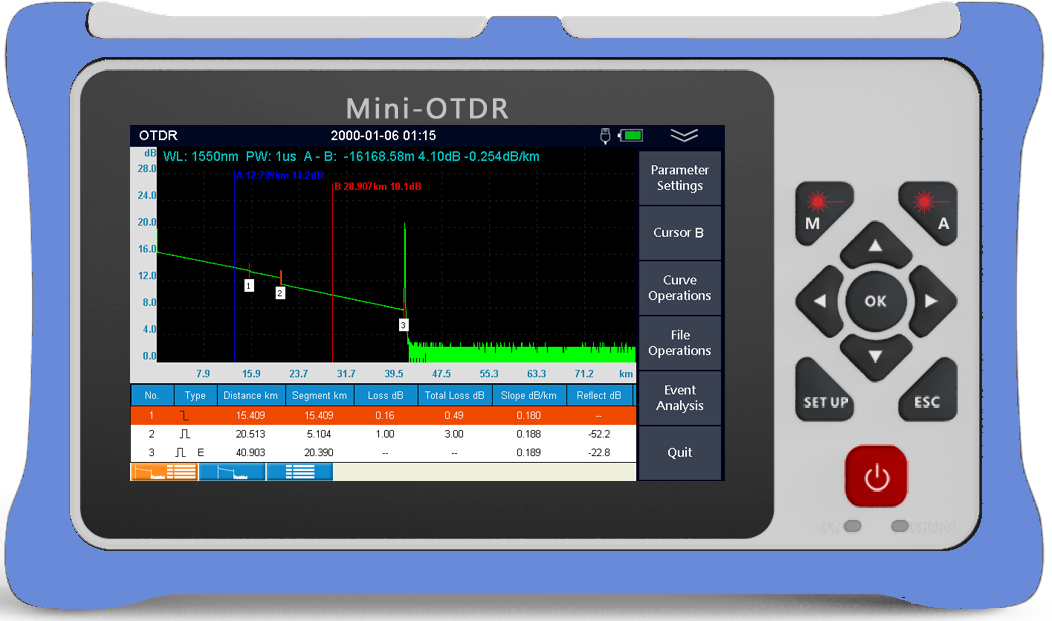

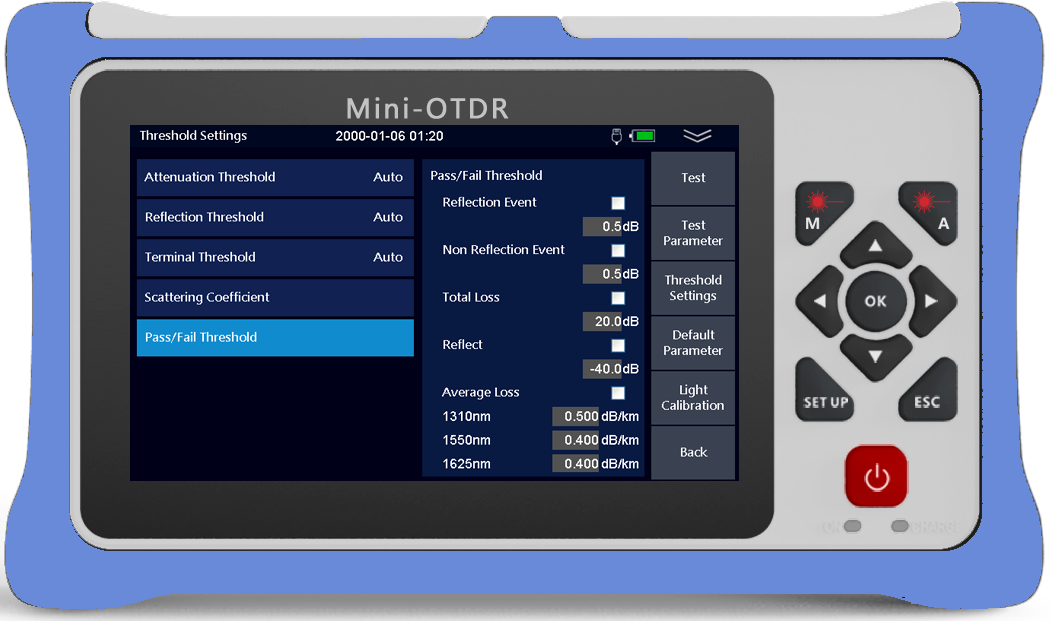

- Easy to understand OTDR analysis with event map result view and pass/fail indications
- Access network or point-to-point network verification or troubleshooting Upgrades easily in the field
- All-day battery life

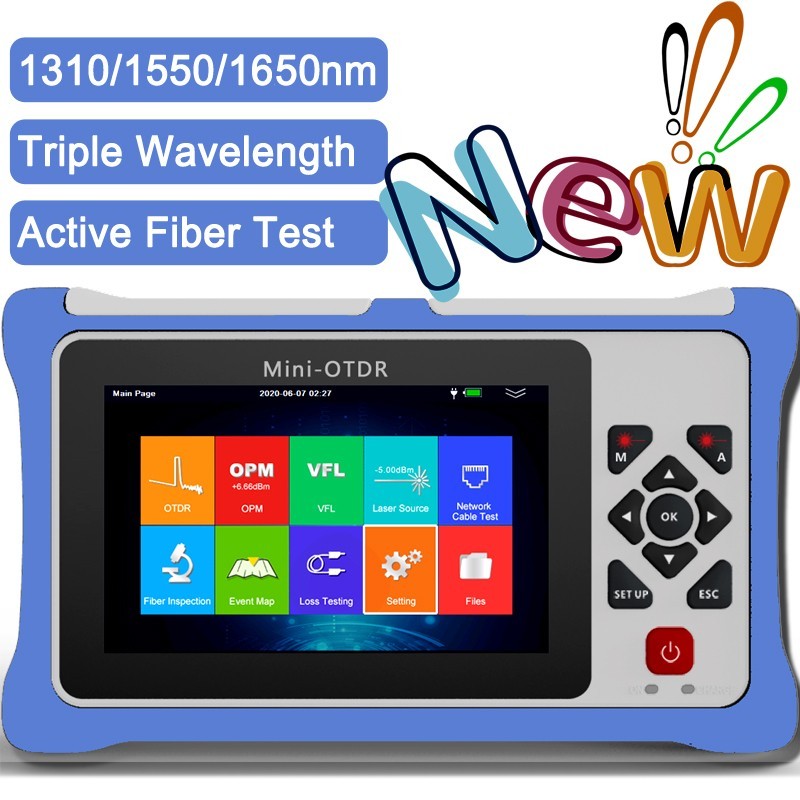

9 Function in One Device
- OTDR

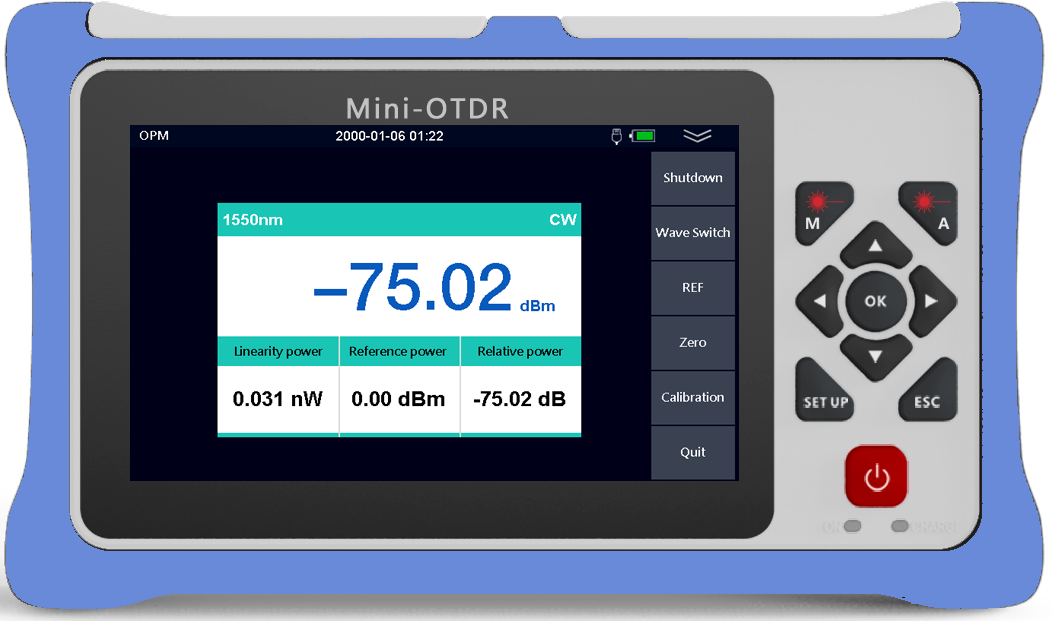

- Optical Power Meter

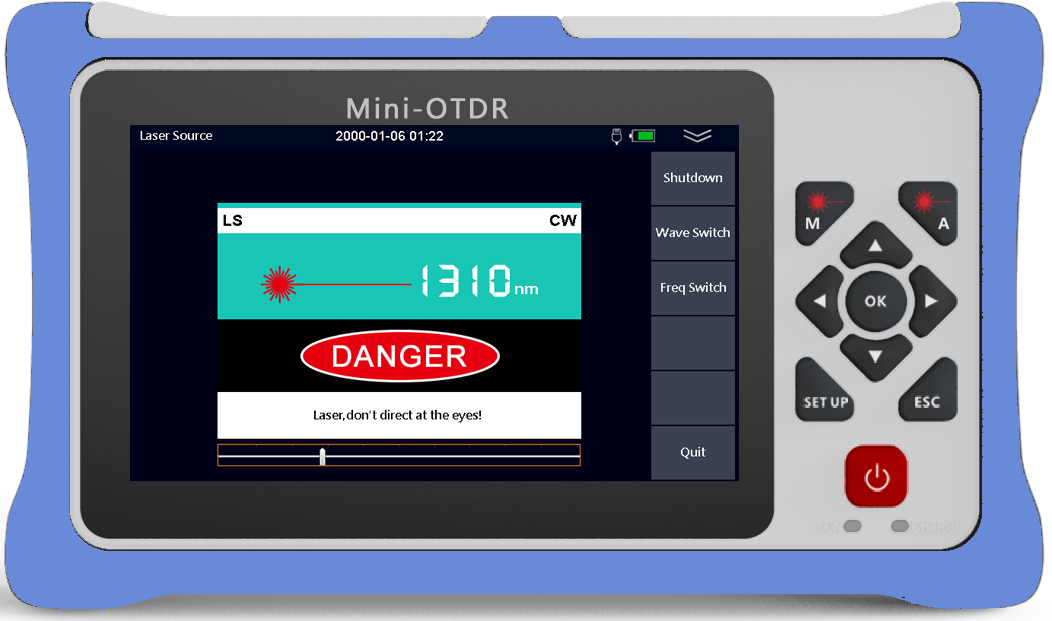

- Optical Light Source

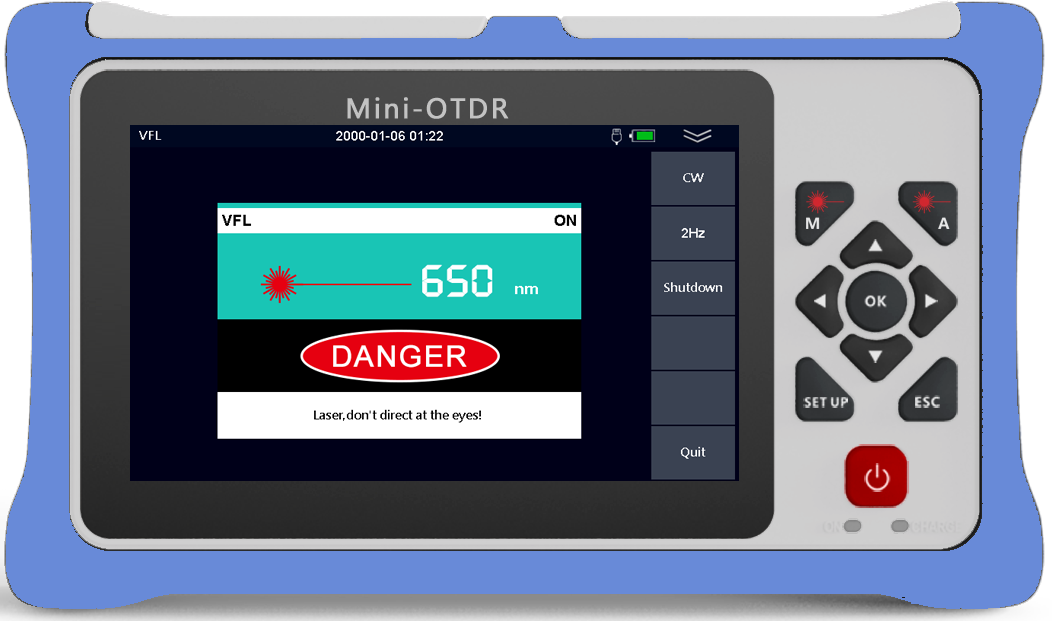

- Visual Fault Locator

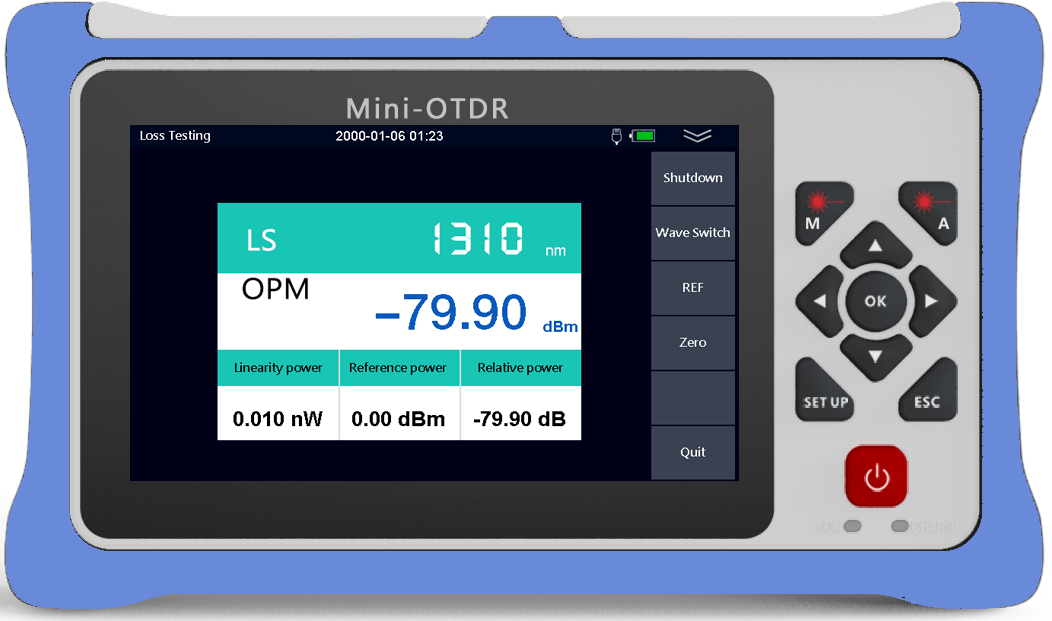

- Insertion Loss Testing

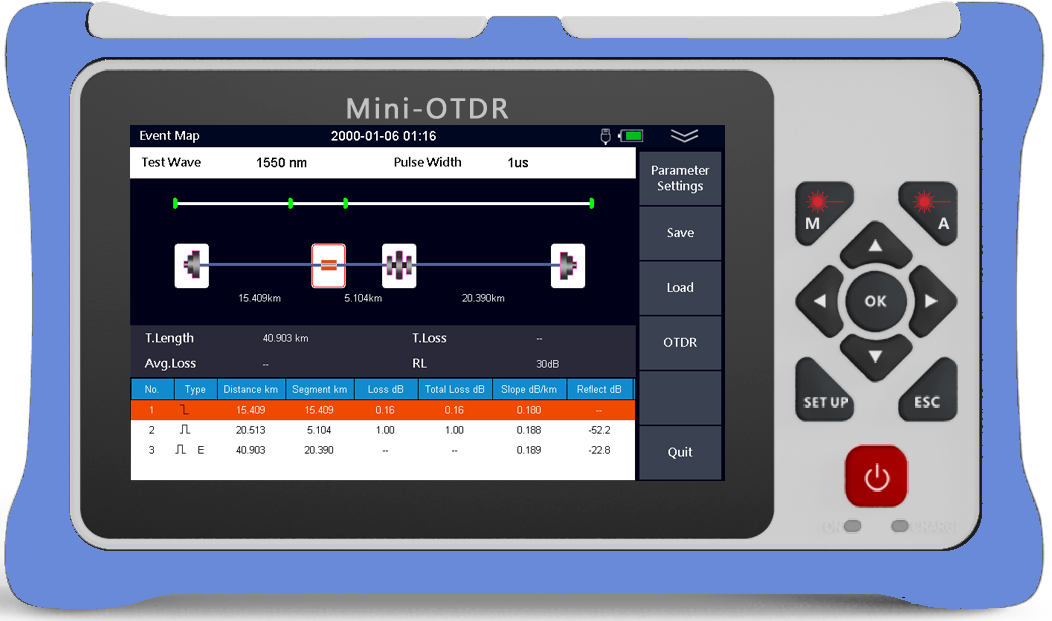

- Event Map
- LED Light

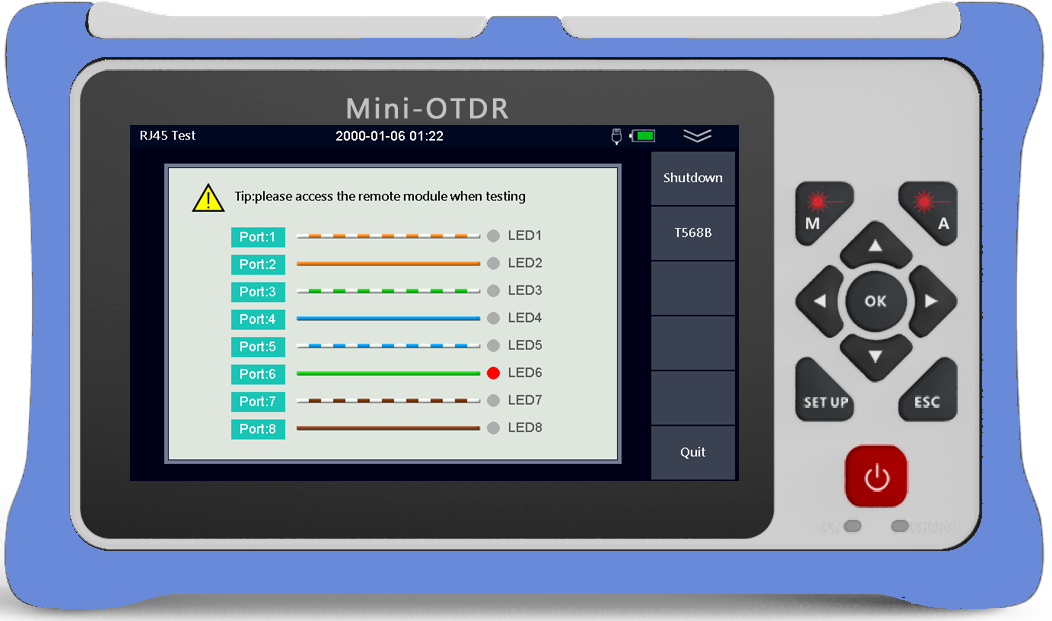

- RJ45 Cable Sequence

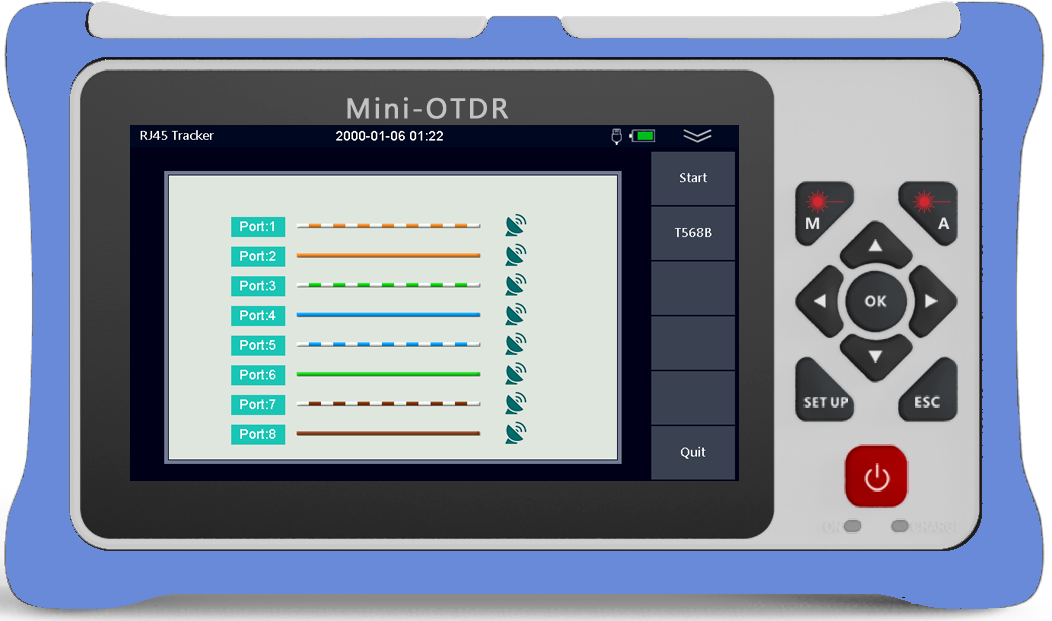

- RJ45 Cable Tracker
* Bluetooth is optional
* Bluetooth is optional
| Model | 980RTC-D26 | 980RTC-D24SF | 980RTC-A26 | 980RTC-B26 | 980RTC | 980RTC-T3 | 980RTC-M24 |
| Wavelength | 1310/1550nm | 1550nm | 1625nm | 1650nm | 1310/1550/1625nm | 1310/1550/1650nm | 850/1300nm |
| Dynamic Range | 26/24dB | 24dB | 26dB | 26dB | 26/24/24dB | 24/22/22dB | 24/22dB |

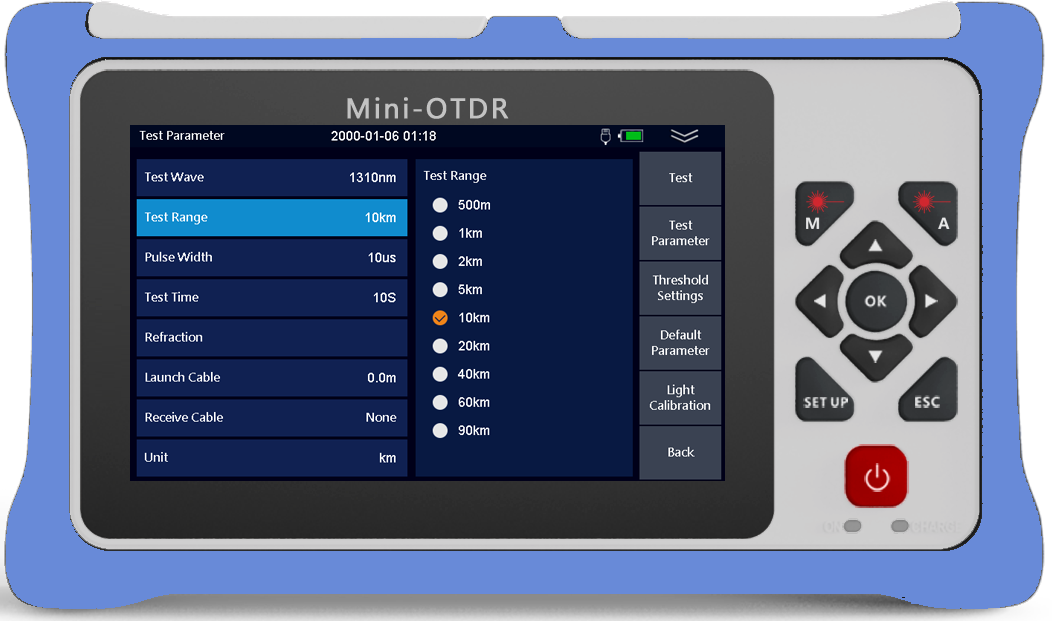

| Testing Range | 3m to 90km | 3m to 70km | 3m to 90km | 3m to 90km | 3m to 90km | 3m to 90km | 3m to 70km |
| OTDR | √ | √ | √ | √ | √ | √ | √ |
| Event Map | √ | √ | √ | √ | √ | √ | √ |
| Power Meter | √ | √ | √ | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ | √ | √ | √ |
| VFL | √ | √ | √ | √ | √ | √ | √ |
| Loss Test | √ | √ | √ | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ | √ | √ | √ |
| RJ45 Sequence | √ | √ | √ | √ | √ | √ | √ |
| RJ45 Sequence | √ | √ | √ | √ | √ | √ | √ |
| 1490nm Online | x | √ | √ | √ | √ | √ | x |
| 1490nm Online | x | x | √ | √ | √ | √ | x |
| 1610nm Online | x | x | x | √ | √ | √ | x |
Note: 980RTC-A26 is with Filter for Online Testing even though 1490/1550nm Light is in Fiber Cable
980RTC-B26 is with Filter for Online Testing even though1490/1550/1610nm light is in Fiber Cable
980RTC is with Filter for Online Testing even though 1490/15501610nm Light is in Fiber Cable
The Kit Includes,
- OTDR
- FC/SC Connector
- OTDRviewer Software
- Power Charging Adapter
- USB Cable
- Carrying Bag
- User Manual
- Certificate of Calibrate
- RJ45 Signal Receiver(optional)
The Menu Languages
- English
- Russian
- Spanish
- French
- Korean
- Thailand

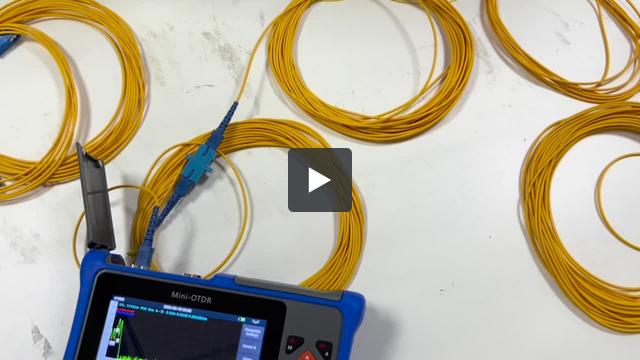

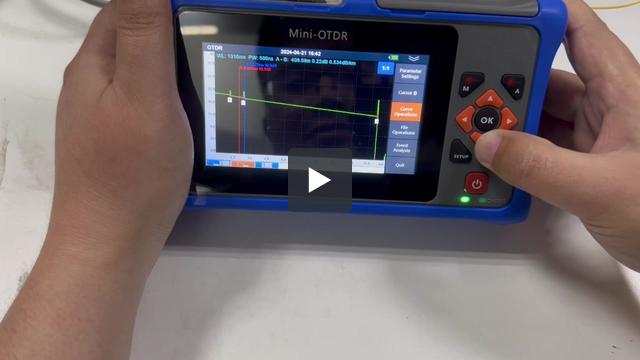

980RTC OTDR Operation Demo
980RTC Short Cable Test
OTDR 980RTC Dead zone
