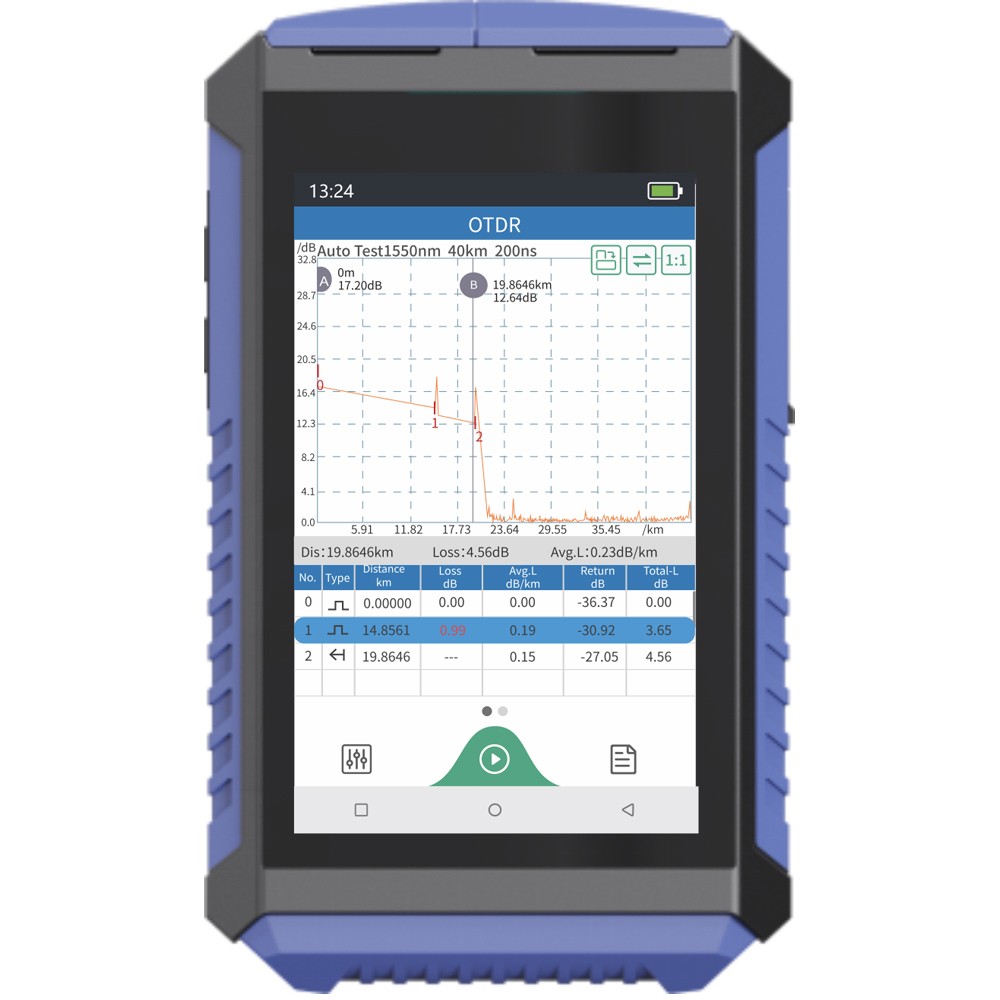

980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
$269.00 USD
$299.00 USD
Save $30.00 USD
Shipping calculated at checkout.
Quantity
Inventory: 398 remaining available
980TEK OTDR
High Precision, Android UI, Multi Touch,and Ultra-stable for any Cable Testing Situations
| Model | 980TEK-D26 | 980TEK-P24 | 980TEK-A24 | 980TEK-B24 |
| Wavelength | 1310/1550nm | 1610nm | 1625nm | 1650nm |
| Dynamic Range | 26/24dB | 24dB | 24dB | 24dB |
| Testing Range | 3m to 100km | 3m to 100km | 3m to 100km | 3m to 100km |
| OTDR | √ | √ | √ | √ |
| Event Map | √ | √ | √ | √ |
| Power Meter | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ |
| Visual Fault Locator | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ |
| RJ45 Cable Sequence | √ | √ | √ | √ |
| RJ45 Cable Tracking | √ | √ | √ | √ |
| Bluetooth* | √ | √ | √ | √ |
| 1490nm Online | x | √ | √ | √ |
| 1550nm Online | x | √ | √ | √ |
| 1610nm Online | x | x | √ | √ |
* Bluetooth function is optional
Note: -P24(1610nm) can test the fiber with1310/1490/1550nm signal in (power <0dBm)
-A24(1625nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <0dBm)
-B24(1650nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <5dBm)

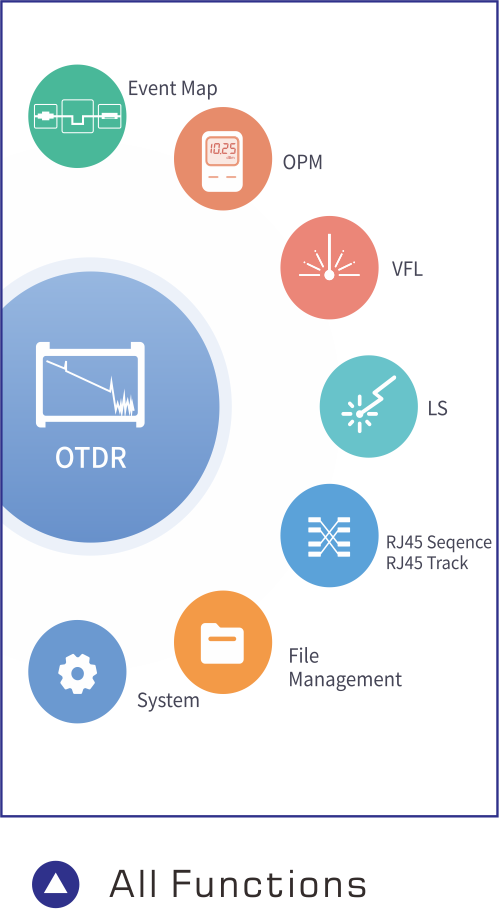

9-in-1 Device

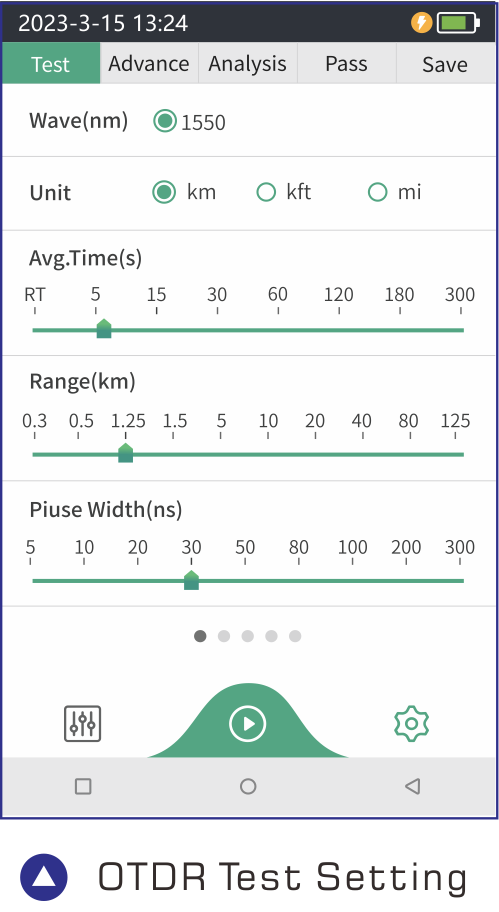

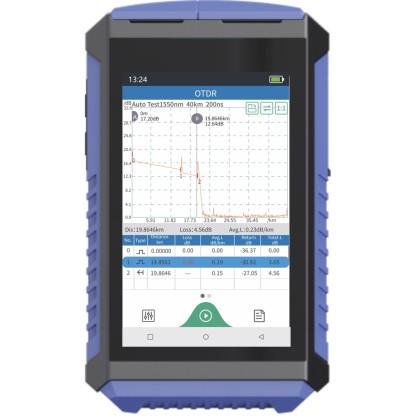

- OTDR

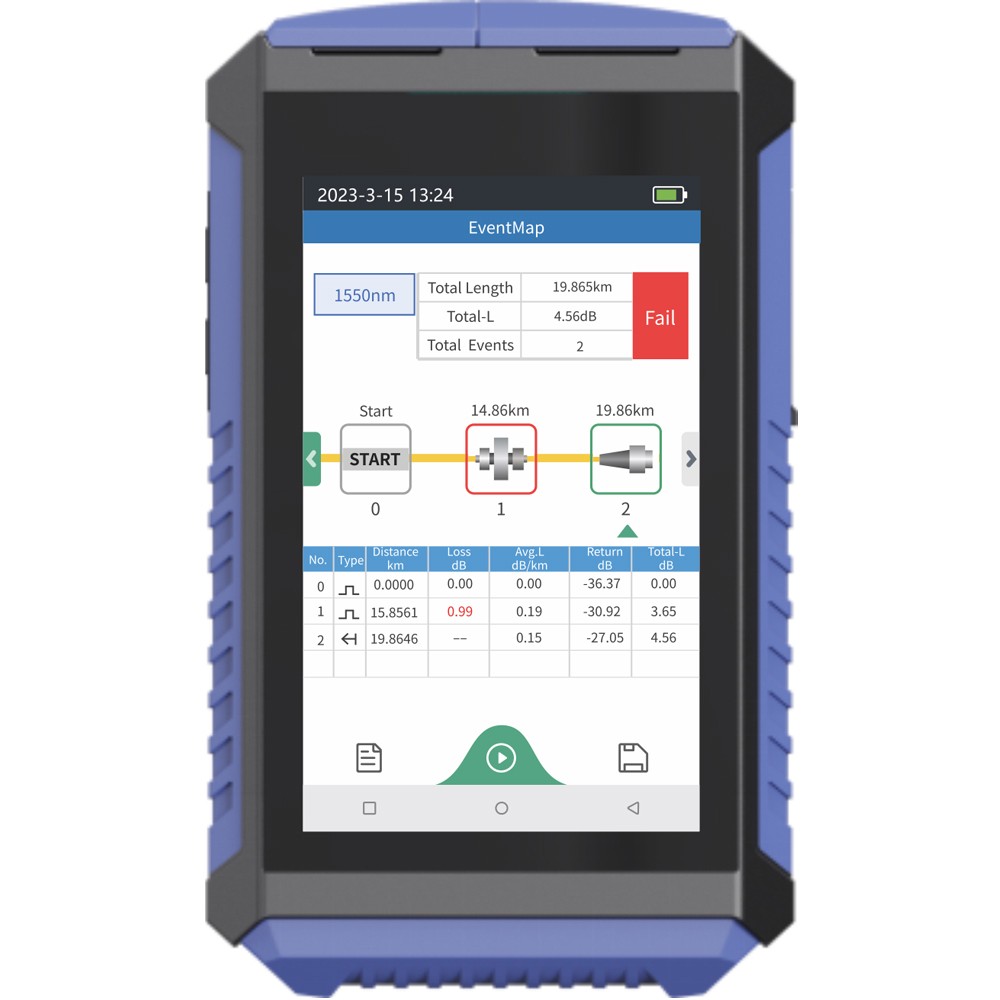

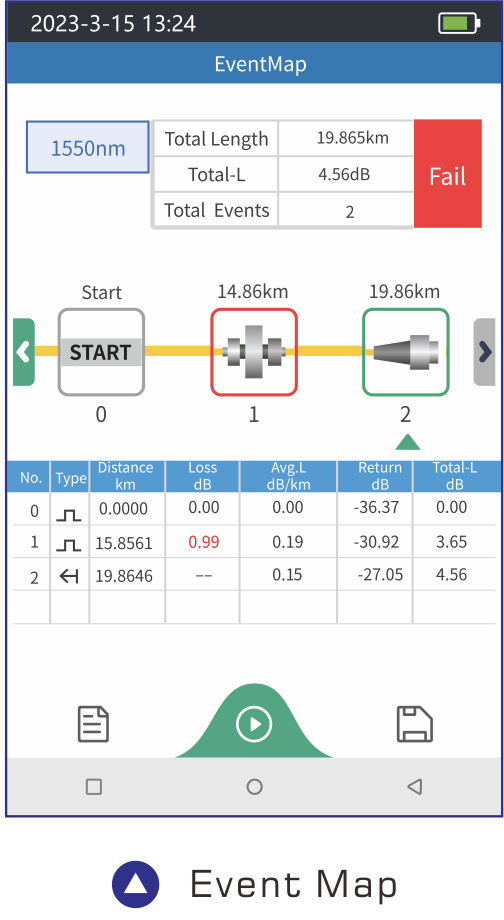

- Event Map

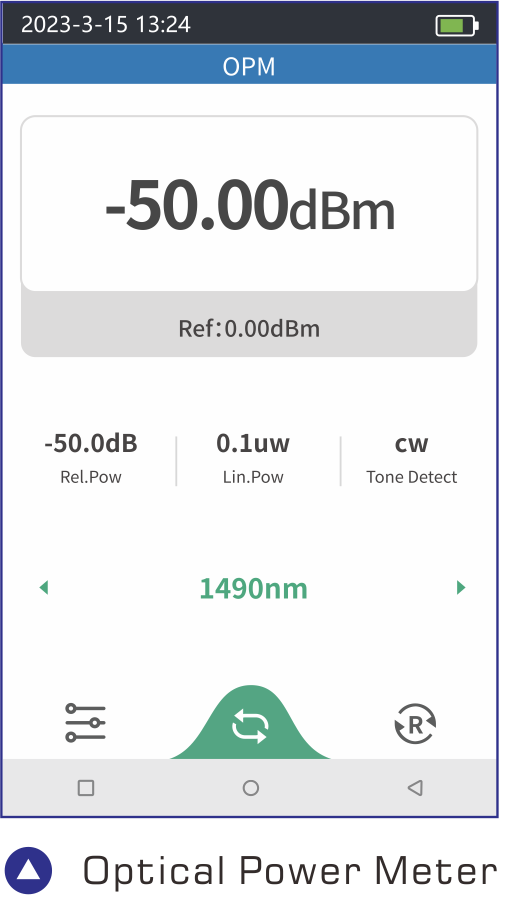

- Optical Power Meter

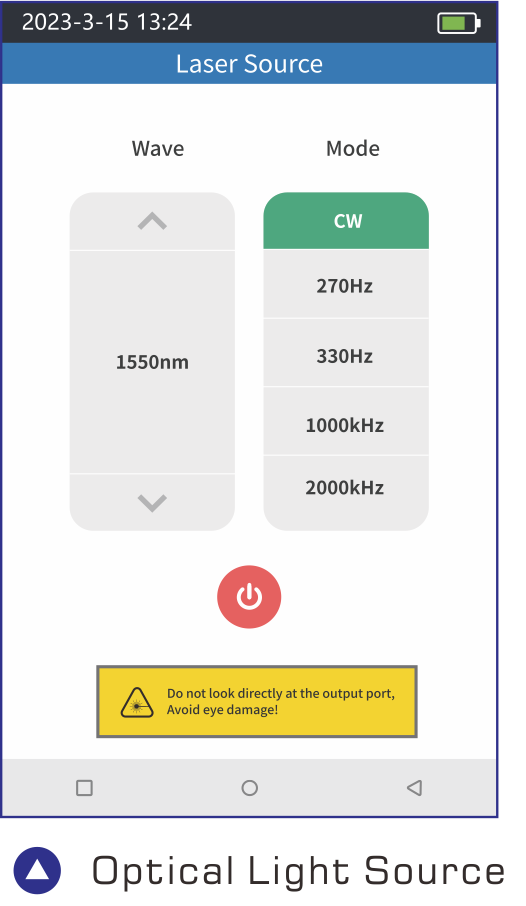

- Optical Light Source

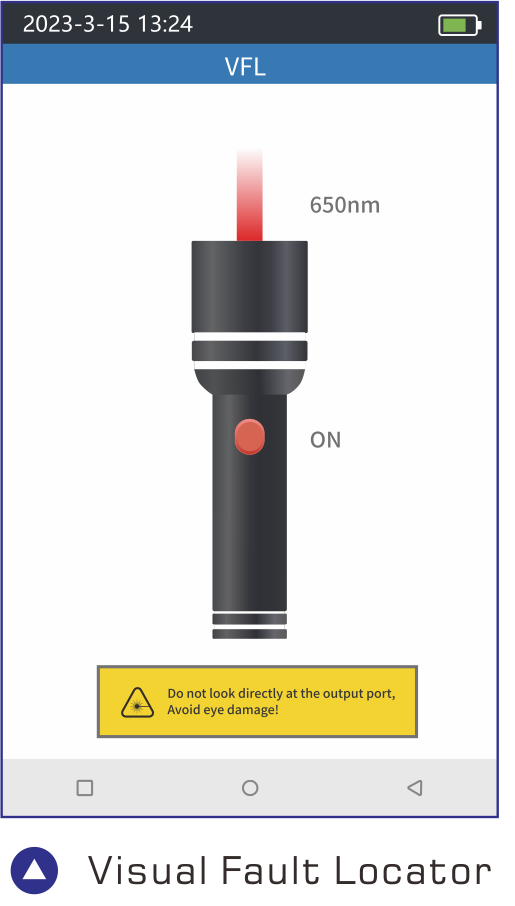

- Visual Fault Locator
- RJ45 Cable Tracking
- RJ45 Cable Sequence
- LED Light
- Bluetooth

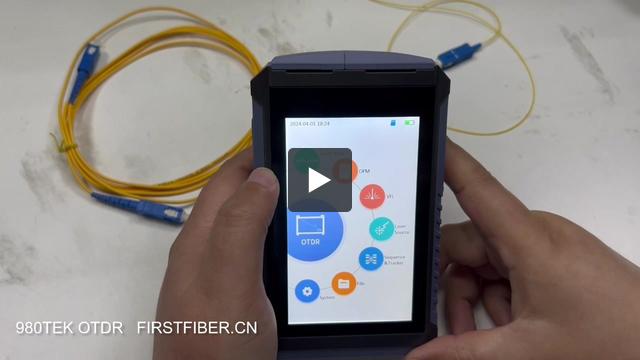

980TEK OTDR Operation
9-in-1 Device
- OTDR
- Event Map
- Optical Power Meter
- Optical Light Source
- Visual Fault Locator
- RJ45 Cable Tracking
- RJ45 Cable Sequence
- LED Light
- Bluetooth
The Kit Includes:
> OTDR, User Manual
> TF Card
> OTDRviewer Software
> Power Charging Adapter
> USB Cord
> Carrying Case
> Certificate of Calibrate
980TEK OTDR Operation
