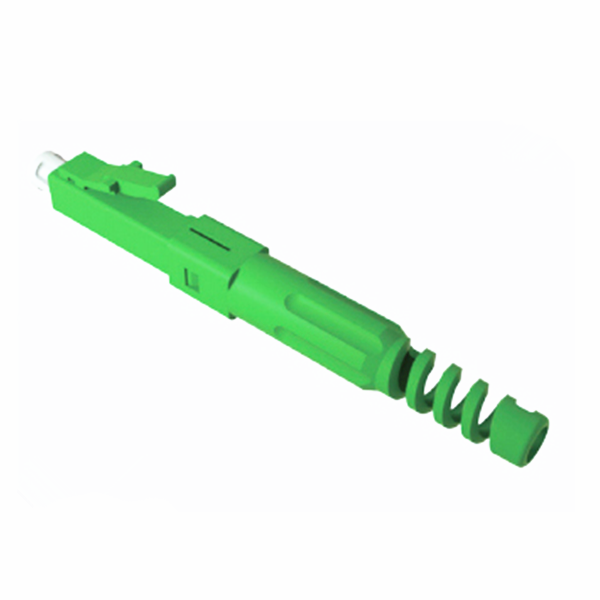

ELC920H-APC LC/APC Fast Connector for 3.0mm 2.0mm and 0.9mm Indoor Cable Fiber Optic Field Assembly Connector
Features - Fiber embedded, polishing in factory; - Matching gel inside; - Applicable for different situation; - Meet various assembly operating habits - Screw type,total length:53.3mm, including soft tail - Applied to Ø2.0 and Ø3.0 indoor cable, 0.9 invisible cable; - The diameter of fiber coating:900 μm; - Tensile strength:≥50N/2min
Item
Parameter
Cable Scope
3.0 mm & 2.0 mm & 0.9mm Cable
Fiber Diameter
125μm ( 652 & 657 )
Coating Diameter
900μm
Mode
SM
Operation Time
about 1min (exclude fiber presetting)
Insertion Loss
≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB
Return Loss
≥55dB for APC
Success Rate
>98%
Reusable Times
≥5 times
Tighten Strength of Bare Fiber
>3N
Tensile Strength
>50N/2min
Temperature
-40~+85oC
On-line Tensile Strength Test (20 N)
IL ≤ 0.3dB
Mechanical Durability(500 times)
IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)
