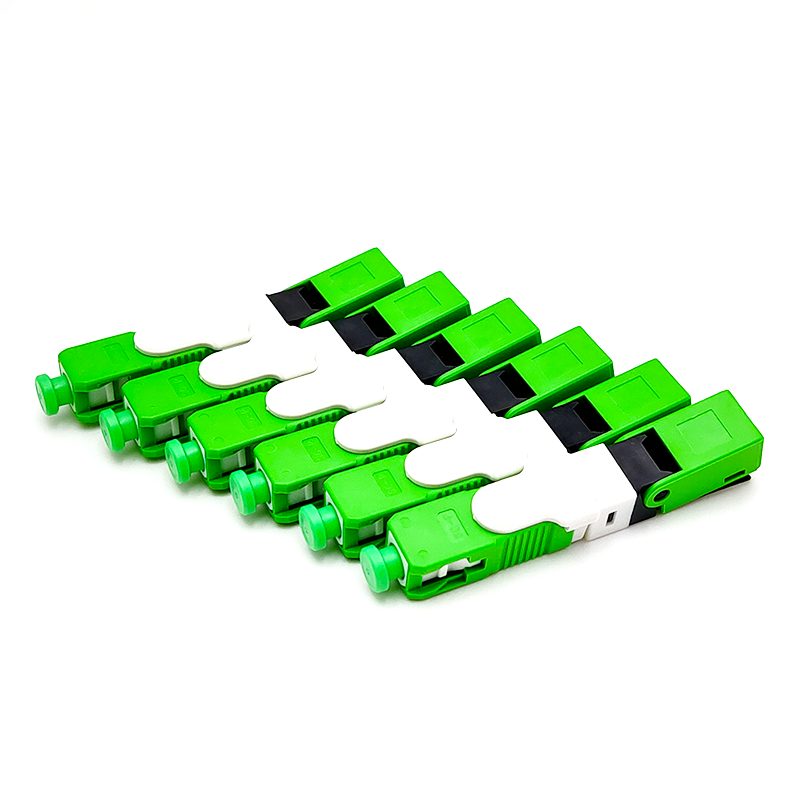

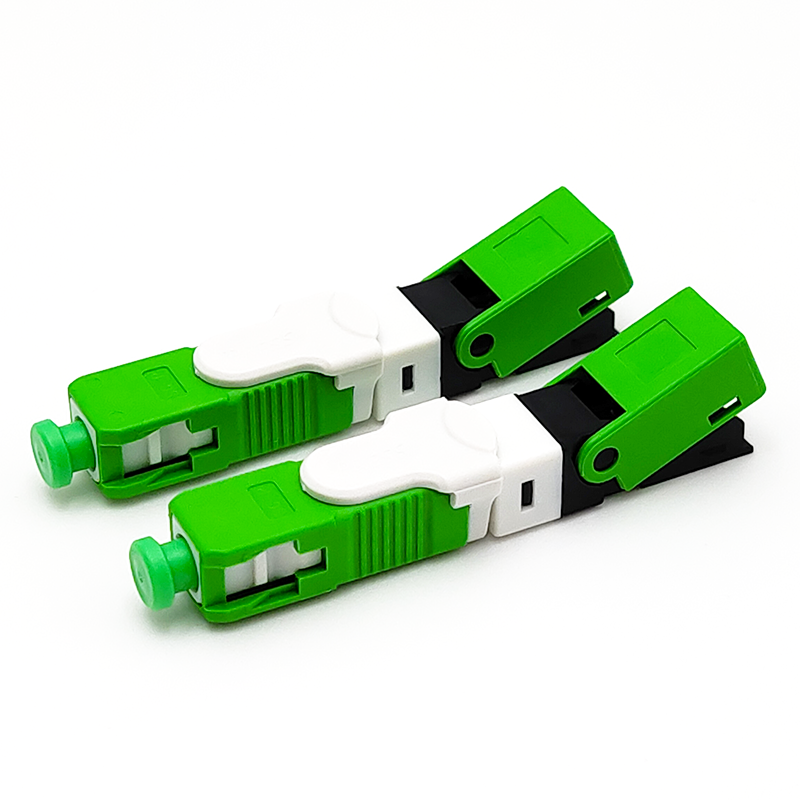

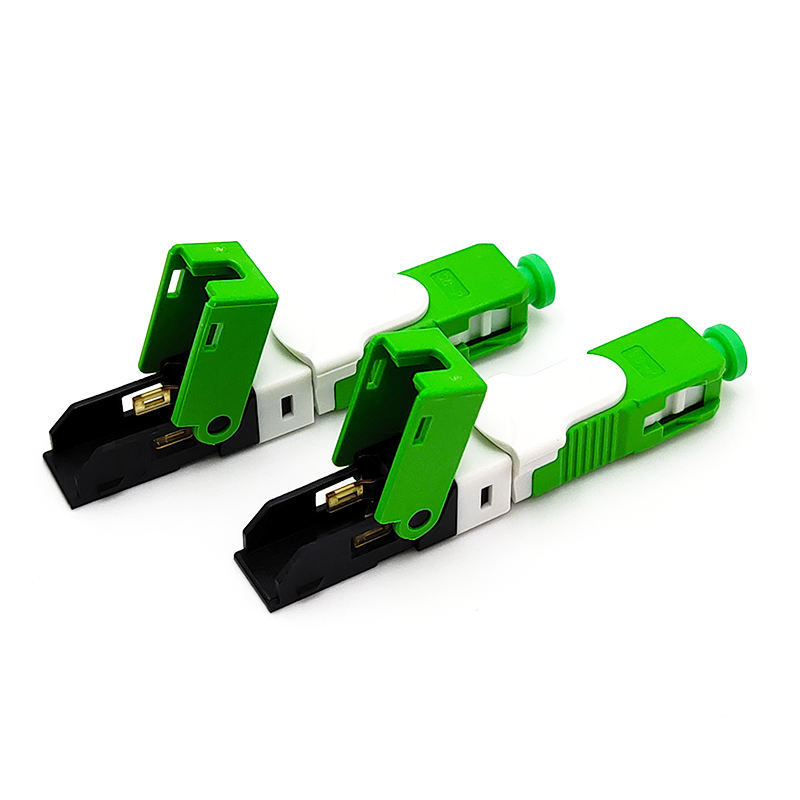

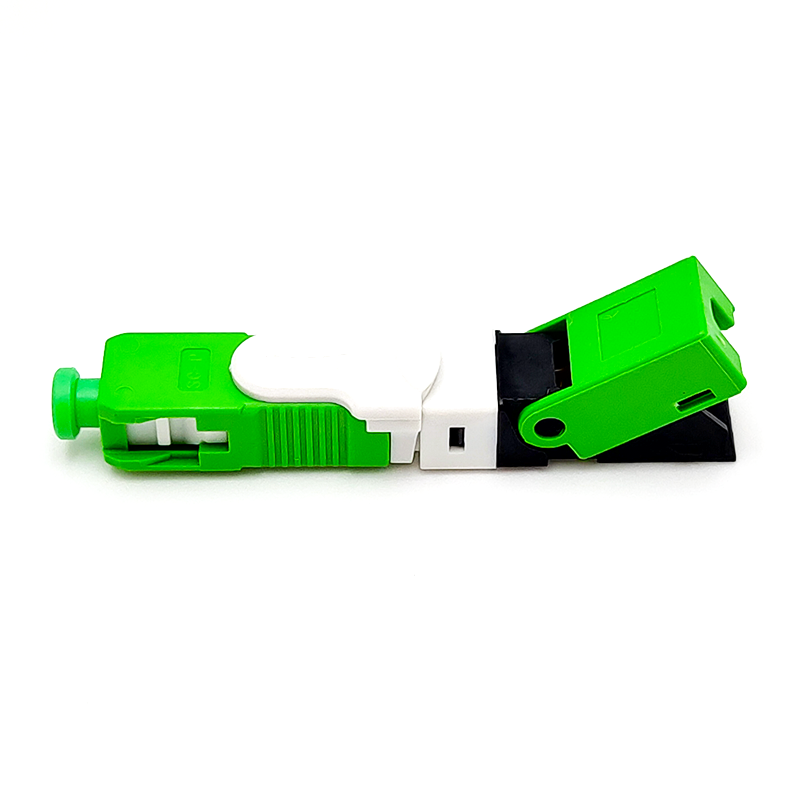

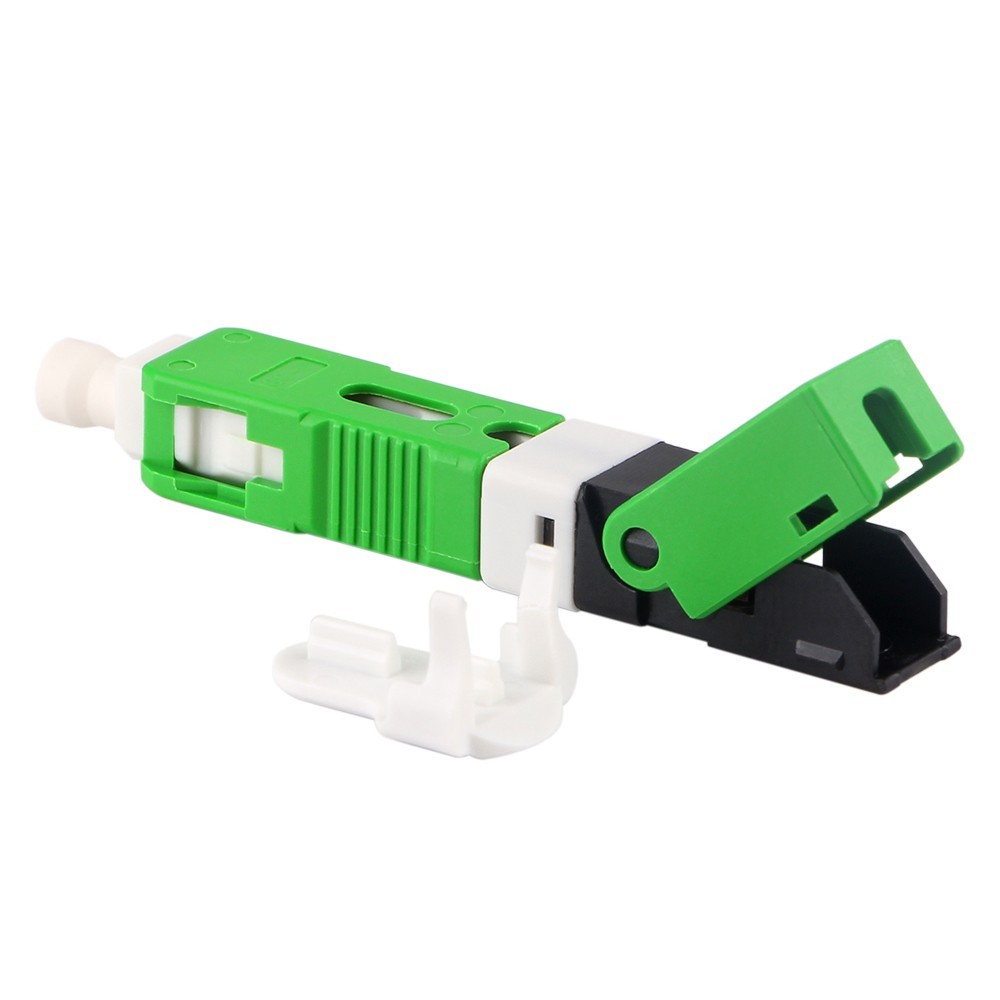

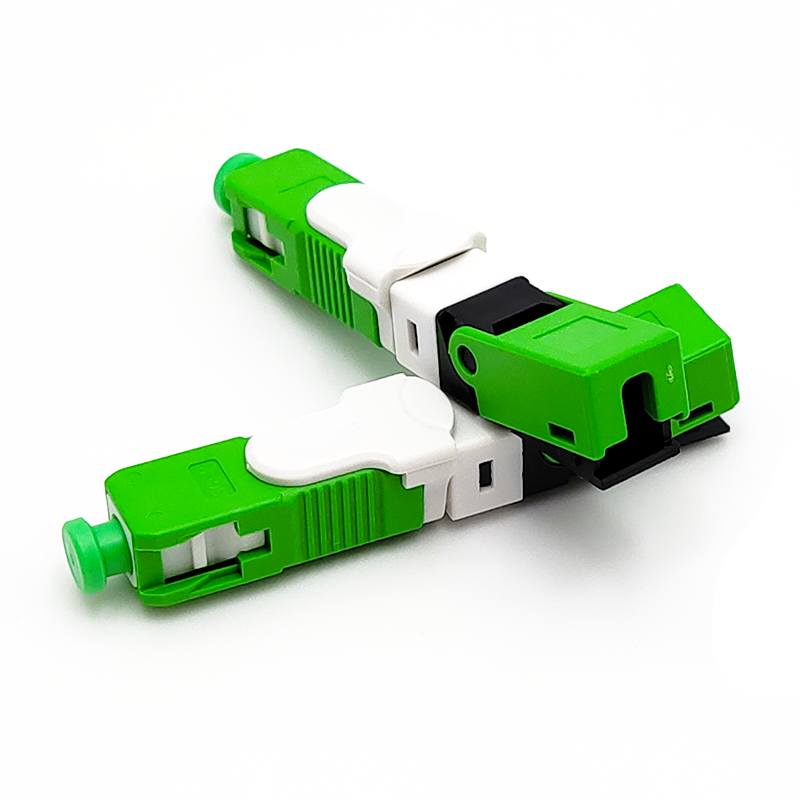

ESC25D-APC SC/APC Fast Connector for 2x3mm Drop Cable and 1.6x2mm Drop Cable FTTH Fiber Optic Field Assembly Connector

Name: ESC25D-APC SC/APC Fast Connector for 2x3mm Drop Cable and 1.6x2mm Drop Cable FTTH Fiber Optic Field Assembly Connector
Brand: FirstFiber Technologies
Price: 0.9 USD
Availability: InStock

$0.90 USD

Shipping calculated at checkout.

Quantity

Inventory: 1767 remaining available

ESC25D-APC SC/APC Fast Connector for 2x3mm Drop Cable and 1.6x2mm Drop Cable FTTH Fiber Optic Field Assembly Connector

Features
1. FTTH project usable
2. For field fast installation
3. Typical Insert loss 0.3dB
4. For 2.0x3.0mm and 1.6x2.0mm FTTH butterfly Cable
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
8. Standard YD/T 2341.1-2011

Applicable for	2.0x3.0mm Drop Cable/ 1.6x2.0mm Drop Cable
Fiber Core/Cladding Diameter	9/125um SM (G652D/G657A/G657B)
Fiber Coating Diameter	250um
Operation Time	Less than 1 min
Typical Insertion Loss	0.3dB
Max Insertion Loss	0.5dB
Tensile Strength	>30N
Connector Length	52mm
Return Loss	>55dB
Repeat Assemble	>10 Times
Working Temperature	-40 to +85 Celsius degree
