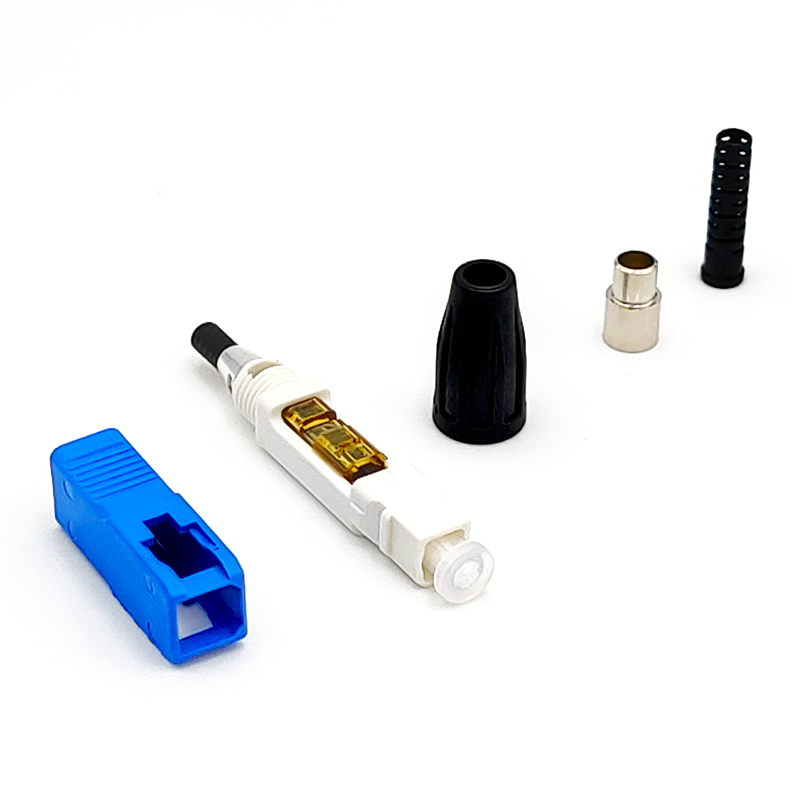

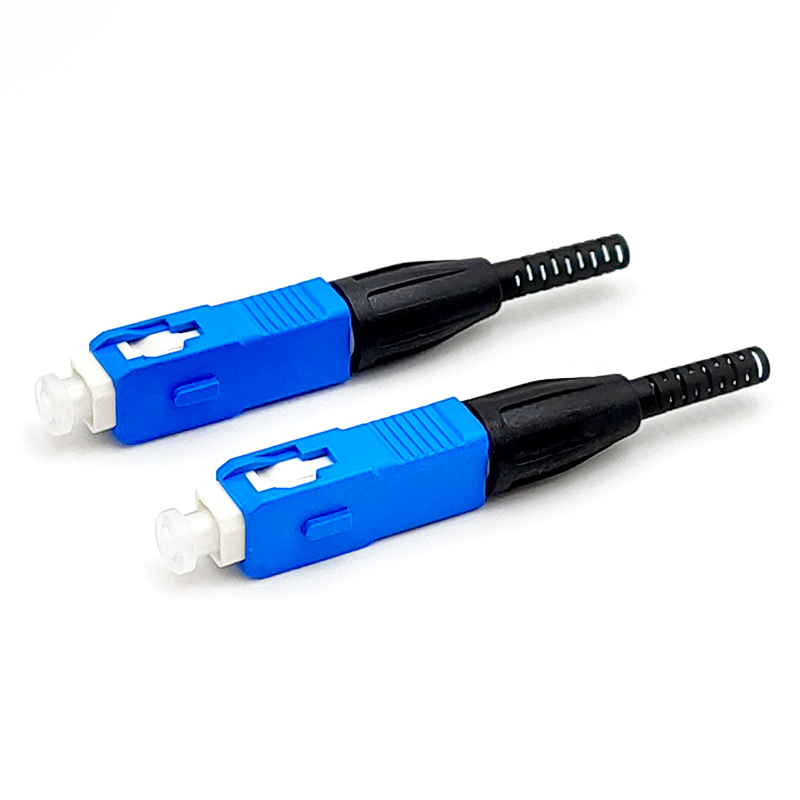

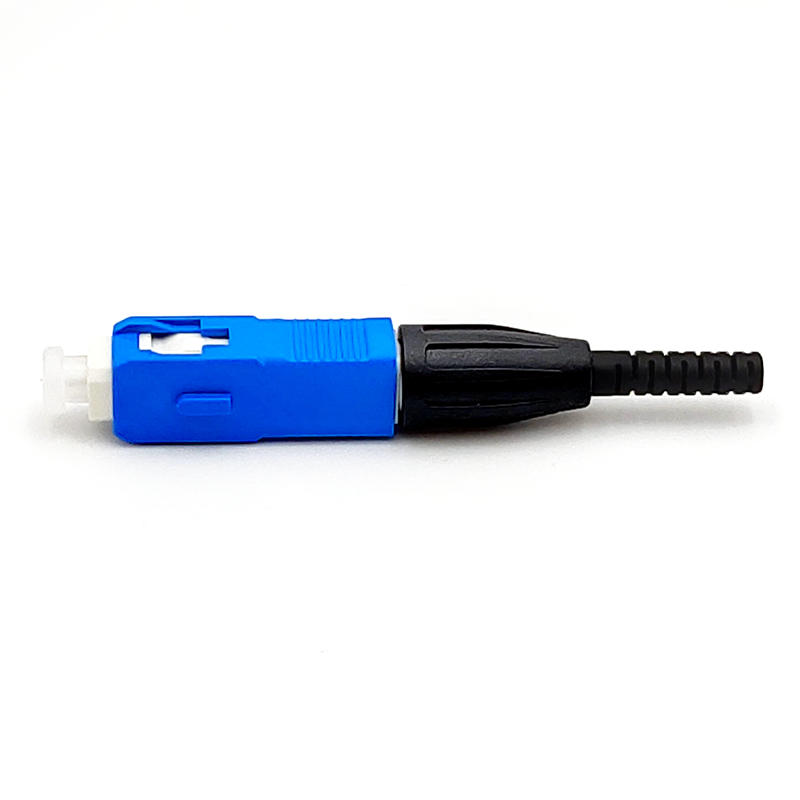

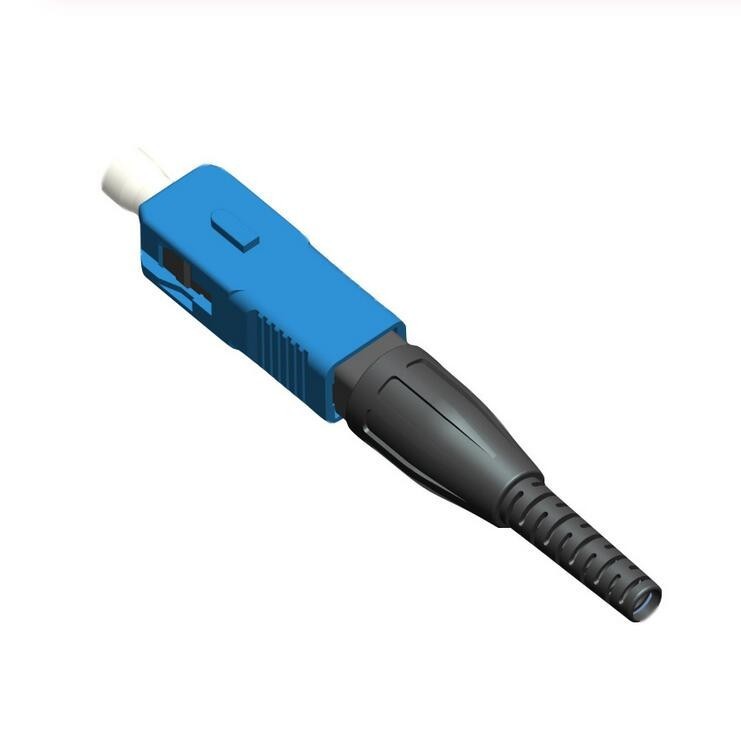

ESC920H SC/UPC Fast Connector for 3.0mm 2.0mm and 0.9mm Indoor Cable Fiber Optic Field Assembly Connector

Name: ESC920H SC/UPC Fast Connector for 3.0mm 2.0mm and 0.9mm Indoor Cable Fiber Optic Field Assembly Connector
Brand: FirstFiber Technologies
Price: 0.9 USD
Availability: InStock

$0.90 USD $1.60 USD Save $0.70 USD

Shipping calculated at checkout.

Quantity

Inventory: 9980 remaining available

ESC920H-UPC SC/APC Fast Connector for 3.0mm 2.0mm and 0.9mm Fiber Cable FTTH Fiber Optic Field Assembly Connector

Features
1. FTTH project usable
2. For field fast installation
3. Typical Insert loss 0.3dB
4. For 3.0mm 2.0mm and 0.9mm Cable
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
8. Standard YD/T 2341.1-2011

Technical specification

Item	Parameter
Cable Scope	3.0mm & 2.0mm Cable & 0.9mm cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	900μm
Mode	SM
Operation Time	about 1 min(exclude fiber presetting)
Insertion Loss	≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB
Return Loss	≥50dB for UPC
Success Rate	>98%
Reusable Times	≥5 times
Tighten Strength of Bare Fiber	>3N
Tensile Strength	>50N
Temperature	-40~+85^oC
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB
Connector Length	45.5mm
