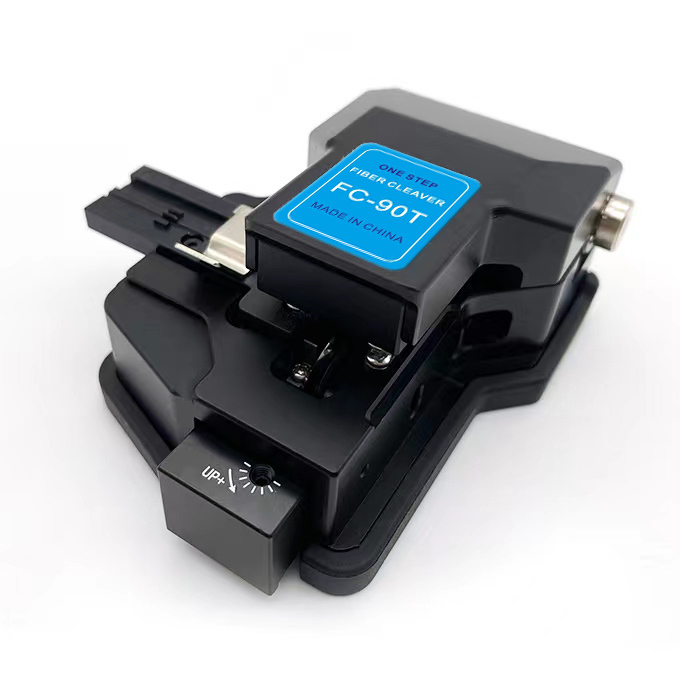

FC-90T One Step Fiber Cleaver

$0.00 USD
Shipping calculated at checkout.
Quantity
The FF-90T fiber cleaver is the most versatile tool available for optical fiber cleaving. The FF-90T is good for use in fusion splicing, field termination, or any other precision application. It has a simple cleaving operation that can be performed in the palm of the hand, which allows the user to take the cleaver to fiber in limited slack applications. The FF-90T can perform cleaves on single fibers (0.25 to 0.90) and up to 12 count ribbons.

Features
- Precision cleaves for fusion splicing, also ideal for preparing fiber for pre-poished connectors
- Utilizes an automatic anvil drop for fewer required steps and better cleave consistency
- Cleave Angle of 90 Degrees �� 0.5 Degrees?
- Its 16-position blade provides approximately 78,000 Cleaves
- Standard 125/250um & 125/900um fibers

Applicable range Single Core Fiber / Ribbon Fiber
Coating Diameter ��0.25mm - ��0.9mm(Single) / 0.25mm(Ribbon)
Cladding Diameter 0.125mm
Cleave Length 5~30mm
Typical Cleaving Angle <0.5��
Maximum Blade Life 48,000 times (3,000*26)
Number of Steps for Cleave One Step
Scrap Collection Included
Dimension 110mm(W)*110mm(D)*40mm(H)
Weight 320g
