Handheld Optical Laser Source is mainly for fiber optic network site installation, acceptance and maintenance of fiber optic cable, optical passive components of the transmission and loss measurement needs of the new design and development of products.
The light source can provide 1 to 4 wavelengths of stable output for customers choice.
Features
- Support CW and a variety of modulation light output
- Output optical power adjustable, Adjustment range 6dB, step 1dB(Optional)
- Support automatic shutdown
- Backlight inteligent control
Model
FF-3115A
FF-3115B
FF-3115C
FF-3115D
Working wavelength
1310/1550nm
850/1300nm
1310/1490/15550nm
850/1300/1310/1550nm
Fiber Type
9/125nm single mode fiber
62.5/125nm multi mode fiber
9/125nm single mode fiber
both singmode fiber and multi mode fiber
Laser Type
FP-LD
Output Power
<=-5dBm
Stability
+/-0.02dB/8h
Modulation
CW/270Hz/1000Hz/2000Hz
Output power adjustable Range
0 to 6dB, 1dB step
Connector
FC/SC/ST
Power
3* AA batteries
Auto power off
10 mins
Continuous working time
>72 hours
Working Temperature
-10 to +50oC
Storage Temperature
-40 to +70oC
Size
186x100x50mm
Weight
150g

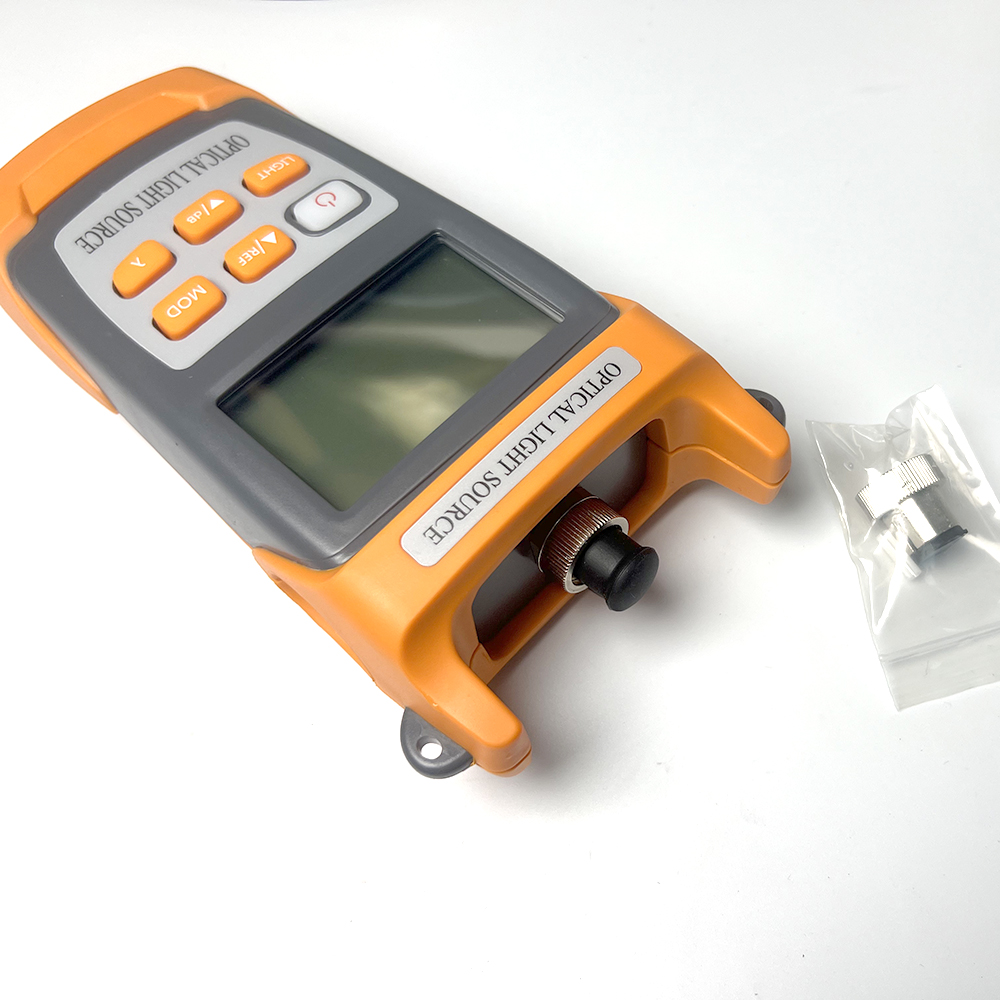

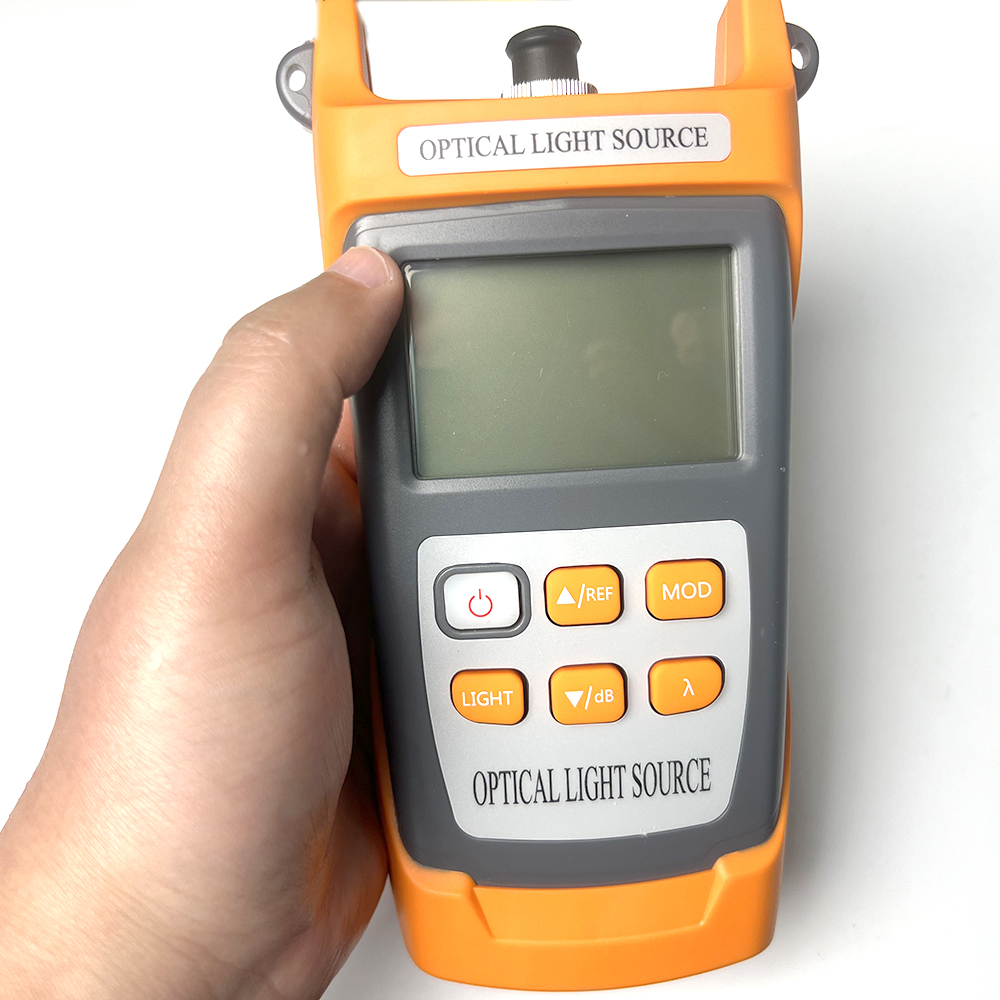

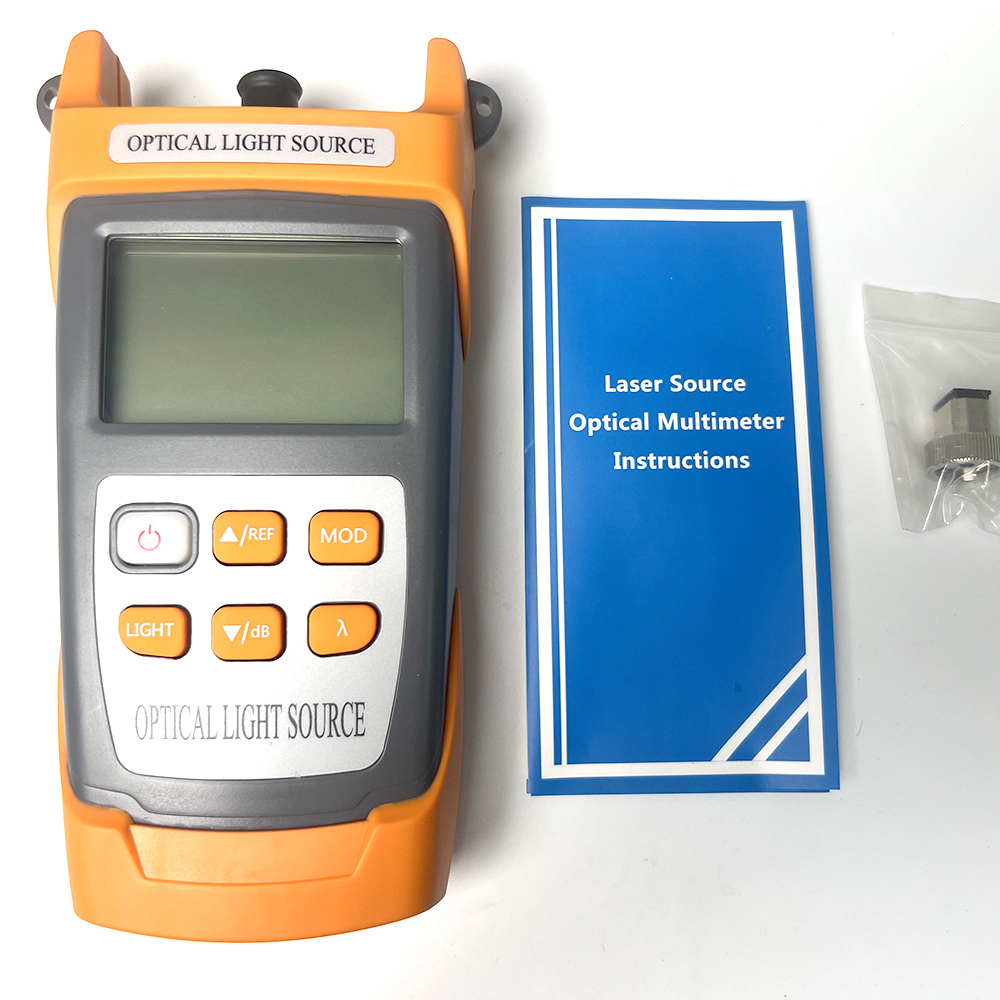

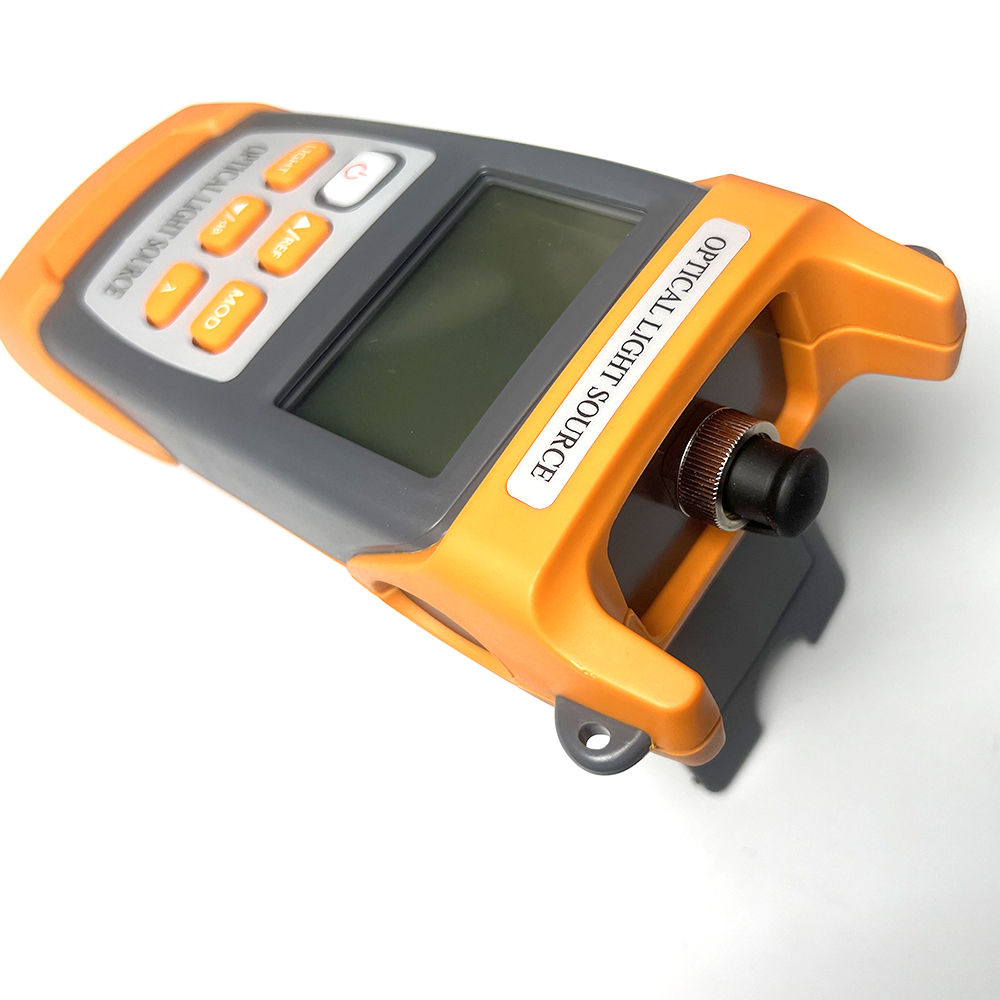

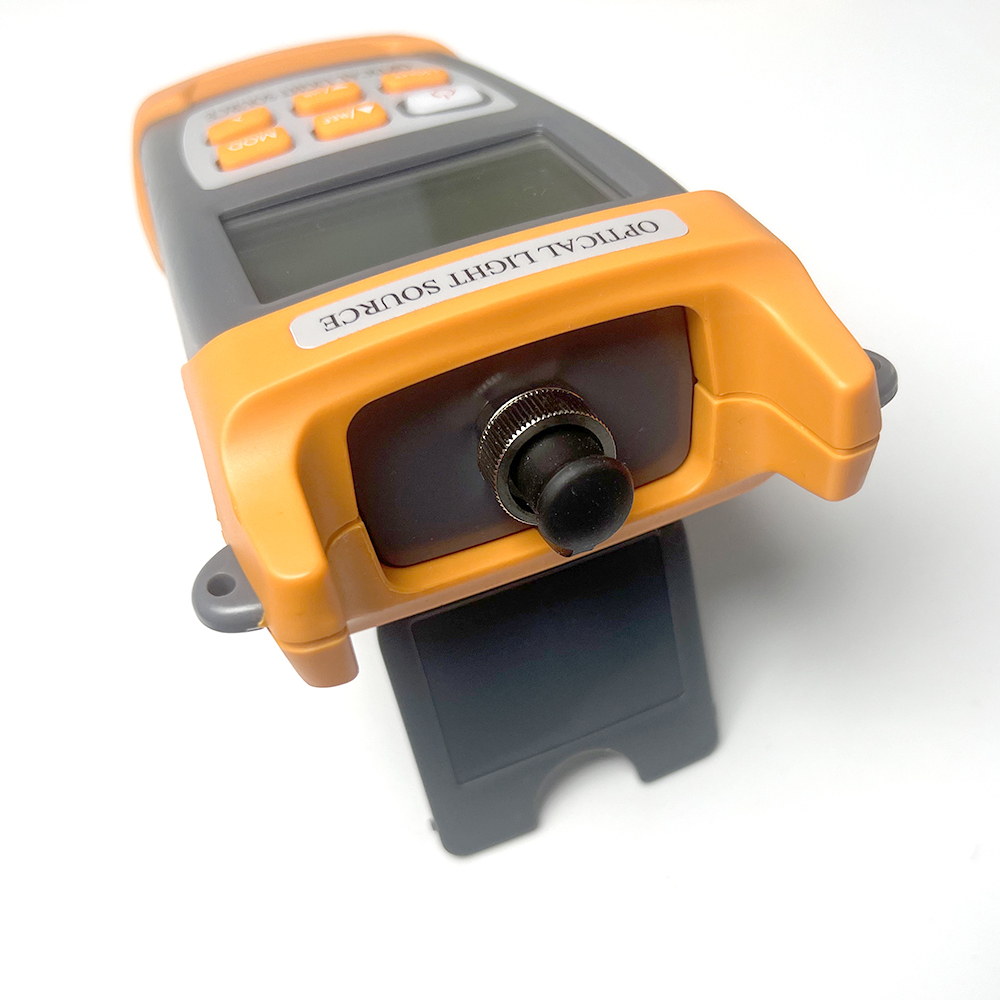

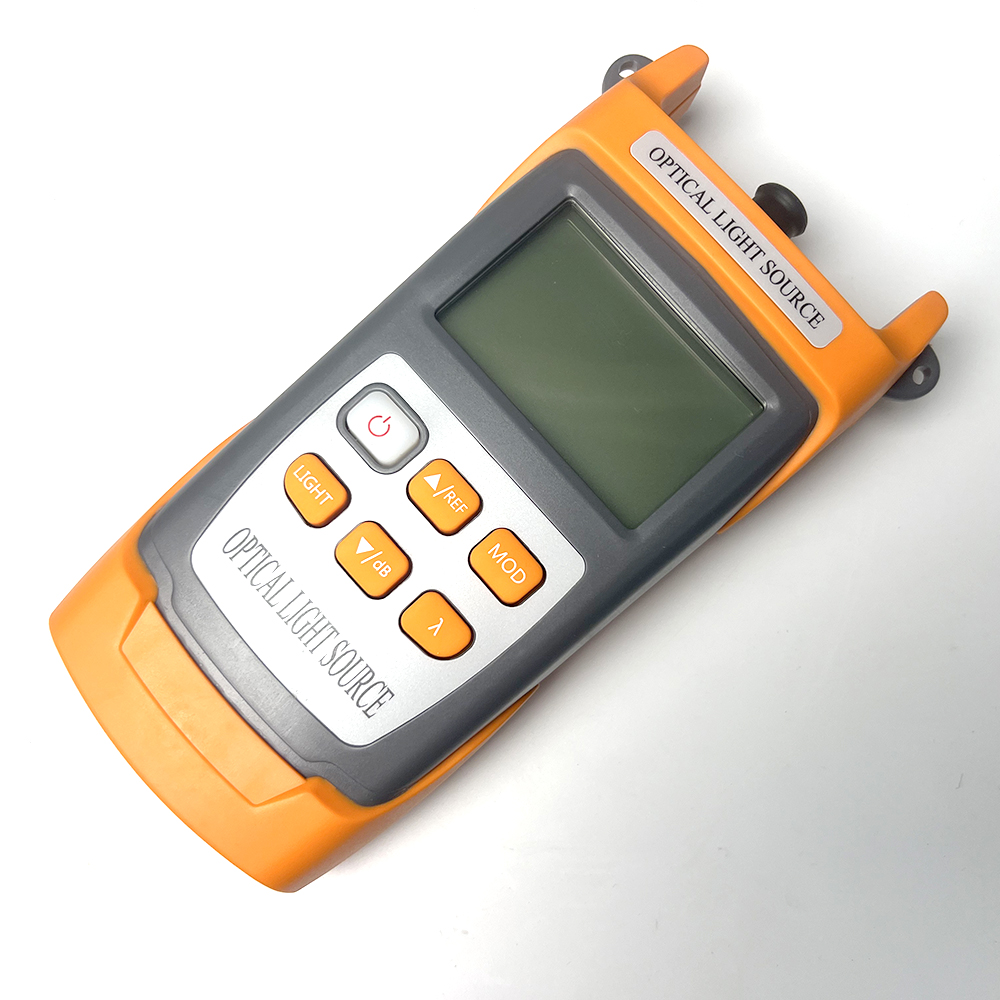

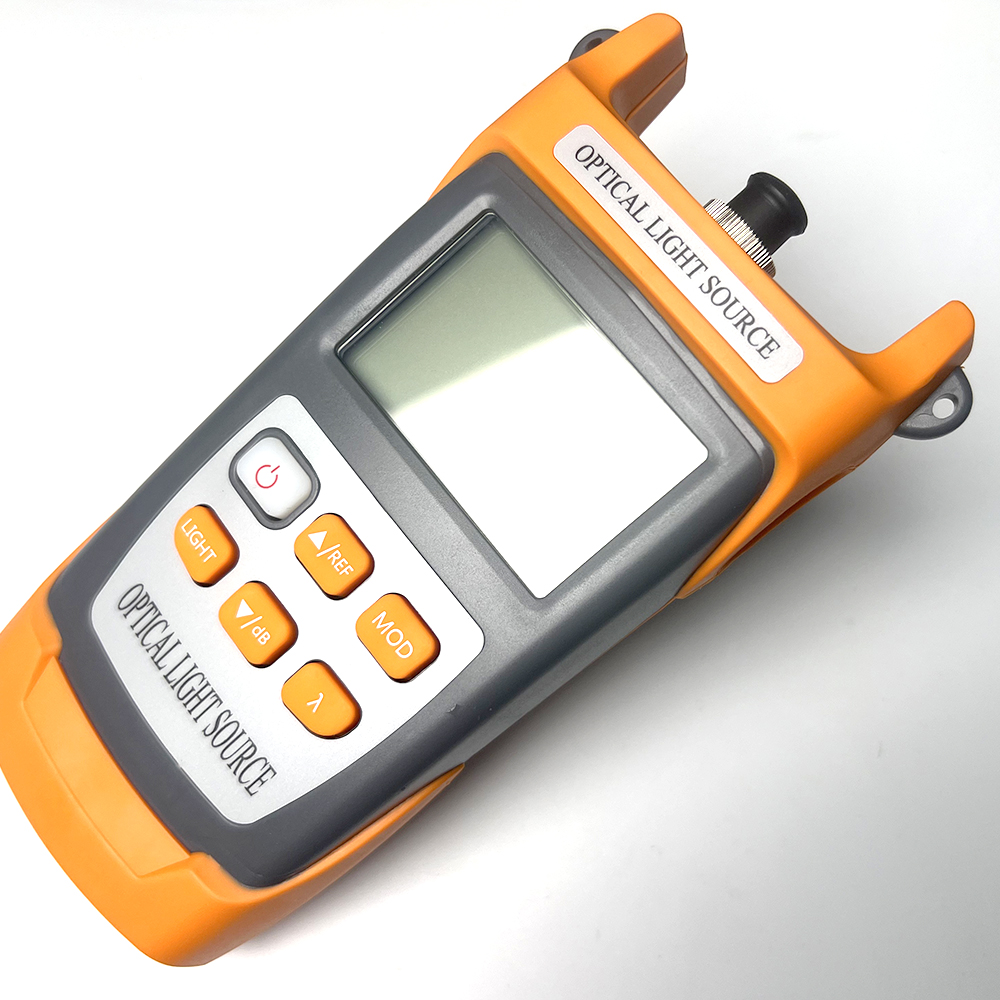

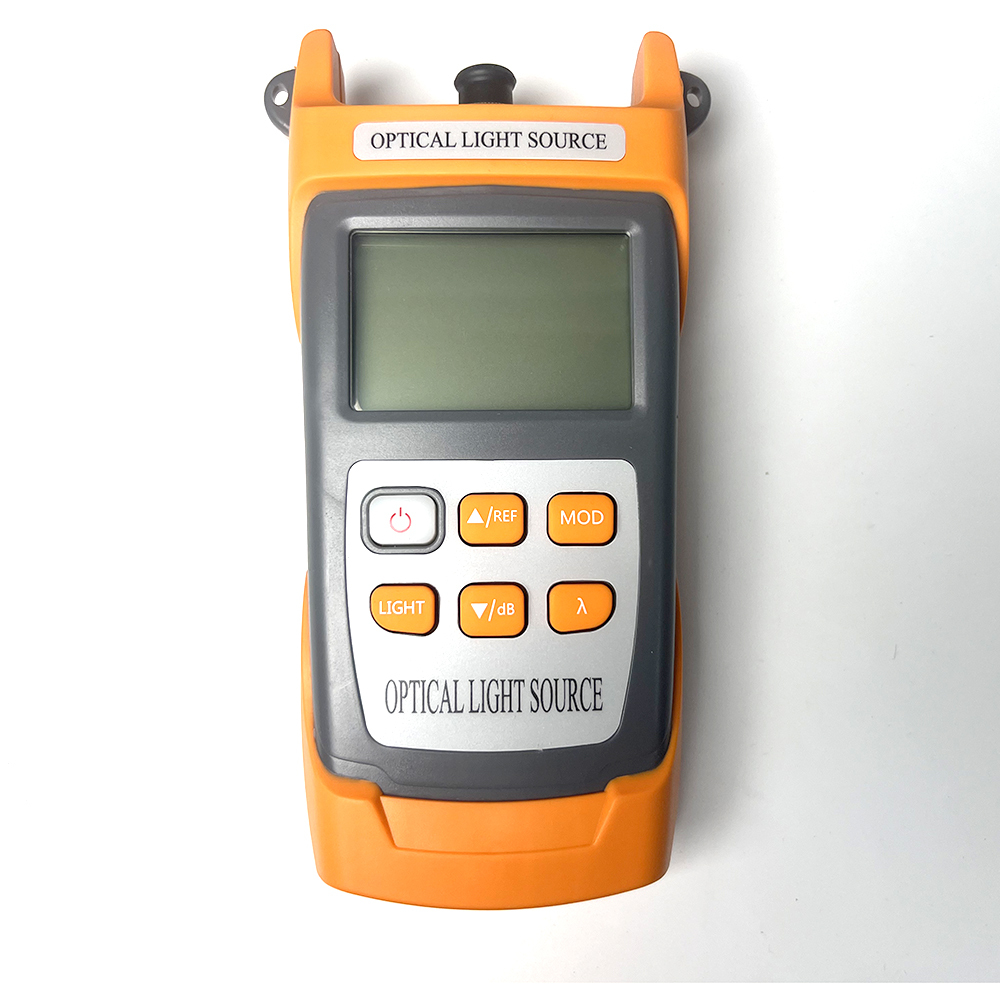

The Kit Includes, - FF-3115 Optical Light Source, - 3pcs of 1.5V batteries or Lithium battery, - User Manual, - Cotton swabs - Carrying bag
