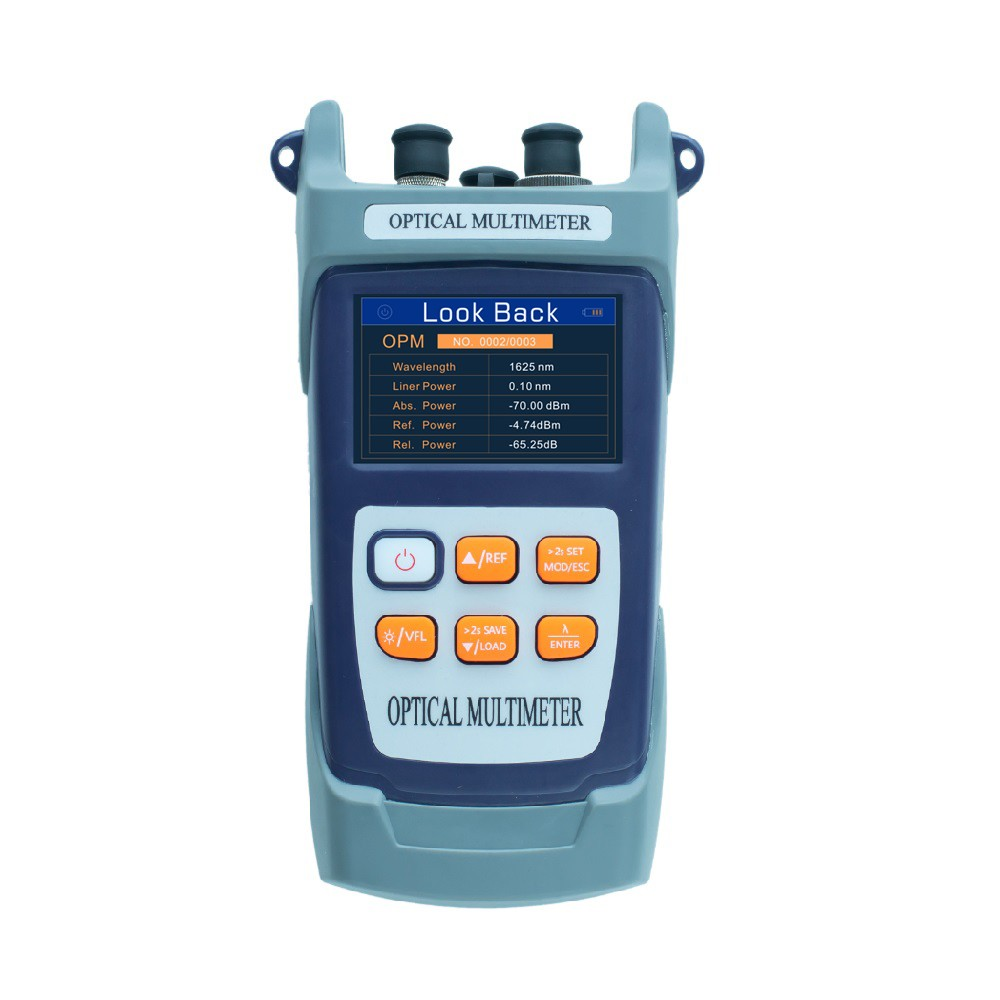

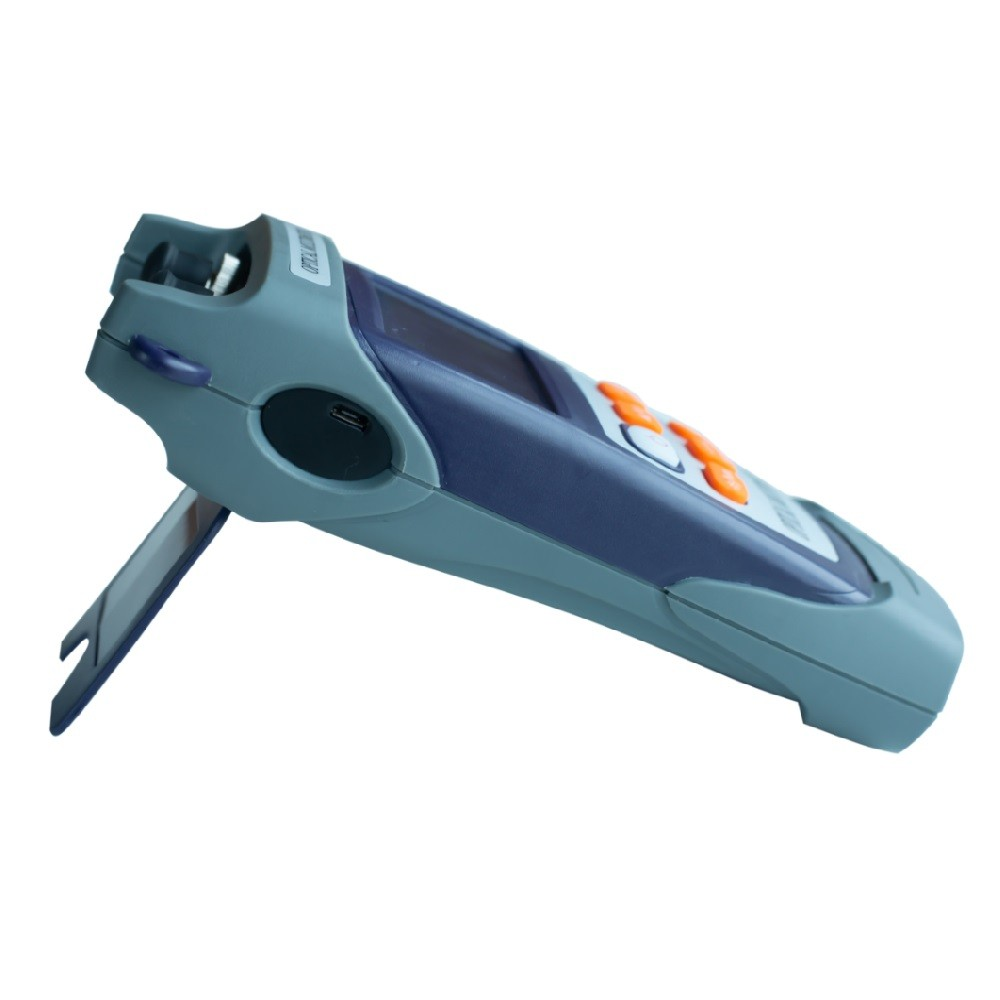

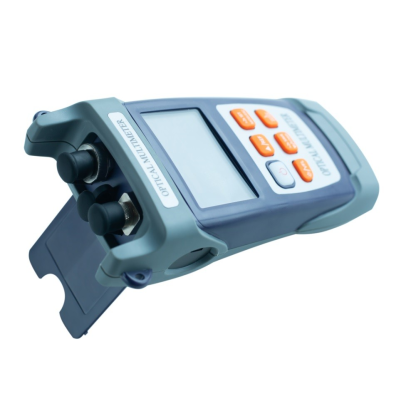

FF-3215 Optical Power Meter OPM and Visual Fault Locator VFL

Name: FF-3215 Optical Power Meter OPM and Visual Fault Locator VFL
Brand: FirstFiber Technologies
Price: 48 USD
Availability: InStock

$48.00 USD $58.00 USD Save $10.00 USD

Shipping calculated at checkout.

Model

FF-3215A (-70 to +6dBm) FF-3215C (-50 to +26dBm)

Quantity

Inventory: 787 remaining available

FF-3215 Handheld Optical Power Meter is newly designed fiber optic tester. It aims to apply in fiber network installation, fiber network engineering acceptance and fiber network maintenance.

Combined usage with FF-3115 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.

Features

- Automatic wavelength identification and switching

- Automatic frequency identification

- Intelligent backlight control

- Data storage up to 1000 test records

- USB communication port for data Download

- Reference power level can be set up

- User self calibration function

- Auto-off function

- Low battery indication

Specification

Model#	FF-3215A	FF-3215C
Wavelength (nm)	850/1300/1310/1490/1550/1625
Detector	InGaAs
Working Range(dBm)	- 70~+6	- 50~+26
Uncertainty (dB)	±0.15(3.5%)
Linearity (dB)	±0.02
Frequency ID(Hz)	270,330,1K,2K
Date storage capacity	1000
Communication Port	USB
Optical Connector type	FC/SC/ST interchangeable
Battery	3*AA 1.5V or Lithium battery
Power Supply (V)	8.4
Operating time (h)	200
Operation (^oC)	- 10^oC~+60^oC
Storage (^oC)	- 25^oC~+70^oC
Size(mm)/weight	18610050(240g)
