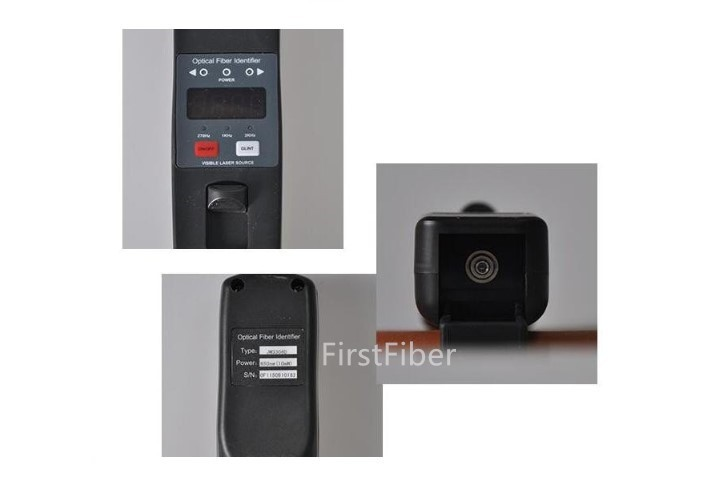

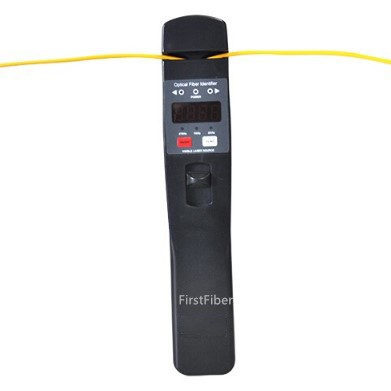

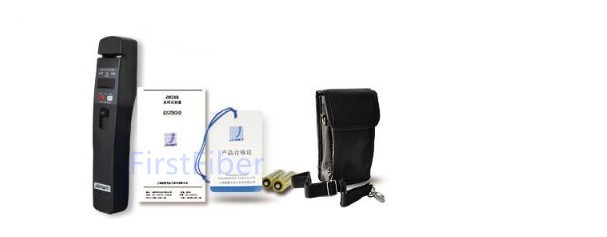

FF-3306D Fiber Optic Identifier Live Fiber Optical Identifier with Built in 10mw Visual Fault Locator

Name: FF-3306D Fiber Optic Identifier Live Fiber Optical Identifier with Built in 10mw Visual Fault Locator
Brand: FirstFiber Technologies
Price: 95 USD
Availability: InStock

$95.00 USD

Shipping calculated at checkout.

Quantity

Inventory: 930 remaining available

FF-3306D Optical Fiber Identifier is an important tool for optical fiber network maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber. Meanwhile it also has Visual Fault Locator module with fault location function. It is the ideal instrument for online test.

Function:

1.Indicate the signal directions and power in fiber;

2.Indicate the signal presence or absence(Live or dark fiber);

3.Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;

4.Displays the relative power level;

5.Easy-to-replace battery;

6.Lower power indication;

7.Build in VFL function.

Specifications

Identified Wavelength Range	750nm-1700nm
Insertion Loss	1.0dB
Fiber Type	<3mm Fiber
Identified Signal Type	270Hz/1KHz/2KHz
Display Type	LED
Detector Type	1mm InGaAs
Minimum detection power	-35dBm(1550nm) -30dBm(1310nm)
Center Wavelength (VFL Function)	650nm
Output Power (VFL Function)	10mW
Alkaline Battery	2*AA
Battery Life?	>60H
Operating Temperature	0~+50^oC
Storage Temperature	-20~+60^oC
Weight	200g
Dimension	2304348mm
other Functions	Power Measurement
other Functions	Auto-off function
