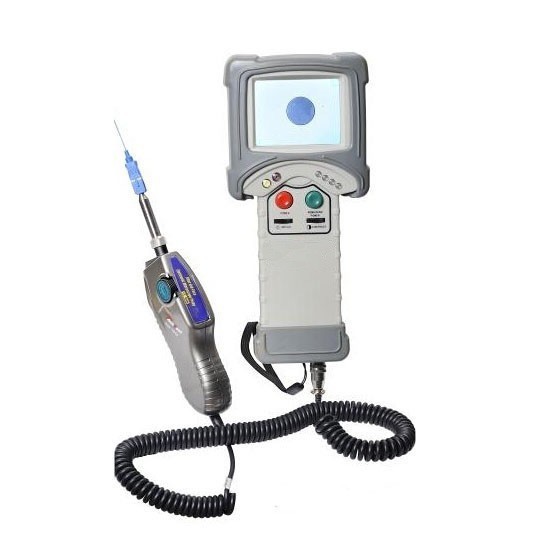

FF-700AH features unparalled advantages of probe adjustment and alignment, displaying high definition and clear image for inspection.It includes a Probe and 3.5inch display for the whole set.

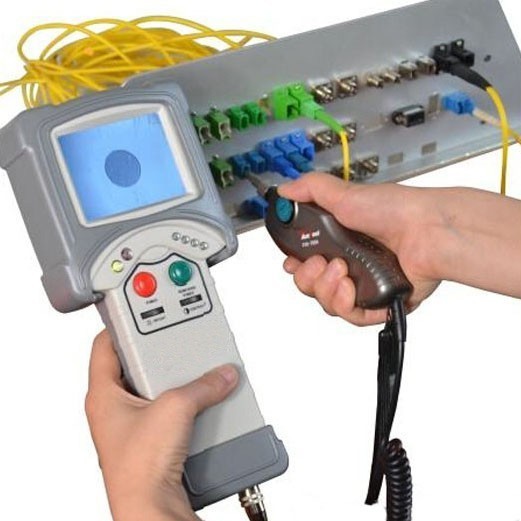

The probe is of a high performance inspection probe. Compared with the traditional tools, its unique single-way of focus control greatly simplifies the work. No matter left or right hand, forward or reverse operation, it can quickly get the end face inspected and have image displayed easily in one-way. It tailors the fiber operator and manufacturer for special quick, comfort end face testing, committing to serve you the best.
Features
- Single way to have focus control, stir the wheel with fingers simply to have loop control with back or forward movement.
- 400x Magnification Ability less more 1um Resolution
- Bright and Contrast Adjustment for indoors/outdoors operation
- Precise cone contact in the front of probe to reach 98% alignment consistency
- Stable for more than 8 hrs continuous work with less than 3% failure?
| Probe |
Magnification Ability |
400X |
| Resolution(um) |
1um |
| View of Field(mm) |
0.40*0.31 |
| CCD Sensor |
1/3, 600Line |
| LxWxH Size(mm) |
165*28*40 |
| Weight(Kg) |
0.8 |
| Storage Temperature |
-18oC-35oC |
| 3.5 Inch Display |
End face size in display(mm) |
21.25 |
| Pixel |
230000 |
| Battery Volume(mAh) |
3500 |
| Working Hours |
9h |
| Weight(Kg) |
1 |
Package includes
- 1 x probe
- 1 x display
- 1 x power cord
- 1 x soft case
- 1 x battary
- 1 x FC/PC tip ( to inspect FC/PC connector with adaptors )
- 1 x SC/PC tip (to inspect SC/PC connector with adaptors)
- 1 x LC/PC tip?(to inspect LC/PC connector with adaptors)
- 1 x 2.5mm tip (to inspct all 2.5mm Ferrul connectors)
