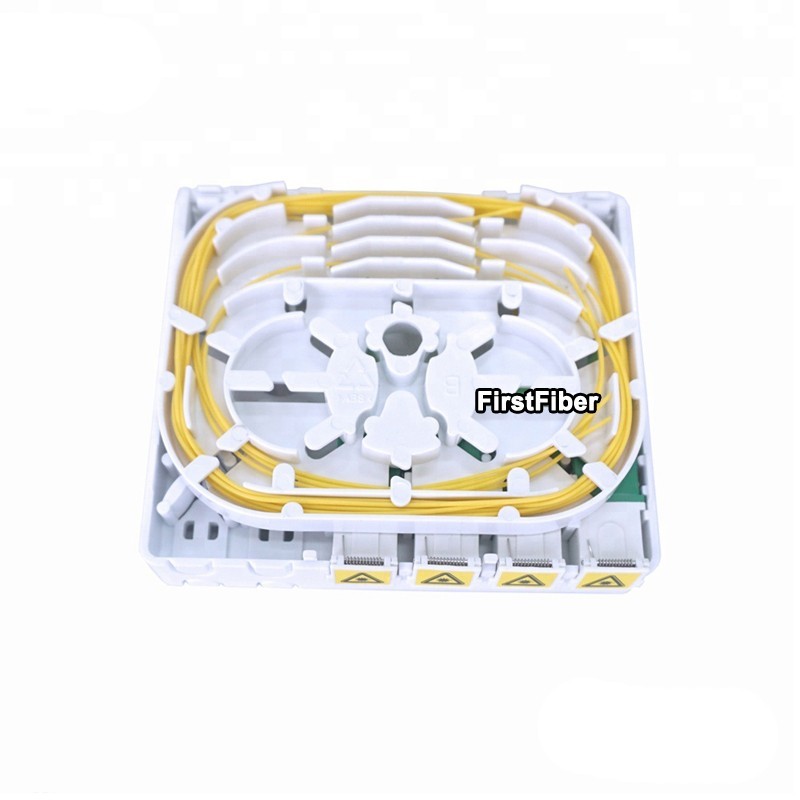

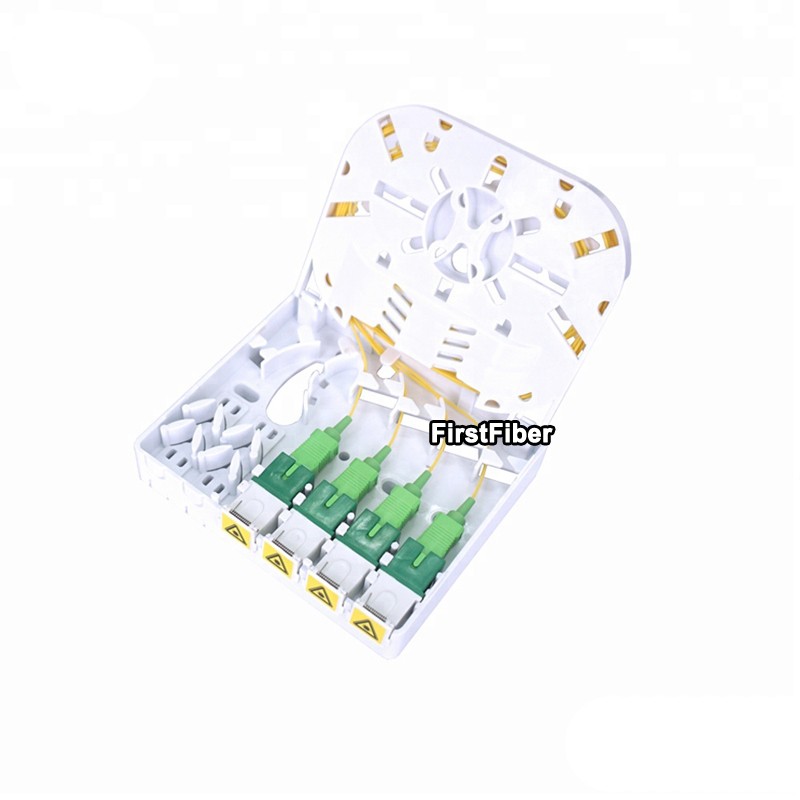

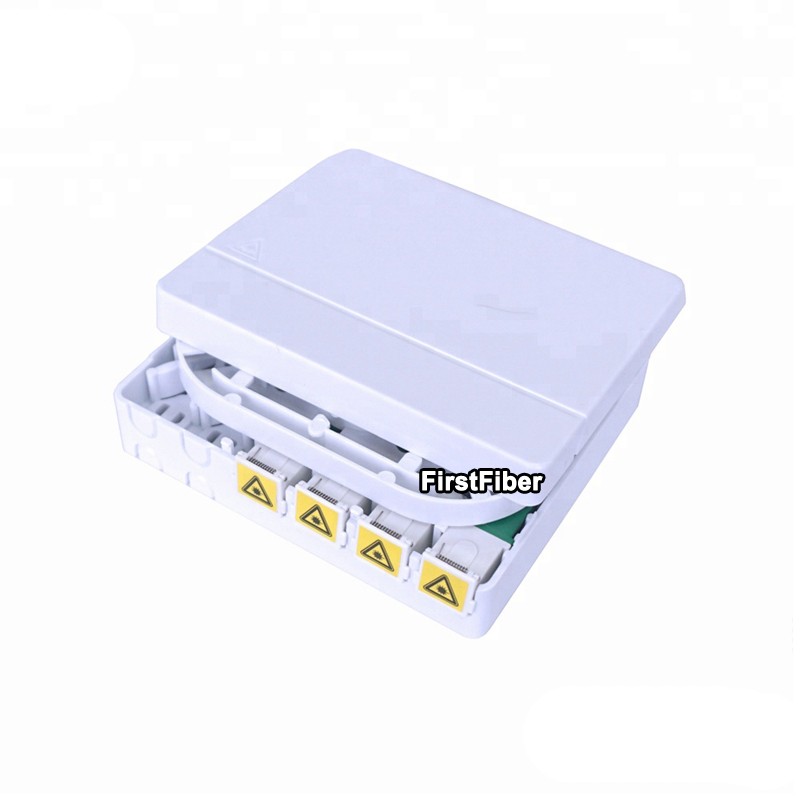

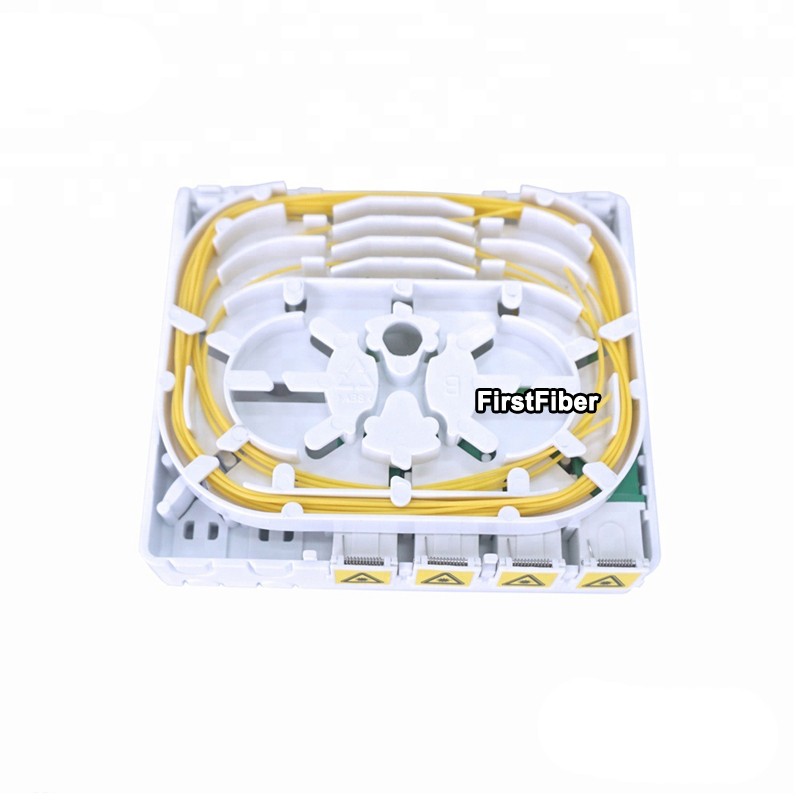

FF-FOS4B 4 Cores Fiber Optic Socket Faceplate

$3.70 USD
Shipping calculated at checkout.
Adapter
Pigtail
Quantity
Inventory: 698 remaining available

FF-FOS4B is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.



Features
1. Support termination, splicing and storage for fiber optic cable systems
2. Compatible with G.657.
3. Compact structure and perfect fiber management
4. Engineered fiber routing protect bend radius through the unit to ensure signal integrity
5. Applicable for wall-mounted and compatible with flush mounted outlet.



Specifications

Parameter
Value
Remark
Model
FF-FOS4B

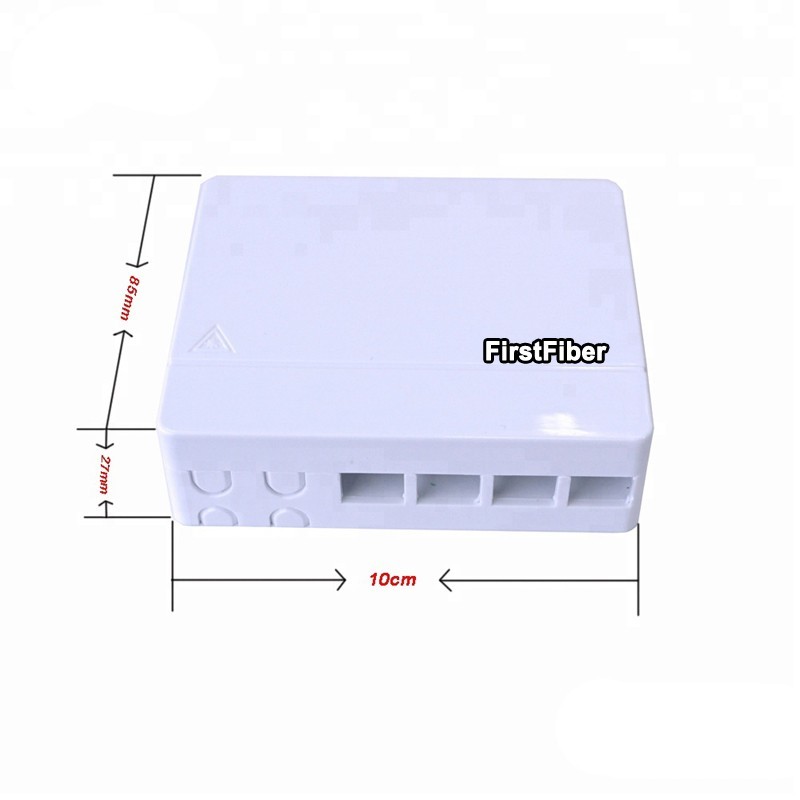

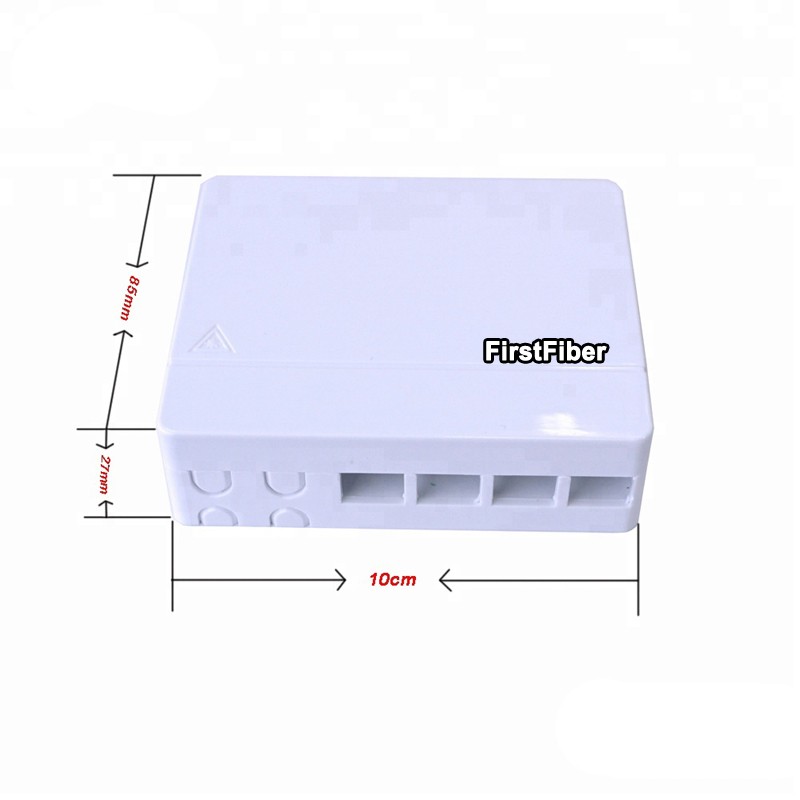

Outside Dimension (mm)
100*80*29

Material
Plastic

Color
White

Storage of fibers
G.657

Splice capacity
4 single fiber

Splice Method
Fusion Splice
45mm sleeve
Adapter type and count
4SC or 4 LC Duplex

Input cable
3mm or figure 8 (2*3mm)
From side or bottom



Accessories

No.
Name
Qty.
1
Fiber splice protection sleeve
4pcs
2
Expansion bolts for the outlet all-mounted
2 set
