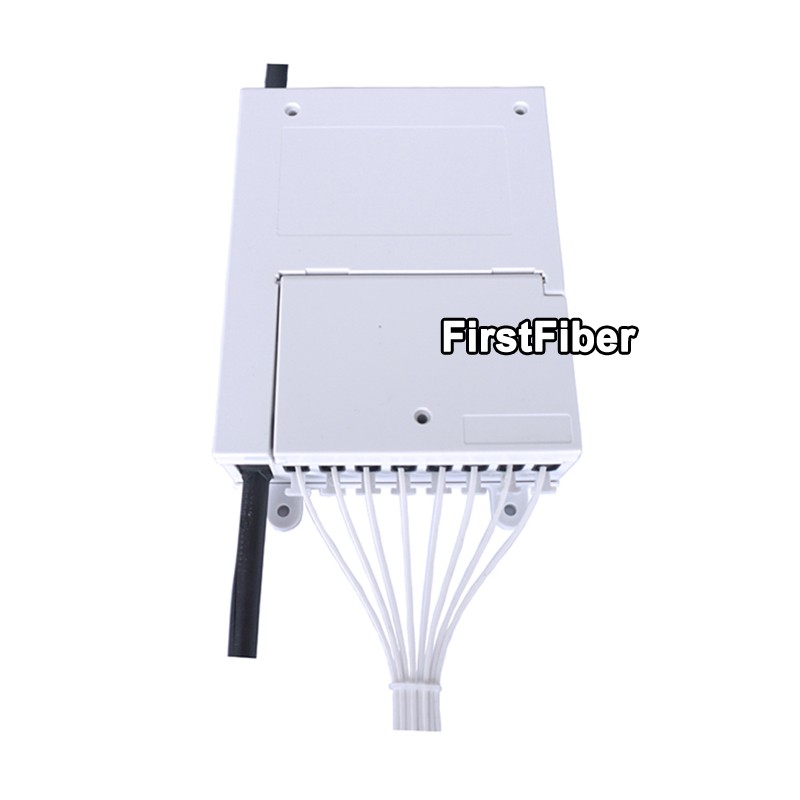

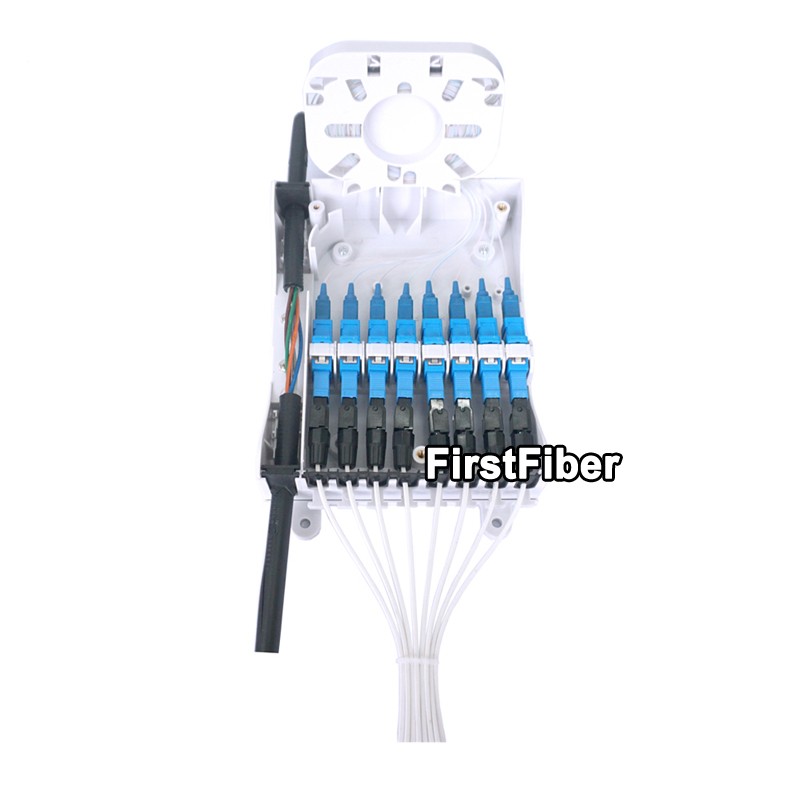

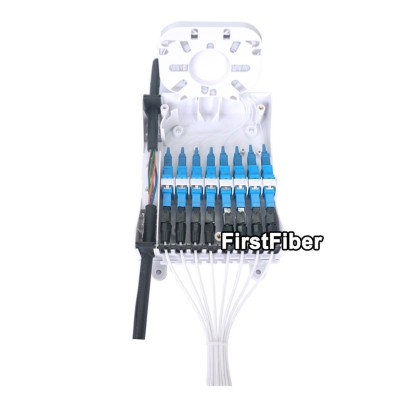

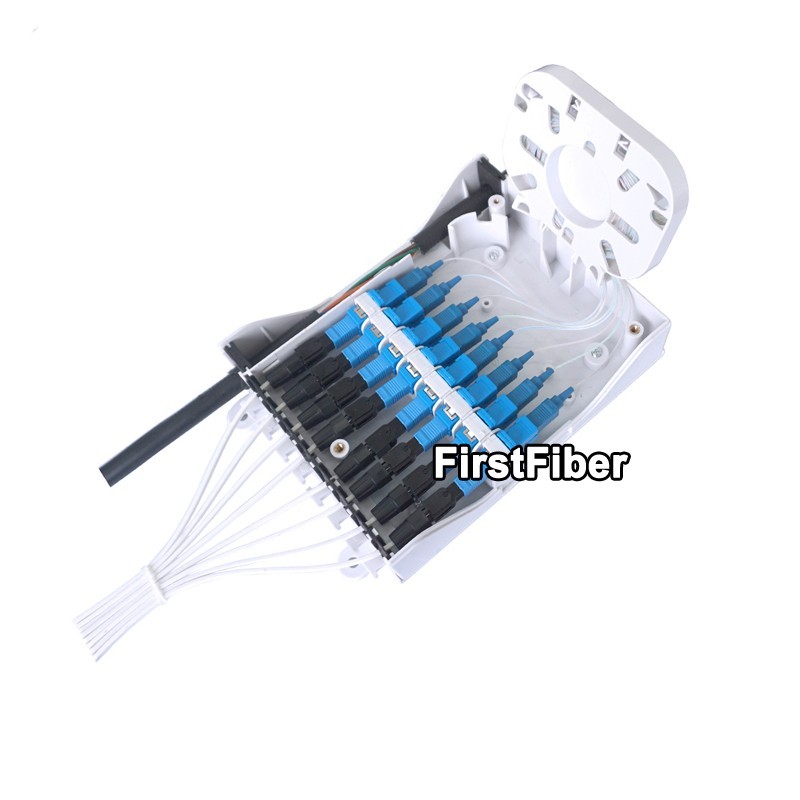

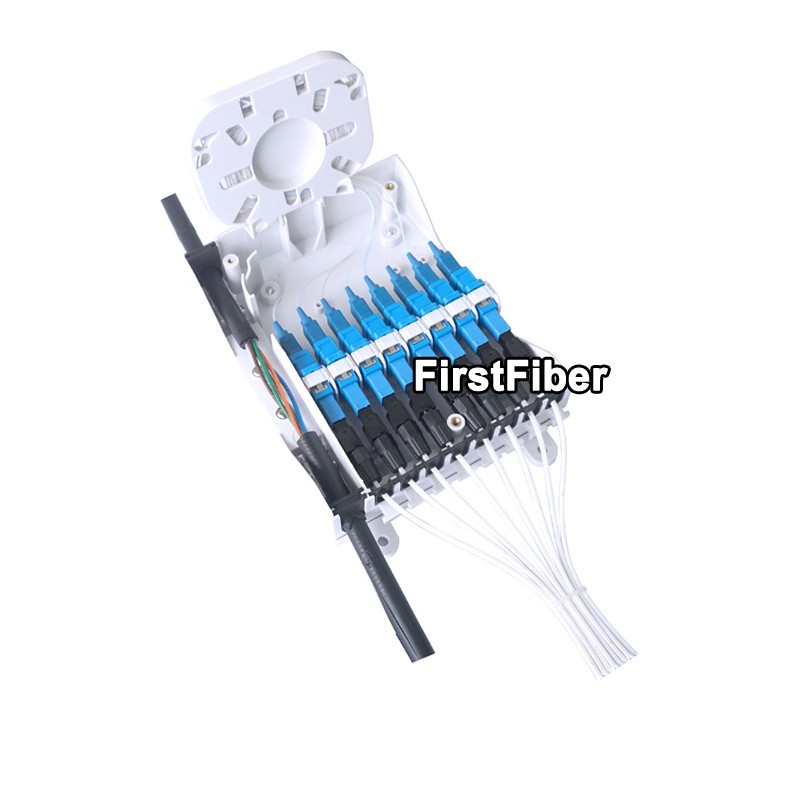

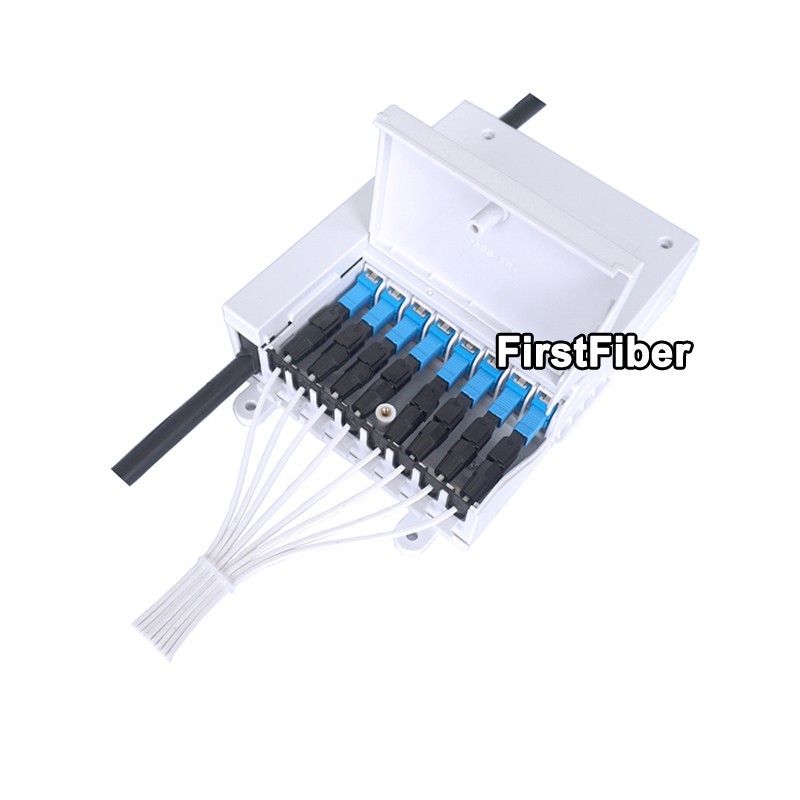

The equipment is used as a termination point for the feeder cable to connect with drop cables or pigtails in FTTH communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTH network building.
Feature
1.Material: >ABS FR<, high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain 2.Clamping for feeder cable and drop cable , fiber splicing, fixation, storage, distribution...etc all in one. 3.Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance. 4.Cabinet can be installed by the way of wall-mounted, suitable for indoor uses. 5.Lateral pressure-resistance: 500N 6.Shock-resistance: 750N 7.Working temperature: -40 ~ +80oC
Application
- Widely used in FTTH access network. Telecommunication Networks CAMax.Capacity(bunchy)TV Networks Data communications Networks - Local Area Networks
Specification
Product No.
FF-FTB8G
Dimension(LxWxH)
192 * 135 * 48mm
Cable entries
Inlet port: 2 ports Outlet port: 8 ports, 2*3mm drop cable or indoor cable
Installation Dimension
178*88MM
Material
ABS FR
PLC splitter
1*4,1*8,1*12 ,1*16 Mini Steel Tube/ bare type PLC splitter
