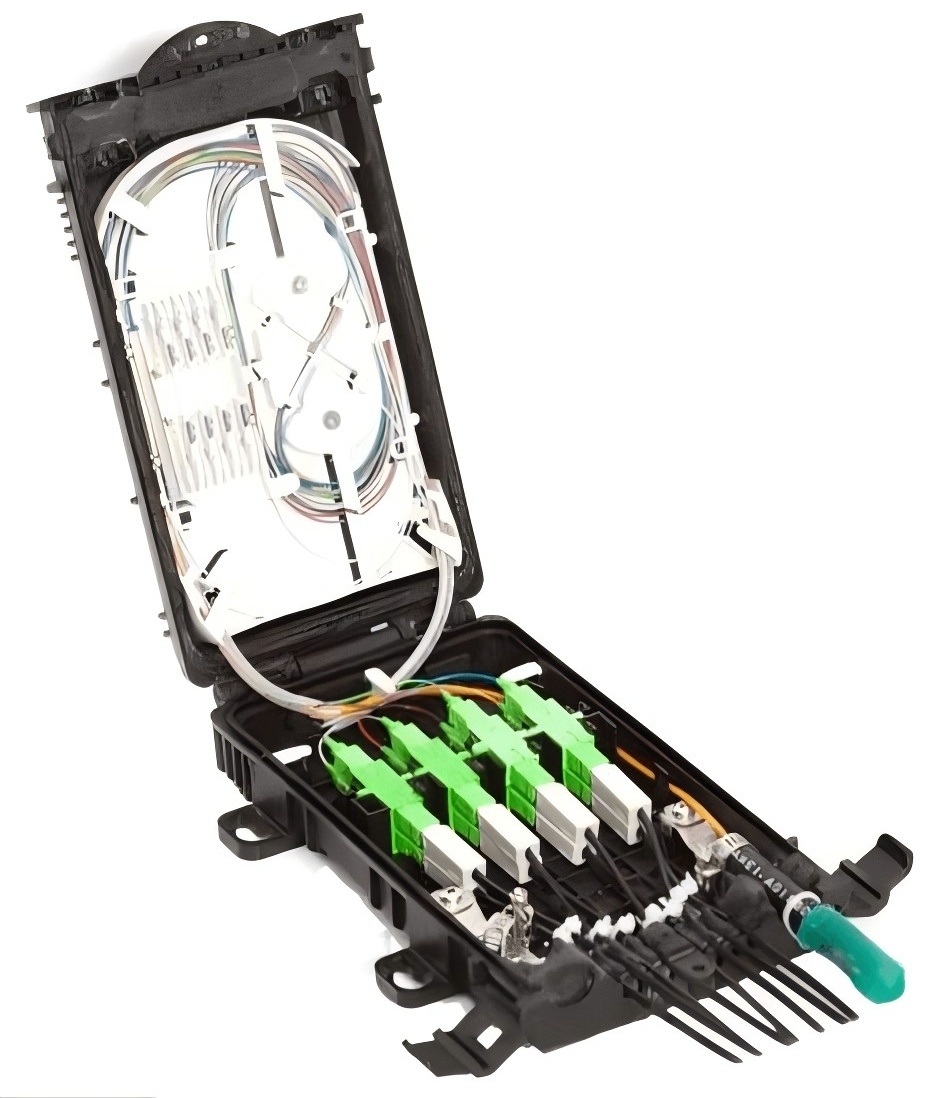

FF-FTB8J Fiber Drop Closure for Fiber Access Terminal is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FF-FTB8J Fiber Drop Closure for Fiber Access Terminal has 2 main cable ports and 8 drop cable ports. The closure accommodates up to 12 fusion splices (or 8 mechanical splices), two PLC splitters and 8 SC adapters. Sealing is achieved via built-in gel technology,which can make sealing be extremely convenient re-entry and re-sealing.
Features
Gel sealing for excellent sealing and re-sealing performance
High-quality engineering material of PP with good mechanical strength, sturdiness, and durability
Make the Clamping for feeder cable and drop cable, fiber splicing, fixation, storage and distribution in one box
Standards
UL 94, Test for Flammability of Plastic Materials for Parts in Devices and Appliances
YD/T2150-2010 Optical fiber cable distribution box
Specification
Max. Capacity
SC: 8 fibers
Max. Inlet Cable Diameter
8~16mm
Inlet Cable Number
2pcs
Drop Cable Diameter
3mm round cable, 2×3m drop cable
Outlet Cable Number
8pcs
Protection Grade
IP67
Installation Method
Wall mounting and pole mounting (pole ring is optional)
Working Environment
Outdoor and indoor
Dimension (A*B*C)
220(H)*153(W)*52(D)mm
Working Temperature
-40°C~+65°C
Relative Humidity
0%~95% (+30°C)
Air Pressure
70~106KPa
Packing:
Packing: carton
Storage temperature: -20°C~+65°C
Storage humidity: 0%~95% (+30°C), no corrosive gases around
Transportation: avoid collisions, falls, rain and snow poured directly attack and daylight exposure.
