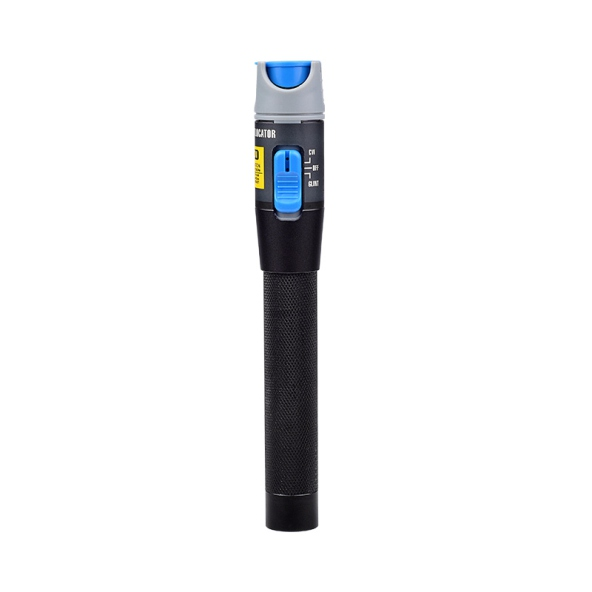

FF-VFL-C Visual Fault Locator totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator.
FF-VFL-C Visual Fault Locator is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point.
It is suitable for both single mode and multimode fibers. The performance of the visual fault locator will act a little different on different fiber coat and color.
Features
- Finding fiber breakpoint, poor connections, bending or cracking
- End-to-end visual fiber identification
- Constant & stable output power
- Long battery life
- Operates either in CW or Pulsed
- Pocket size and light weight
Specification
| model |
FF-VFL-C5 |
FF-VFL-C15 |
FF-VFL-C20 |
FF-VFL-C30 |
| wavelength |
650nm |
| emitter type |
FP-LD |
| output power |
5mW |
15mW |
20mW |
30mW |
| detecting range |
5km |
10km |
16km |
20km |
| Optical Connector |
2.5mm universal connector, 1.25 adapter optional |
| Operating Mode |
CW/2Hz |
| Power Supply |
2 pcs of 1.5V AA batteries |
| Battery Life (CW) |
13 hours |
6 hours |
5 hours |
3 hours |
| Battery Life (2Hz) |
19 hours |
10 hours |
7 hours |
5 hours |
| working temperature |
-10oC~+60oC; <90%RH |
| storage temperature |
-20oC~+70oC; <90%RH |
| Dimension |
26 x 175mm |
| Weight |
170g (without battery) |
