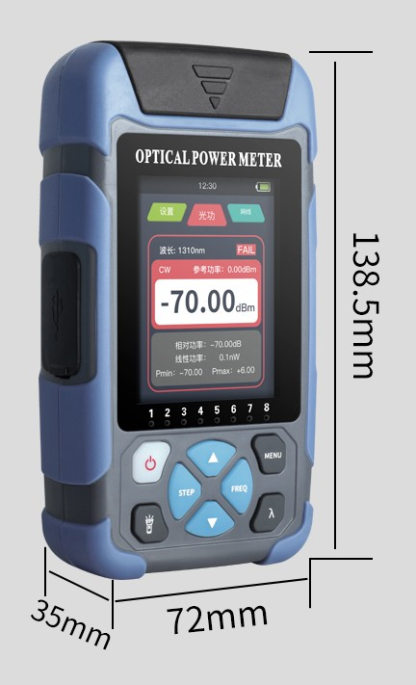

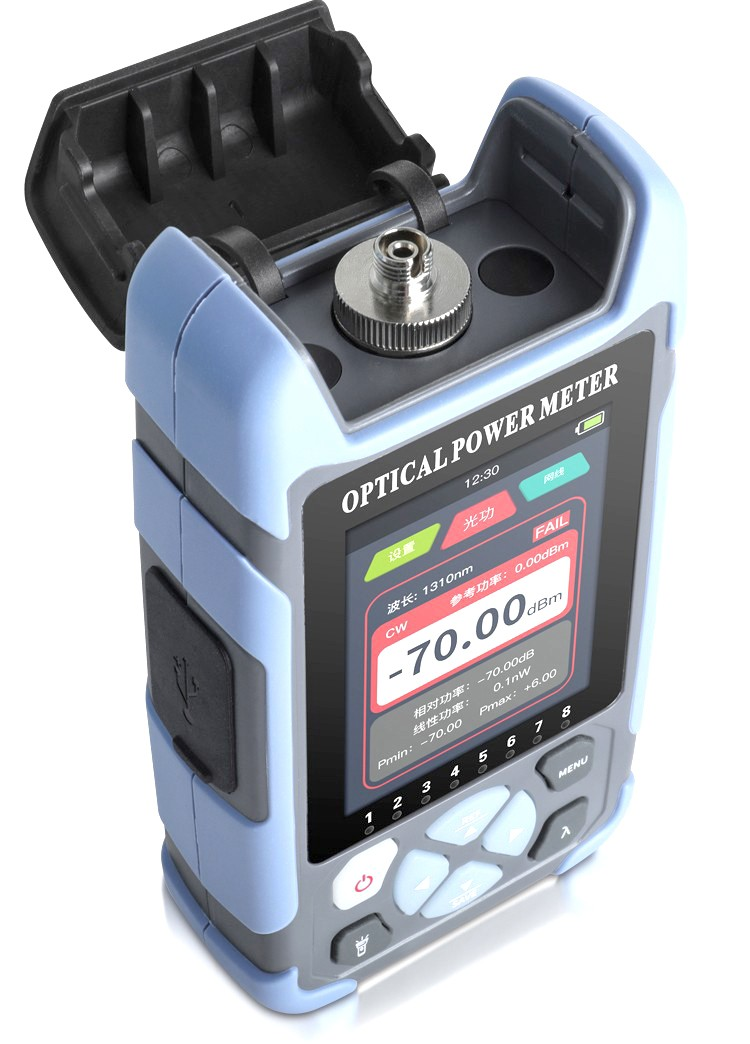

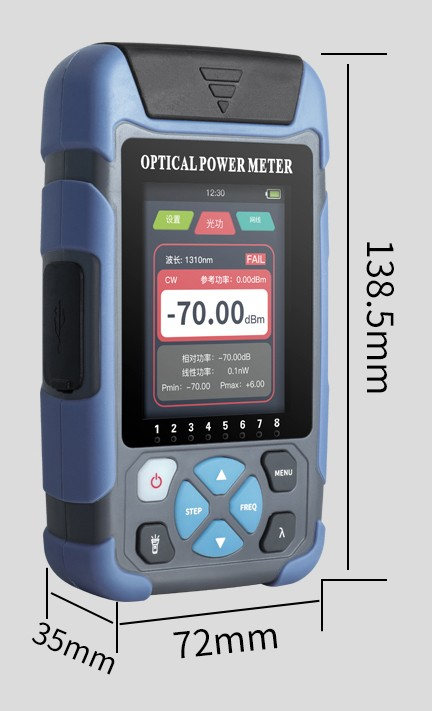

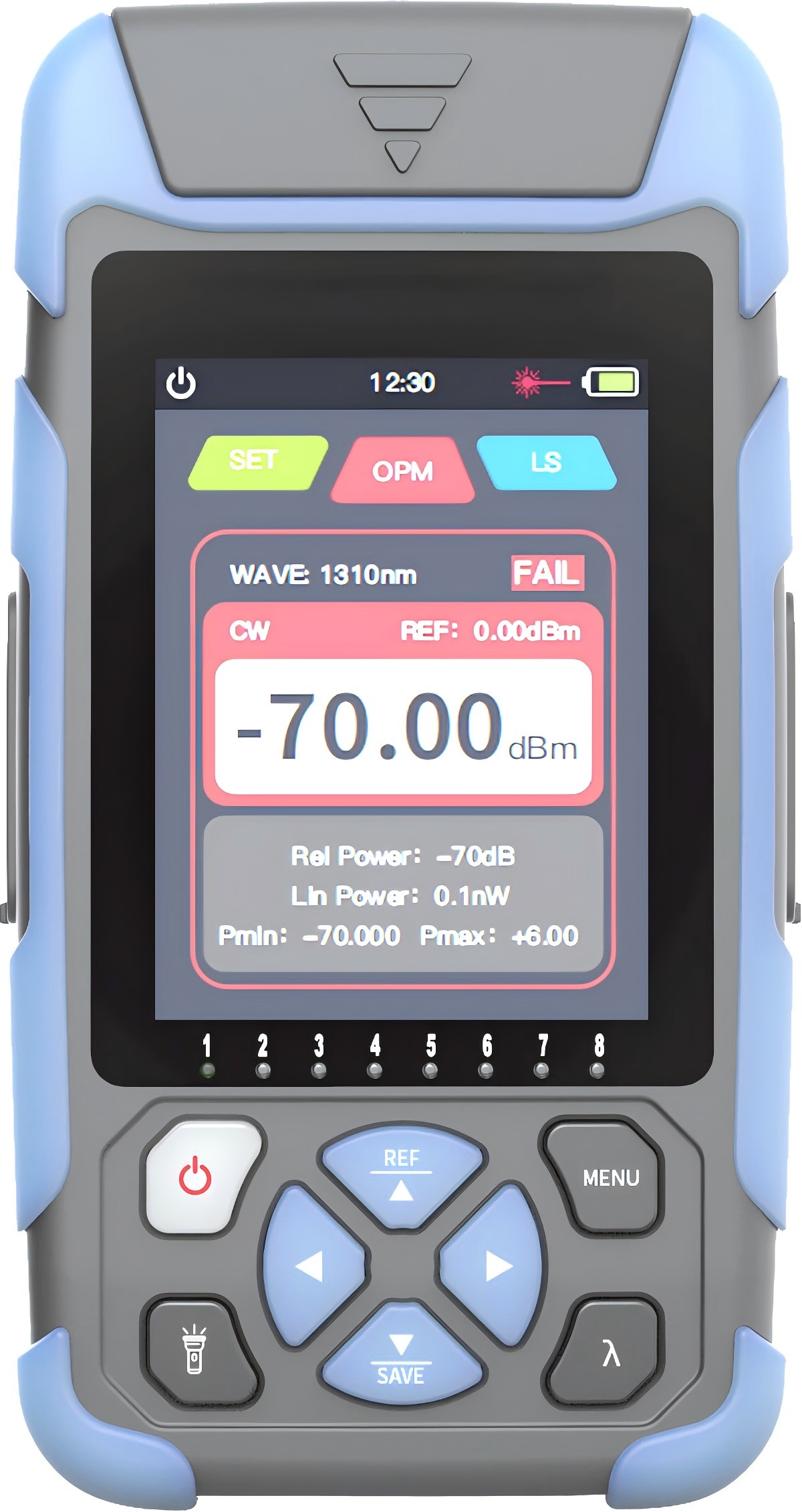

The 80H high performance optical multi meter is controlled by single chip microprocessor and displayed by true colorful LCD. Its shape is novel, and the design meets the requirements of Human Engineering. The 80H adopts advanced thermoplastic molding technology which is beautiful and durable. The 80H is with many optional functions, such as Optical Power Meter, Light Source, Visible Fault Location, Variable Optical Attenuator, RJ45 Sequence/Cable Tracking, Laser Ranging and flashlight. They are mainly used for continuous optical signal power measurement, optical fiber link loss test and optical fiber line on-off test. The 80H widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, Optical CATV and other fields.
Features > 1mm Supper Large Photosensitive detector > Save and Upload Testing Results > Wide Testing Wavelength Range > Automatic Frequency Identifification > Automatic Wavelength Recognition
Model
Function
Configuration
80H-01
Optical Power Meter
-70 to +10dBm
80H-02
Optical Power Meter
-50 to +26dBm
80H-03
Optical Power Meter + Visual Fault Locator
-70 to +10dBm, 10mW
80H-04
Optical Power Meter + Visual Fault Locator
-50 to +26dBm, 10mW
80H-05
Light Source
1310/1550nm
80H-06
Light Source
850/1300nm
80H-07
Light Source
1310/1490/1550nm
80H-08
Light Source
850/1300/1310/1550nm
80H-09
Light Source + Visual Fault Locator
1310/1550nm, 10mW
80H-10
Light Source + Optical Power Meter
1310/1550nm, -70 to +10dBm
80H-11
Light Source + Optical Power Meter
1310/1550nm, -50 to +26dBm
80H-12
Light Source + Optical Power Meter + Visual Fault Locator
1310/1550nm, -70 to +10dBm, 10mW
80H-13
Light Source + Optical Power Meter + Visual Fault Locator
