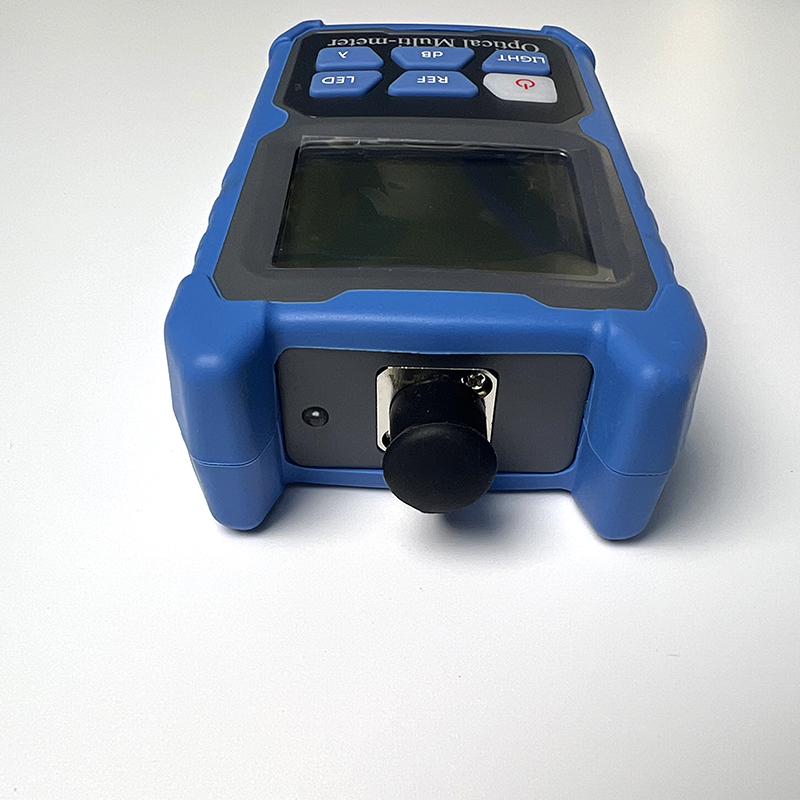

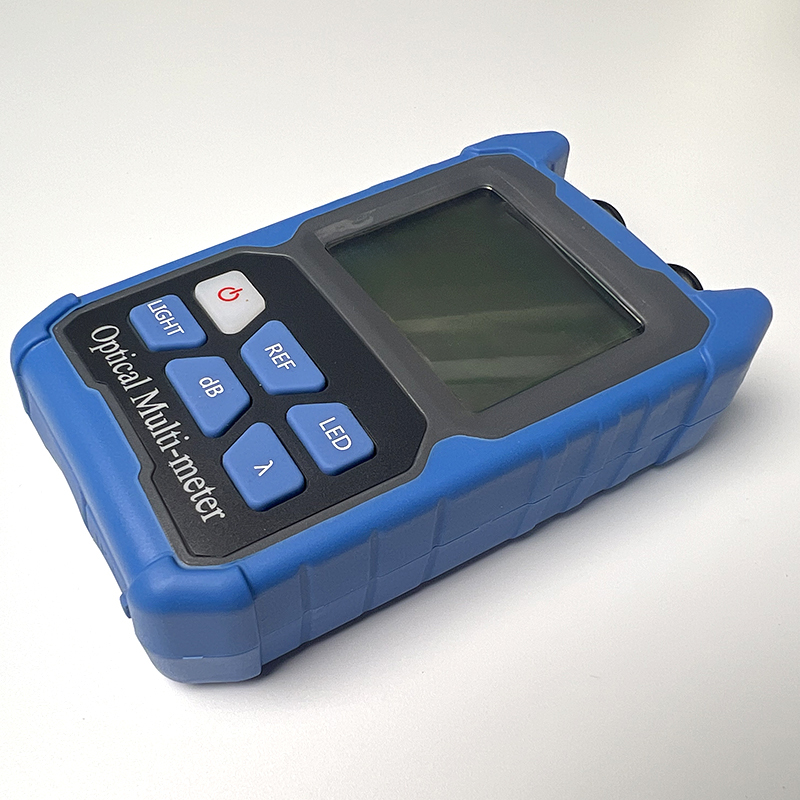

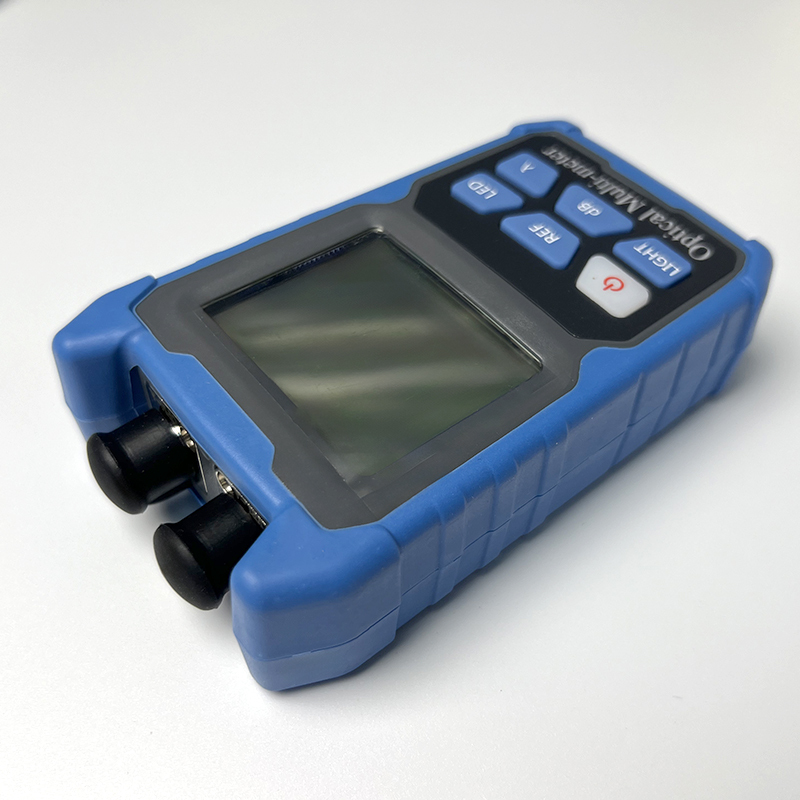

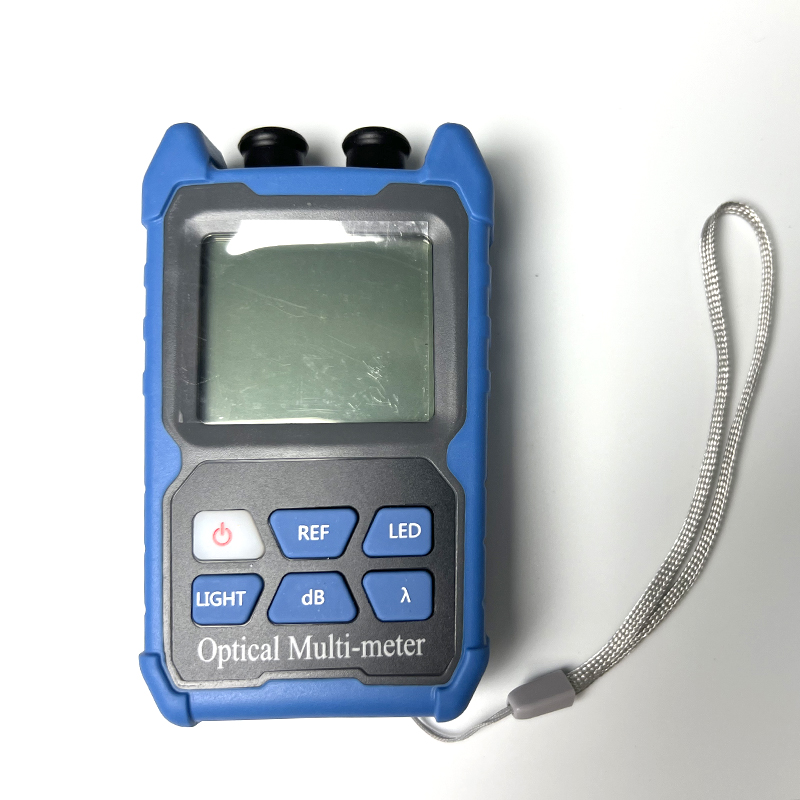

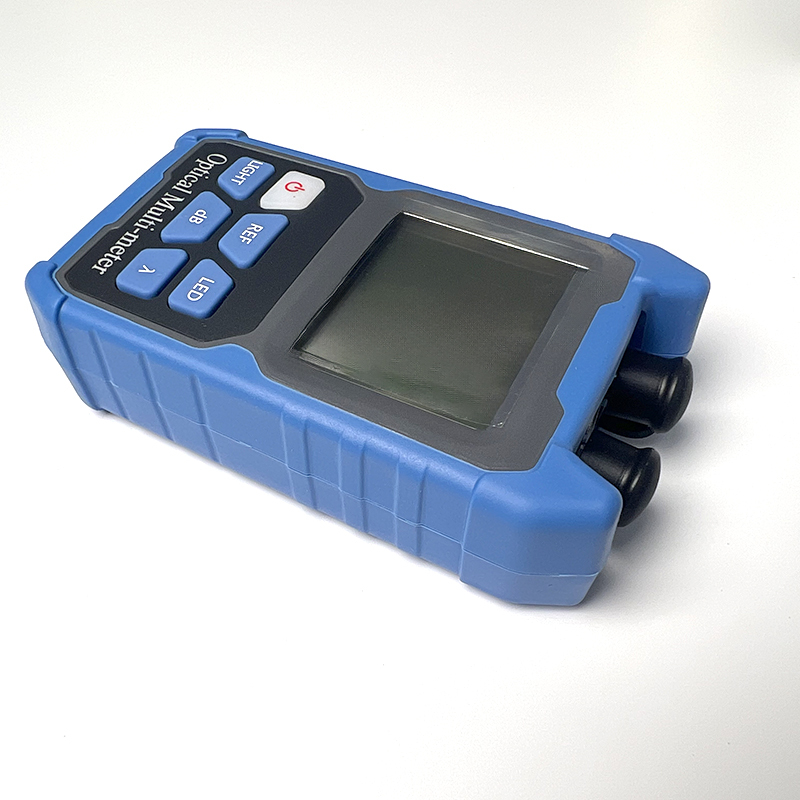

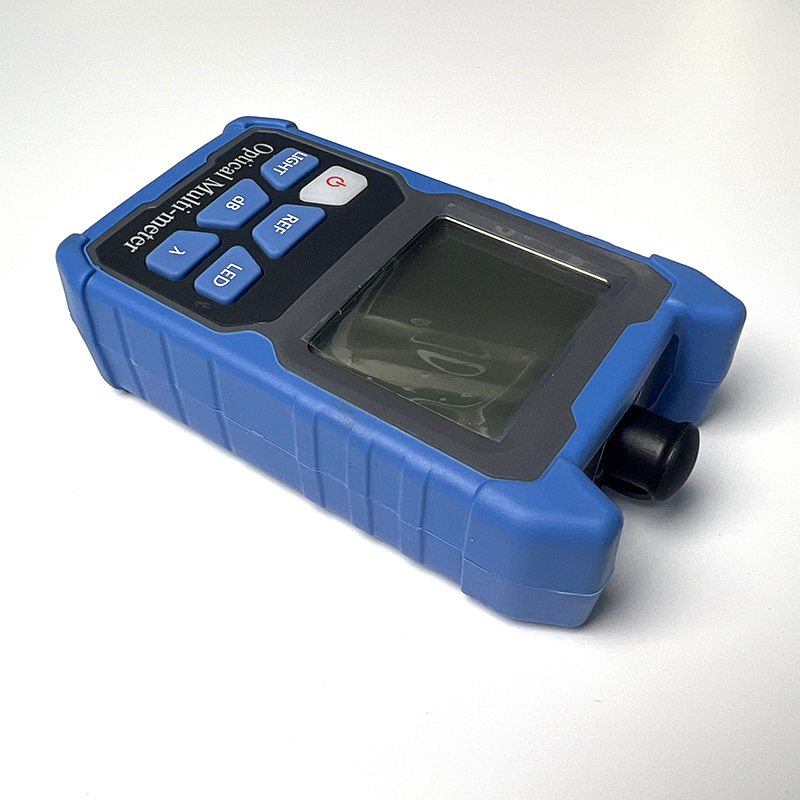

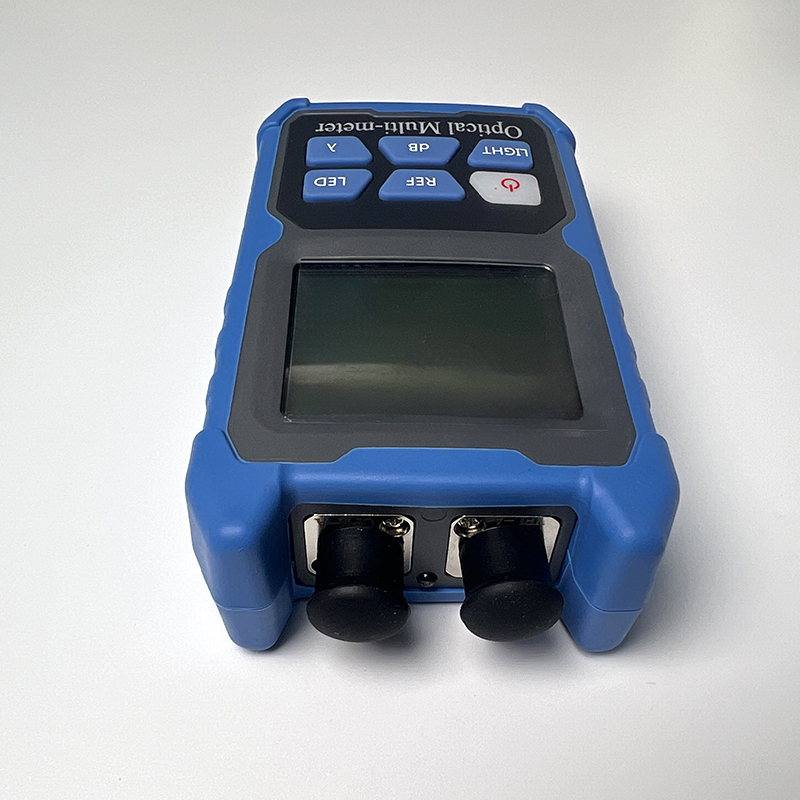

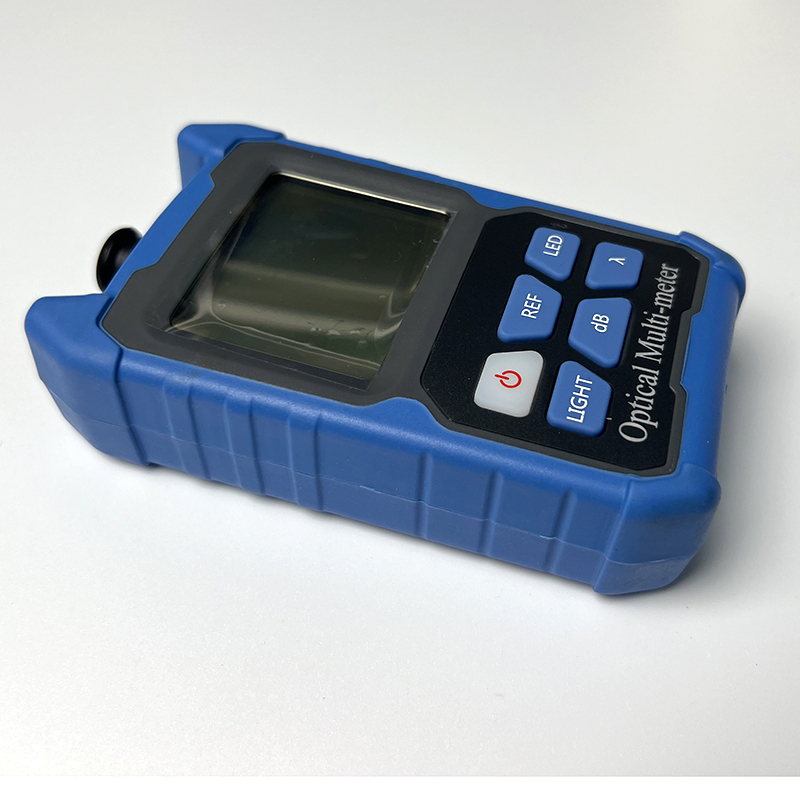

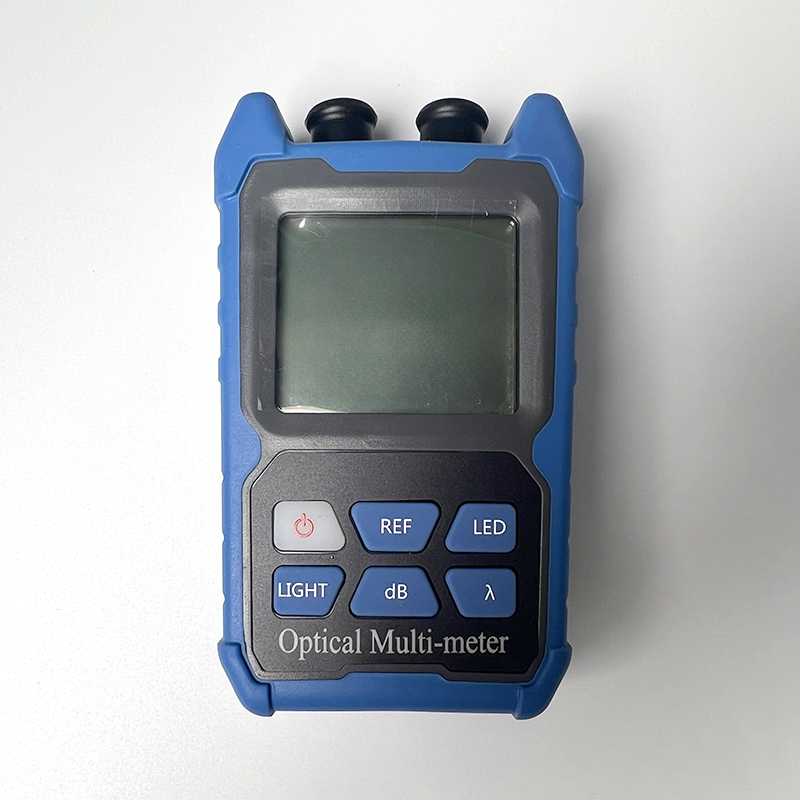

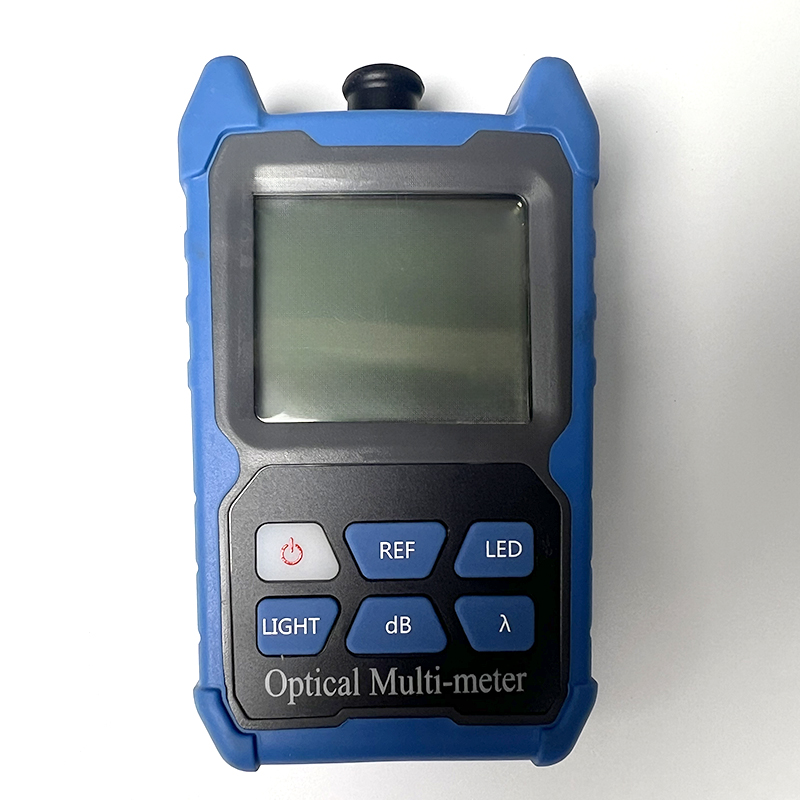

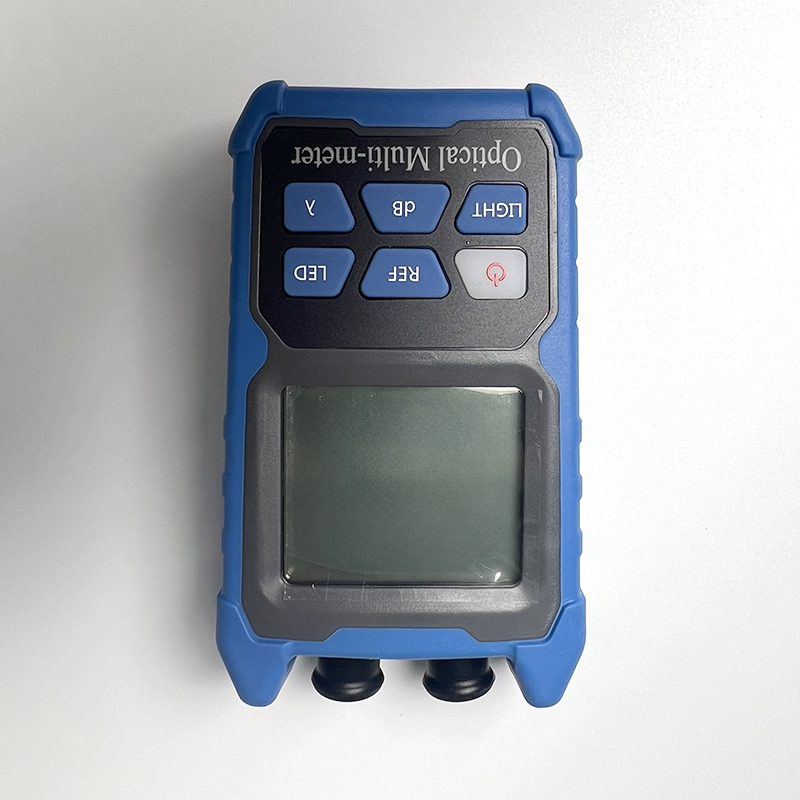

Optical Power Meter OPM Visual Fault Locator RJ45 Cable Sequence Test Optical Fiber Multimeter

$5.00 USD
Shipping calculated at checkout.
Model
Quantity
Inventory: 50 remaining available

The Optical Power Meter
1) Support Background Light on/off
2) Support Auto Shut Down to Save Power
3) dBm/mW Simultenously Display
4) Users can calibrate it
5) 2.5mm universal connector for FC/SC/LC Connectors
6) Compact apperance, easy to carry

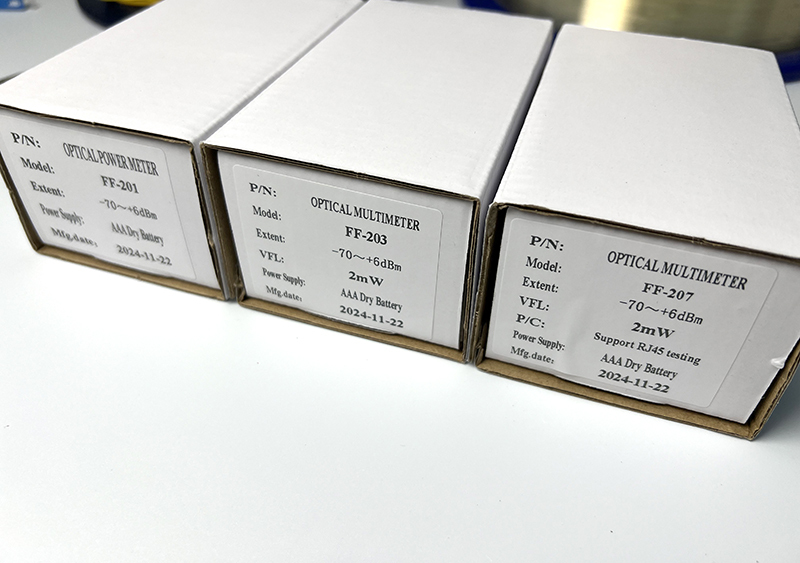

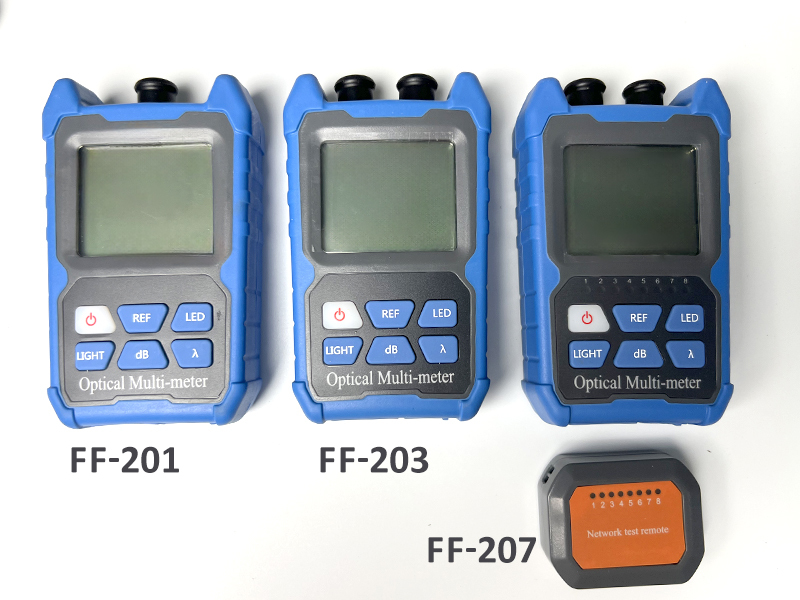

Model Functions
FF-201 OPM
FF-203 OPM and VFL

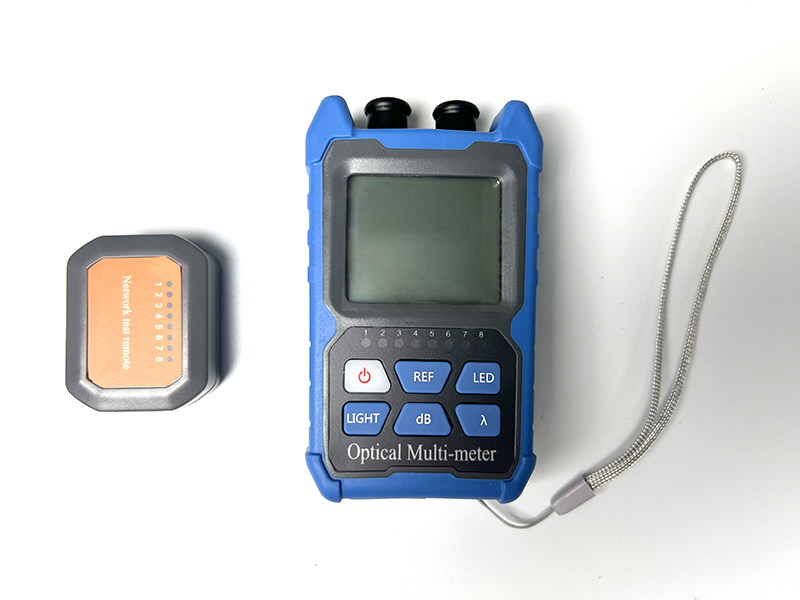

FF-207 OPM VFL and RJ45 Cable Sequence



OPM
Wavelength Range 800nm to 1700nm
Connector 2.5mm Universal Connector
Detector Type InGaAs
Power Range -70 to +6dBm
Uncertainty <5%
Calibrated Wavelength 850/980/1300/1310/1490/1550/1625/1650nm
Display Resolution Linear Resolution 0.1%
Logarithmic Resolution 0.01dBm
VFL
Wavelength 650nm
Output Power 2mW
Mode CW/1Hz/2Hz
Connector 2.5mm Universal
RJ45 Cable Sequence Test
Cable Length <300m
Remote Unit Yes
General
Power Supply AAA Battery
Auto Shutdown 10 mins
Operation Temperature -10 to +50dBm
Storage Temperature -40 to +70dBm
Relative Humidity 0 ~ 95% no condensing
Size 112x66x30mm
