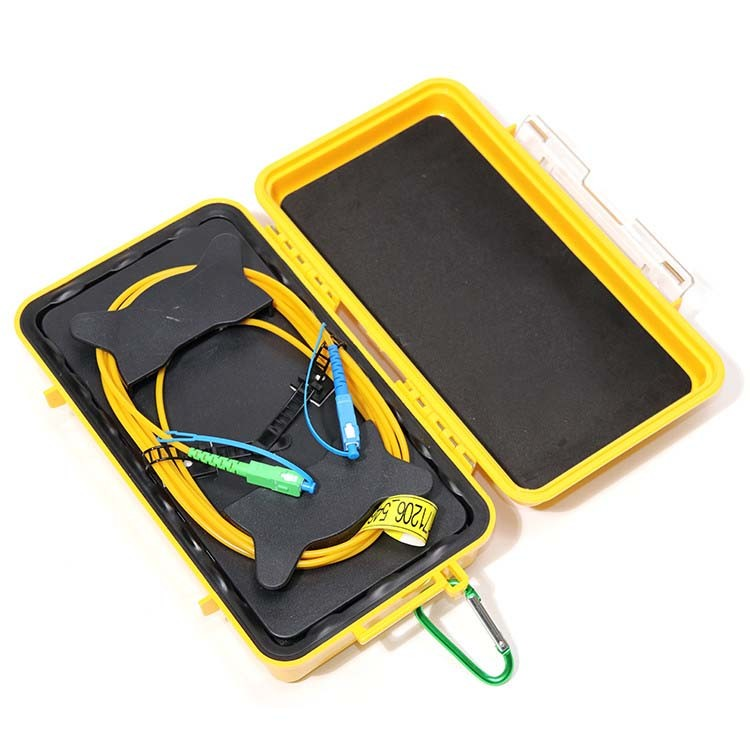

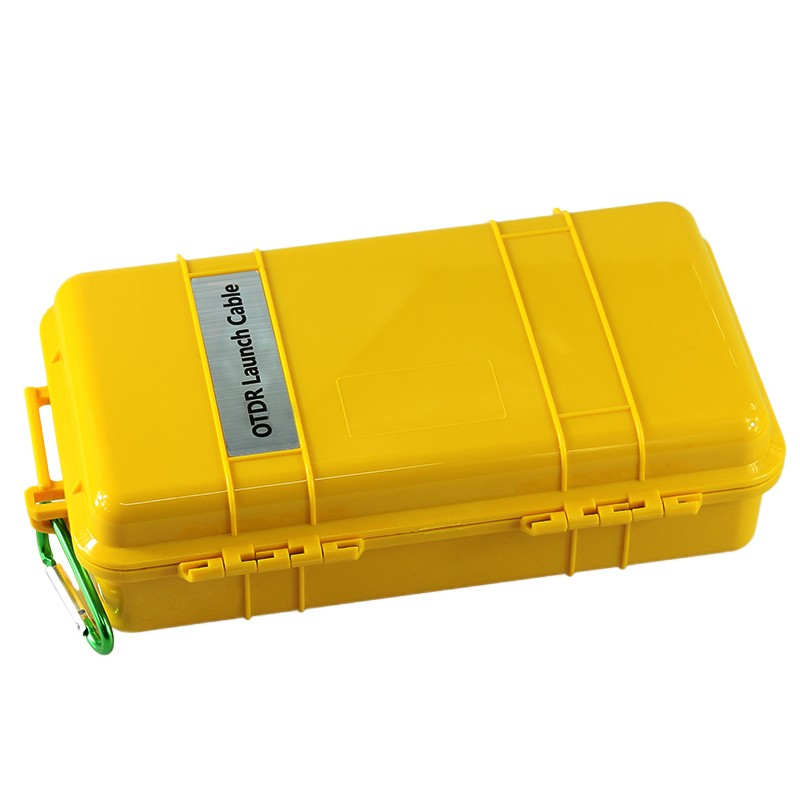

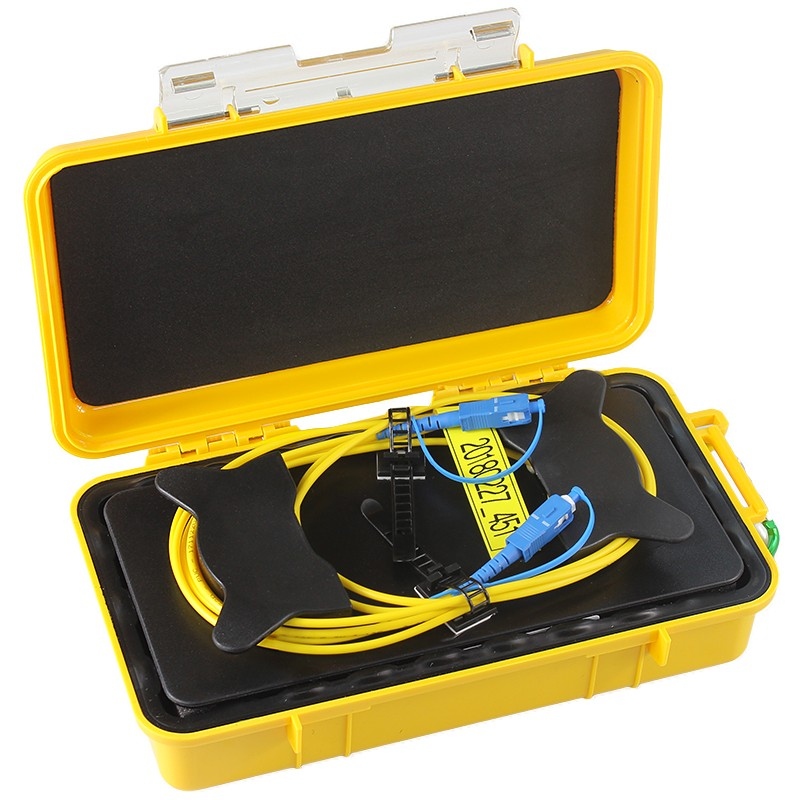

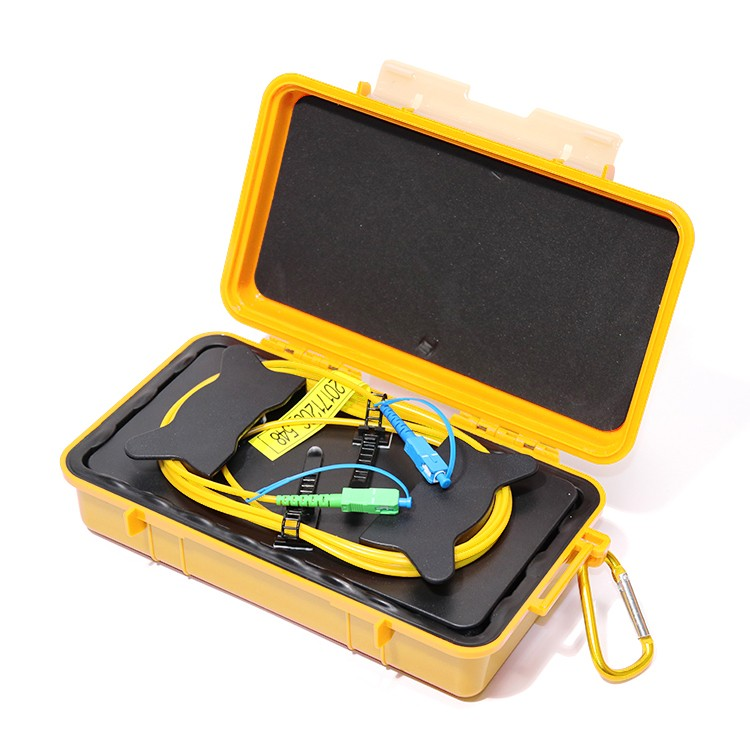

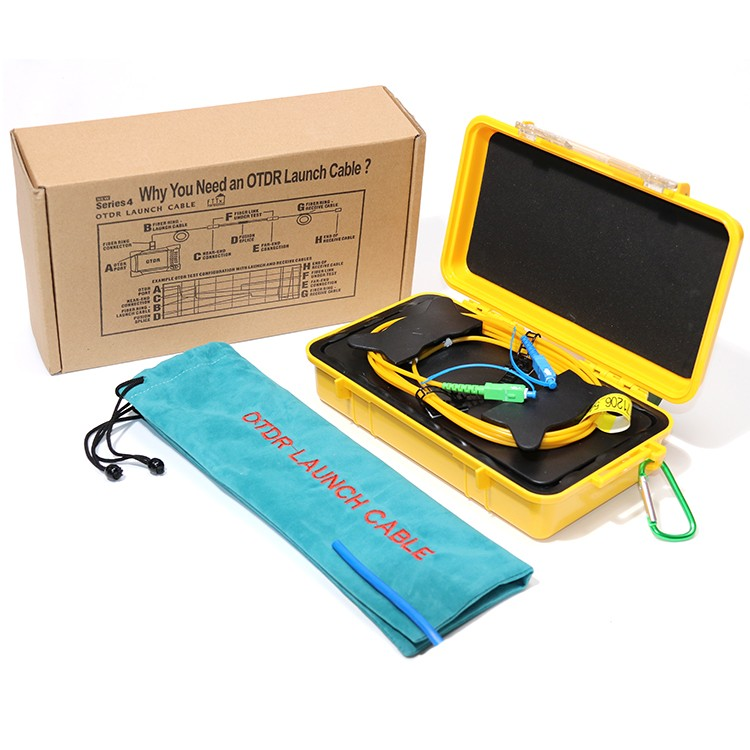

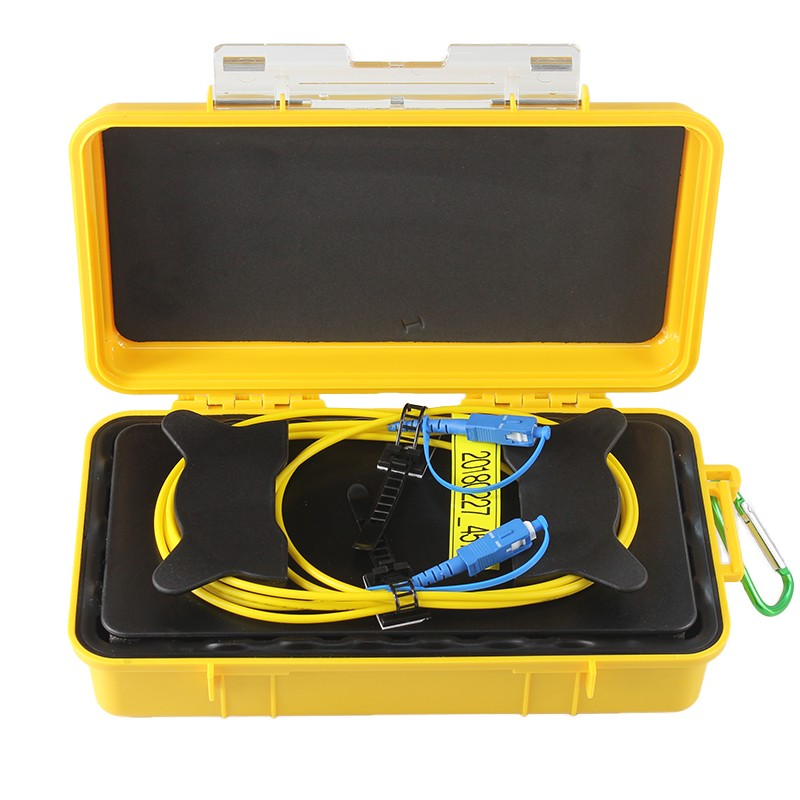

SC/FC/LC connectors are selectable as well as the UPC and APC polishing mode.Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.
Mechanical & Environmental Characteristics
Dimension
23.8cmx 14.1cm x 6.7cm
Material
SR Polypropylene
Color
Yellow
Weight
0.75kg
Packaging
Rugged, hard-shell transit case
Storage Temperature
-40℃ to +85℃
Operating Temperature
-40℃ to +85℃
Humidity
0 to 95%, non-condensing
Fiber & Connector Characteristics
Fiber Types
G652D, G657A, OM1, OM2, OM3, OM4
Fiber Length (m)
500/1000/2000m
Typical Loss
<0.5dB @ 1310 for 1000 meters
Connector Type
SC/LC/FC/ST
Polish
UPC/APC
Return Loss*
UPC>=50dB, APC>=60dB, PC>=35dB
Repeatability (dB)
<=0.2 (1000 times)
Exchangeability (dB)
<=0.2
Feature & Application
- Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration - Compound Latch for positive seal and easy opening with locking feature. - Non-metal construction will not dent, corrode, or conduce electricity - Water and dust proof allowing the unit to be taken into almost any environmen - Auto Purge Valve for changes in altitude and temperature
