Operating temperature and humidity: -10oC~+50oC, ≤95% (non-condensation)
Storage temperature and humidity: -40oC~+70oC, ≤95% (non-condensation)

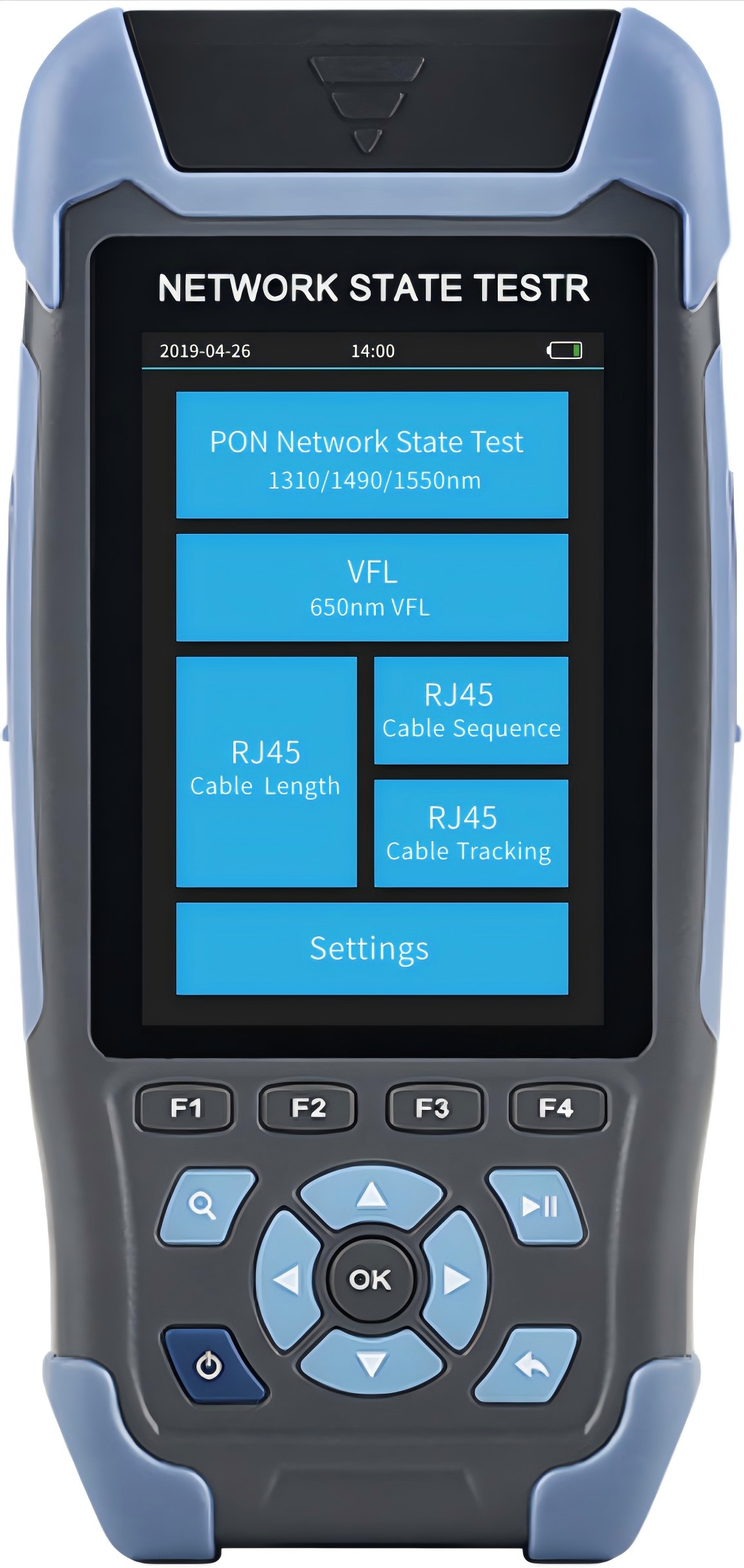

Network State Tester
ONT States
Online, Offline, ONT Fatal, ONT Bad, ONT No Power, Fiber Fall Off
Insertion Loss
<1.5dB
Connector
FC/SC/ST
PON Power Meter
Testing Range
-35 to +10dBm @1310nm (upstream)
-40 to +12dBm @1450nm (Downstream)
-40 to +25dBm @1550nm (Downstream)
Unit
mW/uW/nW/dBm/dB (REF)
Accuracy
0.5dB
Resolution
0.01dB
Visual Fault Locator
Wavelength
650nm
Output Power
10mw, CLASSIII B
Range
12km
Launching Mode
CW/1Hz/2Hz
Adapter Type
2.5mm Universal Adapter for FC SC ST Connectors
Rj45 Cable Tracking
Range
300m
Signal Type
Analog signal/Digital Signal
Signal Receiver
Optional
Warning Sound
Support
Cable Type
568A, 568B
Rj45 Cable Sequeence
Range
300m
Signal Type
Analog Signal/Digital Signal
Active Cable Test
Not Support
Testing Time
Less Than 15 Seconds
Remote Unit
Can be took out from bottom of the device
Rj45 Cable Length
Range
300m
Signal Type
Analog signal/Digital Signal
Active Cable Test
Not Support
Testing Time
Less than 15 seconds
Why the tester is needed?
With the popularity of PON network and the blowout development of optical network terminals, telecom operators need to have a new method to check the occupation of resources on optical ports to reduce the waste of port resources.
By a kind of traditional manual checking is extremely complicated, inefficient, and will bring huge trouble to subscribers.
The PON terminal state tester can intelligently check the resource state of optical network terminal and intelligently analyze the ONT and PON network without maintenance personnel entering the subsriber’s house.
It is integrated with PON optical power meter, visual fault location, RJ45 cable sequence/length and digital cable tracker. The tester is an all-round helper in the field of current PON network maintenance and terminal resource checking
